Home >> Honda >> 2012 >> Odyssey EX >> Repair and Diagnosis >> Engine Performance >> System >> PGM-FI System >> MAF Sensor/IAT Sensor Replacement

MAF Sensor/IAT Sensor Replacement

  1. Disconnect the MAF sensor/IAT sensor 5P connector (A).

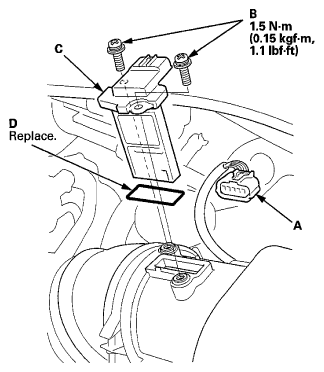

    Fig 1: MAF Sensor/IAT Sensor With Connector, O-Ring And Mounting Screw Torque Specification
    G06963914Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the screw (B).
  3. Remove the MAF sensor/IAT sensor (C).
  4. Install the parts in the reverse order of removal with a new O-ring (D).
