Power Relay Test: Notes
Special Tools Required

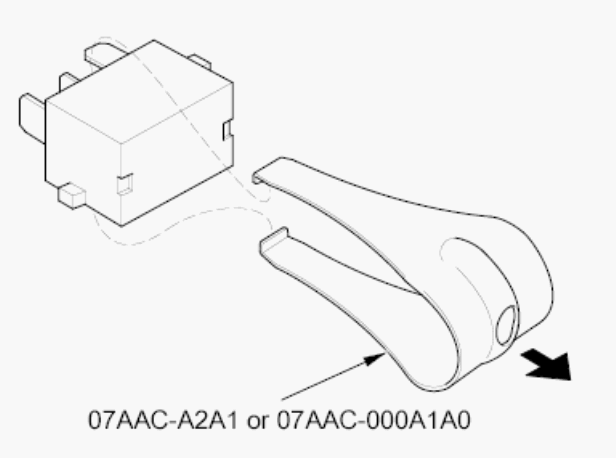

Relay Puller 07AAC-000A2A1 or 07AAC-000A1A0
Use this chart to identify the type of relay, then do the test listed for it.
NOTE:
For the turn signal/hazard relay input test (see TURN SIGNAL/HAZARD RELAY INPUT TEST
).
TURN SIGNAL/HAZARD RELAY REFERENCE CHART
| Relay | Test | ||||
|---|---|---|---|---|---|
| A/C compressor clutch relay (2) | Normally-open four-terminal type | ||||
| A/F sensor relay (2) | |||||
| Rear accessory power socket relay (2) | |||||
| Blower motor relay (2) | |||||
| A/C condenser fan relay | |||||
| Ignition coil relay (2) | |||||
| PGM-FI main relay 1 (FI MAIN) (2), 2 (FUEL PUMP) (2) | |||||
| Power window relay (2) | |||||
| Radiator fan relay | |||||
| Heated windshield wiper area relay (2) | |||||
| Seat heater relay (2) | |||||
| Cargo area light relay | |||||
| Fog light relay (1) | |||||
| Front accessory power socket relay | |||||
| VTM-4 relay | |||||
| ETCS control relay (2) | |||||
| Starter cut relay (2) | |||||
| Trailer lighting relay 1 | |||||
| Trailer lighting relay 2 | |||||
| Fan control relay | Five-terminal type | ||||
| Moonroof close relay | |||||
| Moonroof open relay | |||||
|
|||||
