Engine Mount Replacement

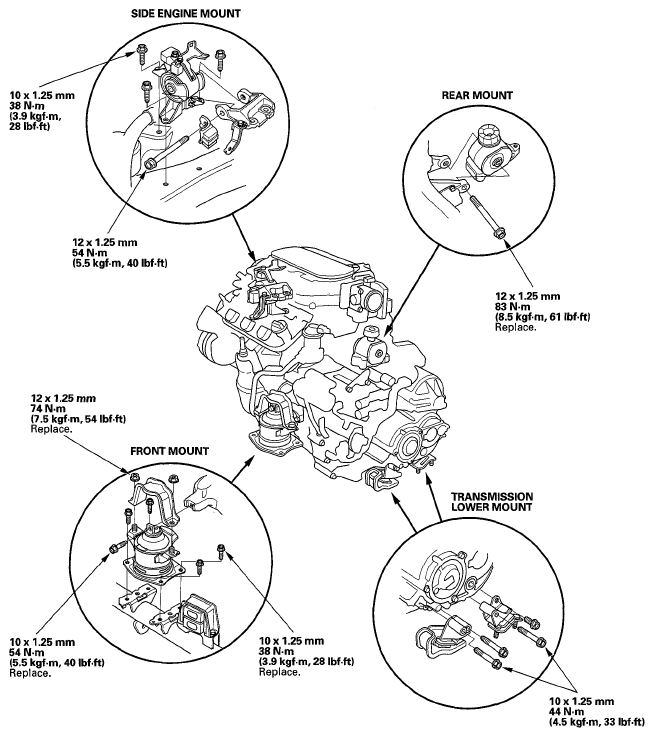

Fig 1: Engine Mount With Torque Specifications

G05963988

Courtesy of AMERICAN HONDA MOTOR CO., INC.
