Component Location Index

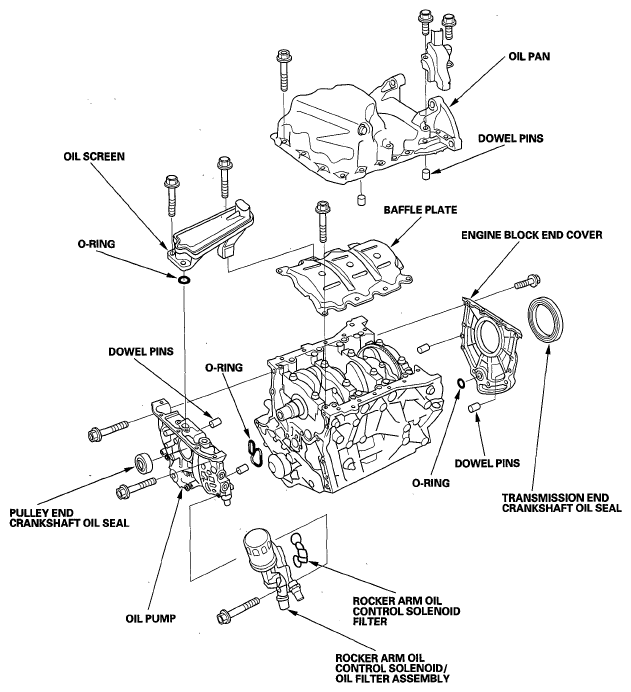

Fig 1: Identifying Engine Block Component Location (1 Of 3)
G05964155Courtesy of AMERICAN HONDA MOTOR CO., INC.

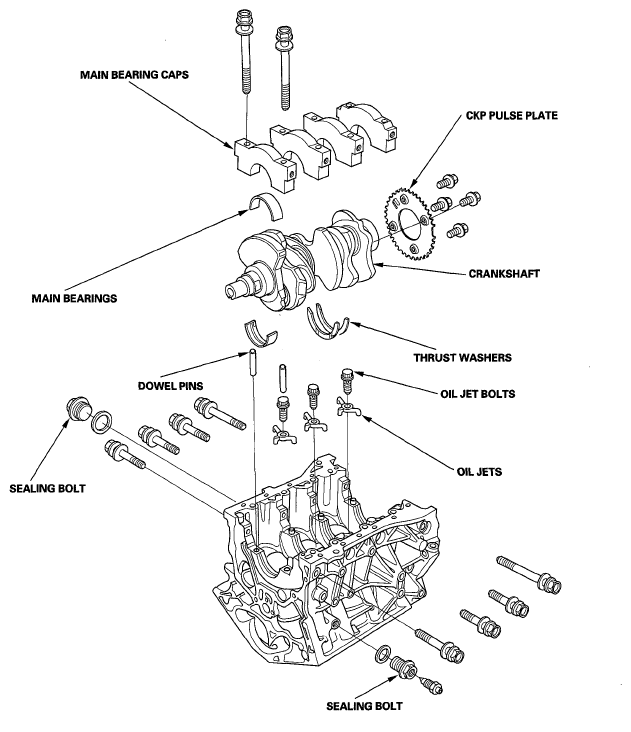

Fig 2: Identifying Engine Block Component Location (2 Of 3)
G05964156Courtesy of AMERICAN HONDA MOTOR CO., INC.

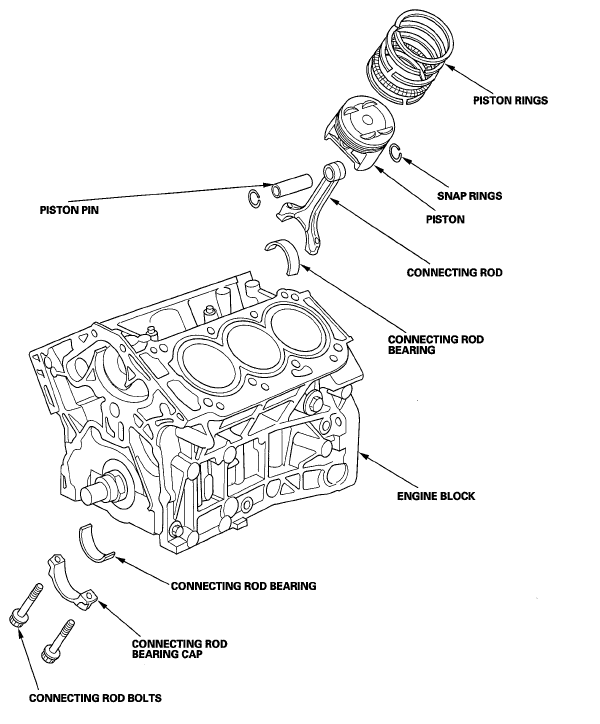

Fig 3: Identifying Engine Block Component Location (3 Of 3)
G05964157Courtesy of AMERICAN HONDA MOTOR CO., INC.
