DTC P2118: Throttle Actuator Current Range/Performance Problem
>>
Notes
DTC P2118: Throttle Actuator Current Range/Performance Problem: Notes

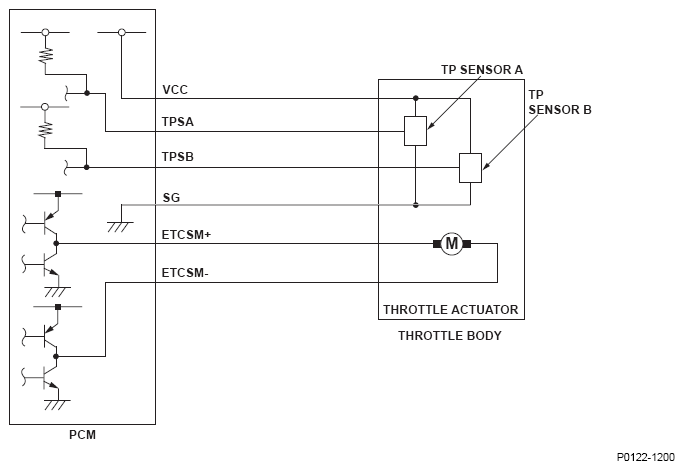

Fig 1: Throttle Actuator Current Range/Performance Problem - Wiring Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
