Home >> Honda >> 2012 >> Ridgeline RT >> Repair and Diagnosis >> Engine Performance >> System >> Intake Air System >> Accelerator Pedal Replacement

Accelerator Pedal Replacement

  1. Remove the throttle cable (A) from the accelerator pedal (B).
    NOTE: Do not get any silicone grease into the connectors or the switches.

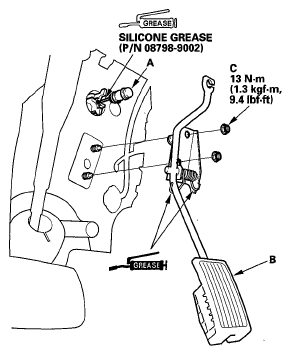

    Fig 1: Throttle Cable, Accelerator Pedal And Nut With Torque Specifications
    G05964732Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the nuts (C) and the accelerator pedal.
  3. Install the parts in the reverse order of removal.
