CKP Sensor Replacement

  1. Raise the vehicle on a lift (see LIFT AND SUPPORT POINTS ).
    NOTE: Make sure the vehicle is level, because engine oil will drip out when you remove the sensor.
  2. Remove the CKP sensor cover (A).

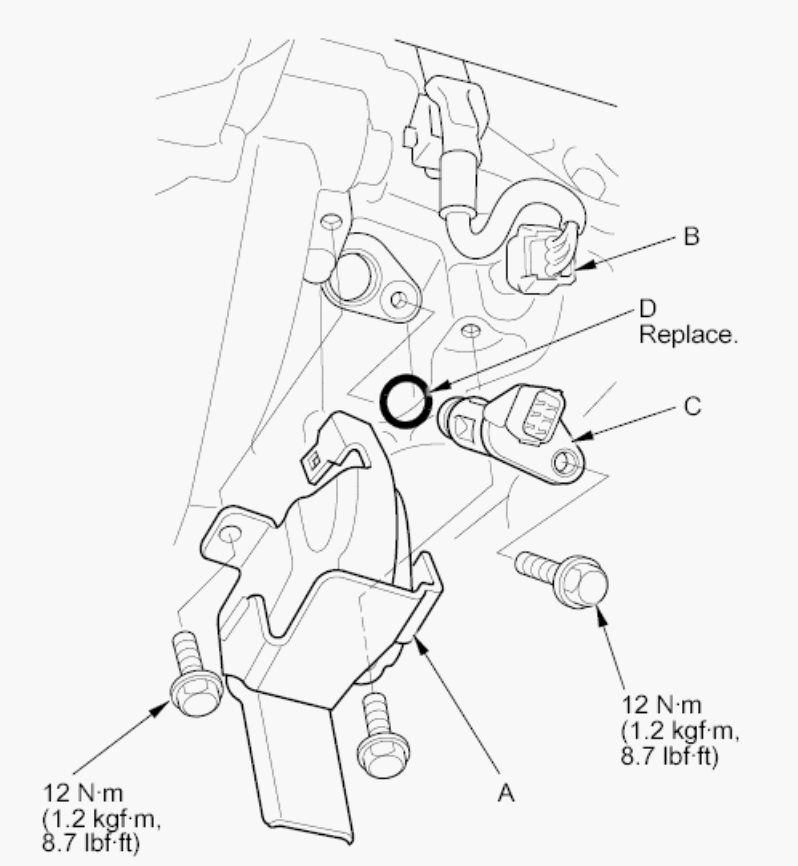

    Fig 1: CKP Sensor, Cover, Connector And O-Ring With Torque Specifications
    G00512324Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the CKP sensor connector (B).
  4. Remove the CKP sensor (C).
  5. Install the parts in the reverse order of removal with a new O-ring (D).
  6. Do the CKP pattern clear/CKP pattern learn procedure (see CKP PATTERN CLEAR/CKP PATTERN LEARN ).
