Component Location Index

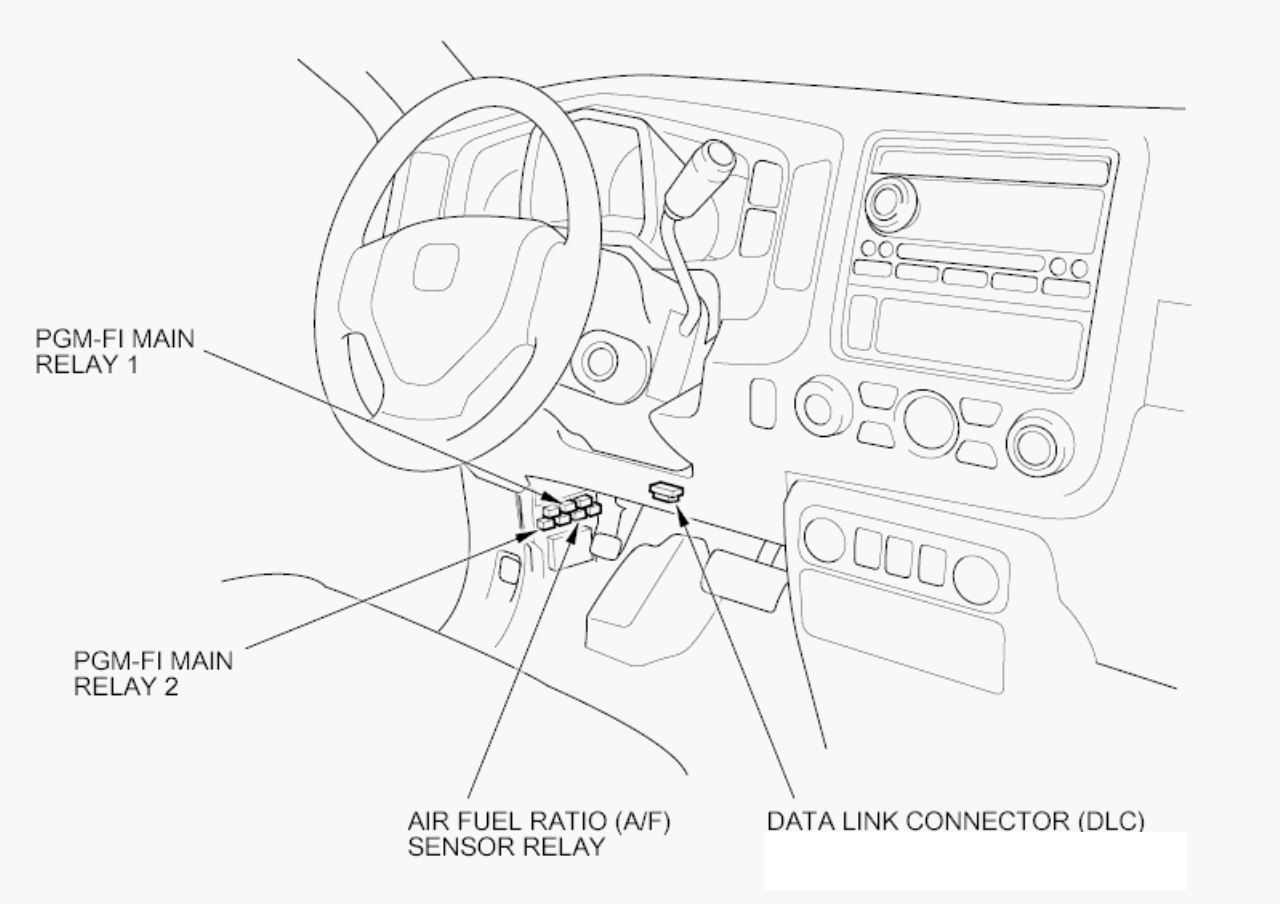

Fig 1: Identifying PGM-FI System Component Location (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

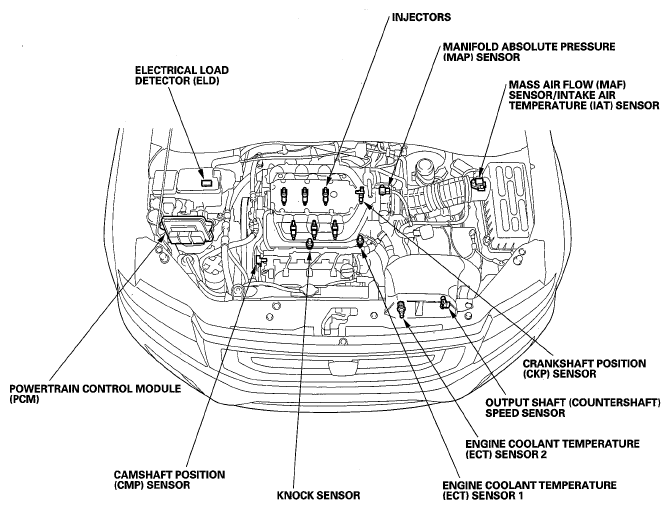

Fig 2: Identifying PGM-FI System Component Location (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

*1: '09 - 11 models

*2: '12 model

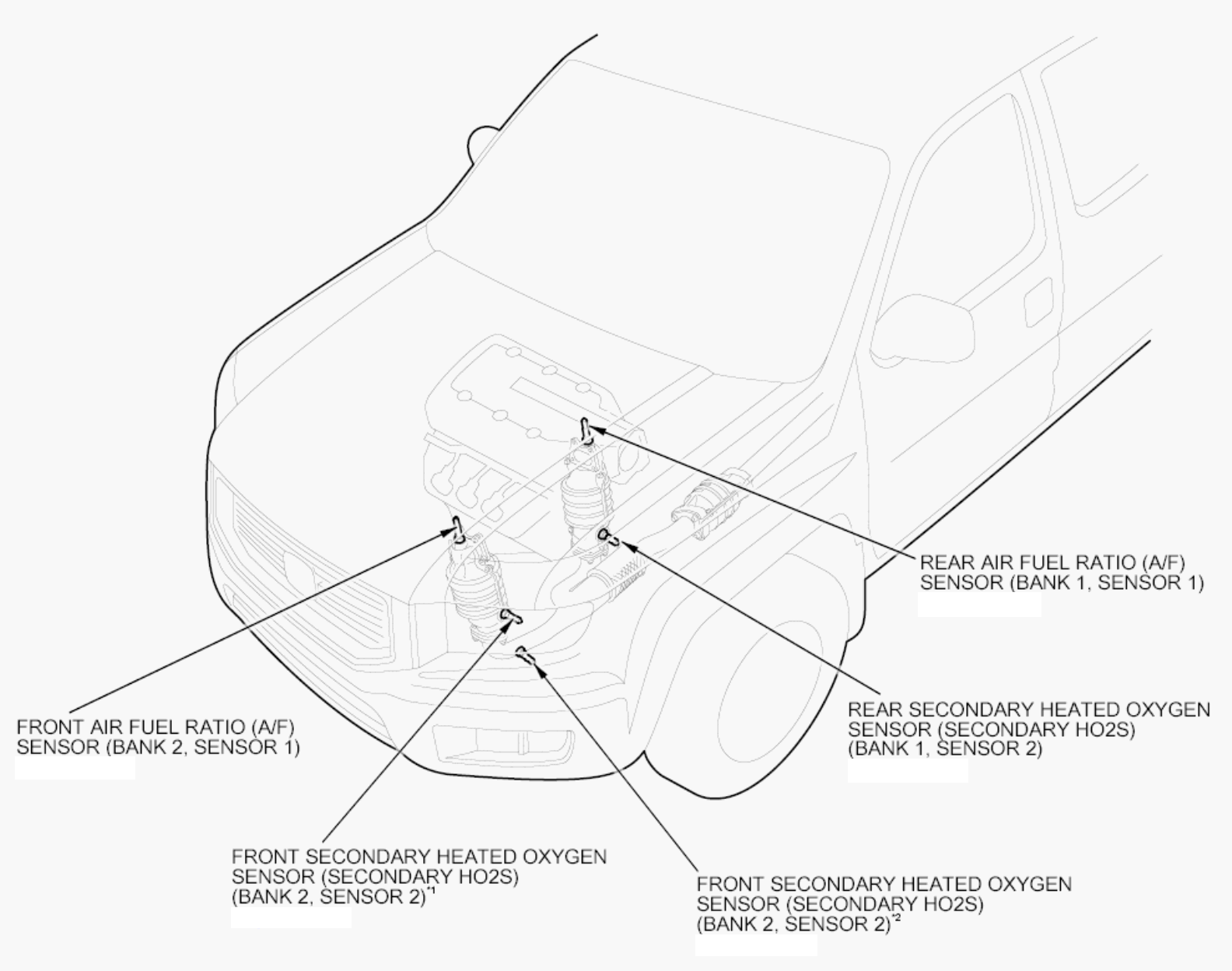

Fig 3: Identifying PGM-FI System Component Location (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
