Special Tools

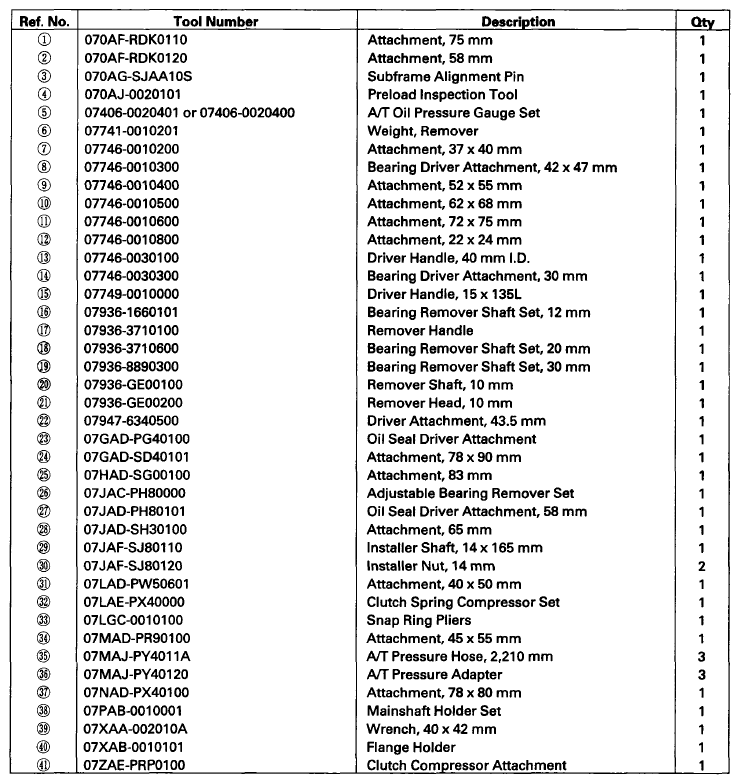

Fig 1: Special Tools Description Chart
G06628578Courtesy of AMERICAN HONDA MOTOR CO., INC.

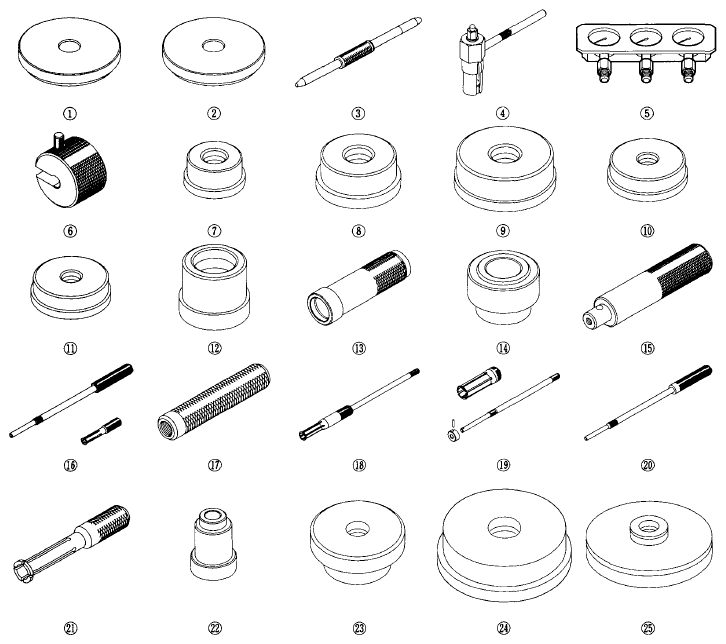

Fig 2: Identifying Special Tools (1 Of 2)
G06628579Courtesy of AMERICAN HONDA MOTOR CO., INC.

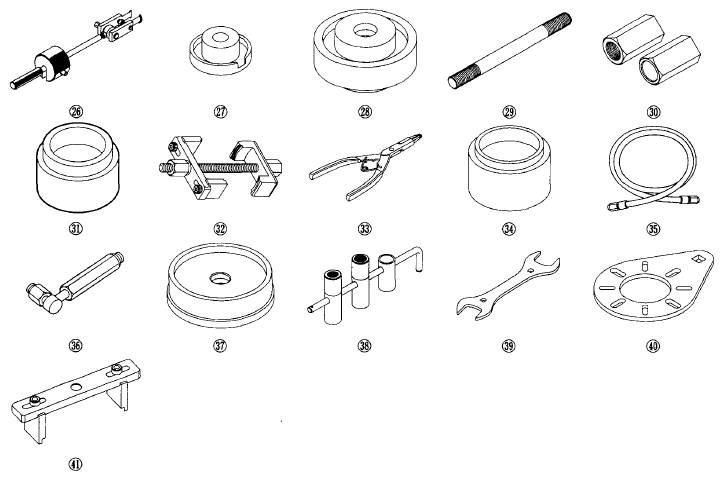

Fig 3: Identifying Special Tools (2 Of 2)
G06628580Courtesy of AMERICAN HONDA MOTOR CO., INC.
