Rocker Arm Oil Control Solenoid Replacement

  1. Disconnect the rocker arm oil control solenoid connector (A).

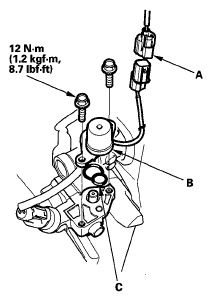

    Fig 1: Rocker Arm Oil Control Solenoid, Connector And O-Ring With Torque Specifications
    G05964627Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the rocker arm oil control solenoid (B).
  3. Install the parts in the reverse order of removal with a new O-ring (C).
