Component Location Index

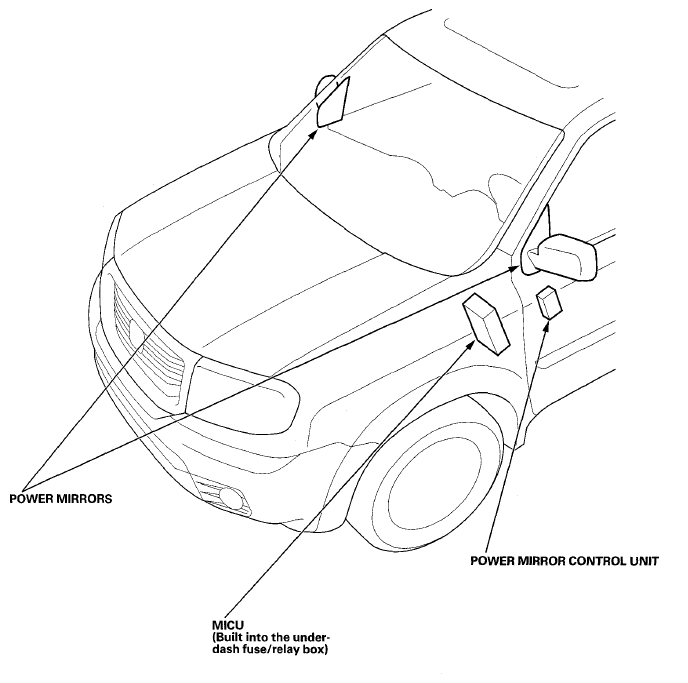

Fig 1: Identifying Driver Position Memory System Components Location (1 Of 2)
G08089342Courtesy of AMERICAN HONDA MOTOR CO., INC.

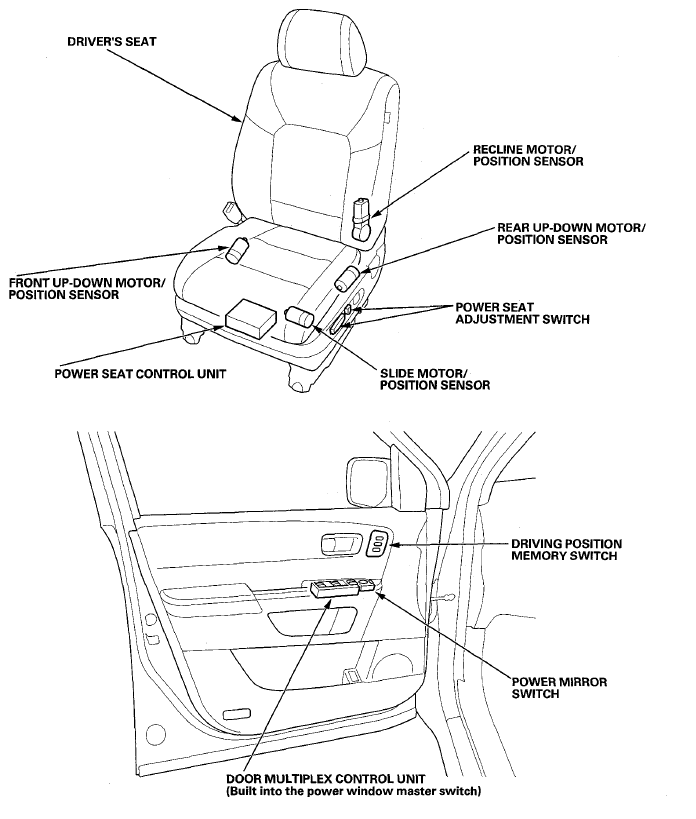

Fig 2: Identifying Driver Position Memory System Components Location (2 Of 2)
G08089343Courtesy of AMERICAN HONDA MOTOR CO., INC.
