Electrical Compass Unit Removal/Installation

Remove the headliner (see HEADLINER REMOVAL/INSTALLATION ).
Remove the Bolt (A), then disconnect the 6P connector (B) from the electrical compass unit (C).

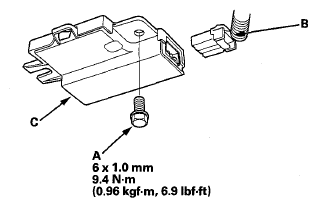

Fig 1: 6P Connector, Electrical Compass Unit And Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the electrical compass unit in the reverse order of removal.
NOTE: If you replaced the electrical compass unit, set the compass zone (see ELECTRICAL COMPASS ZONE SELECTION AND CALIBRATION ).
