Pilot EX, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Starter
>>
Starting System
>>
Component Location Index
Component Location Index

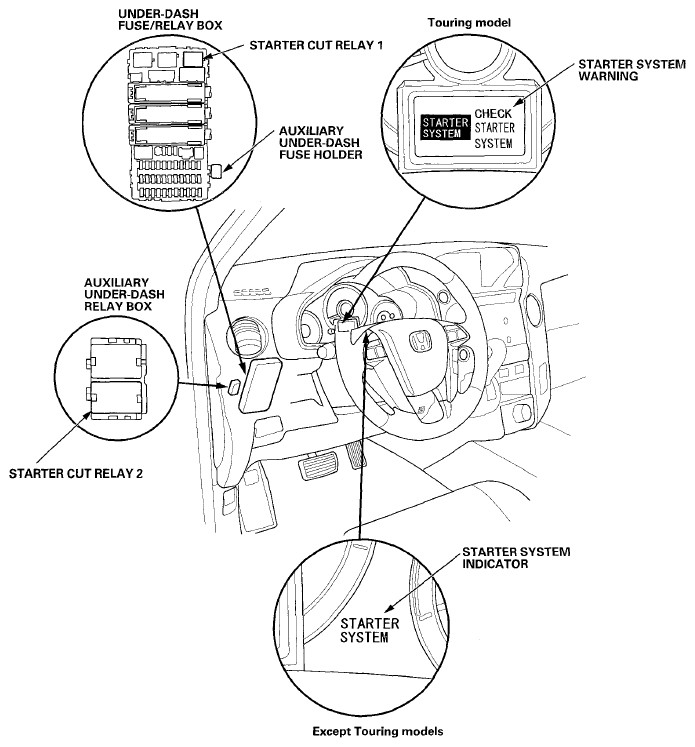

Fig 1: Starting System Component Location (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

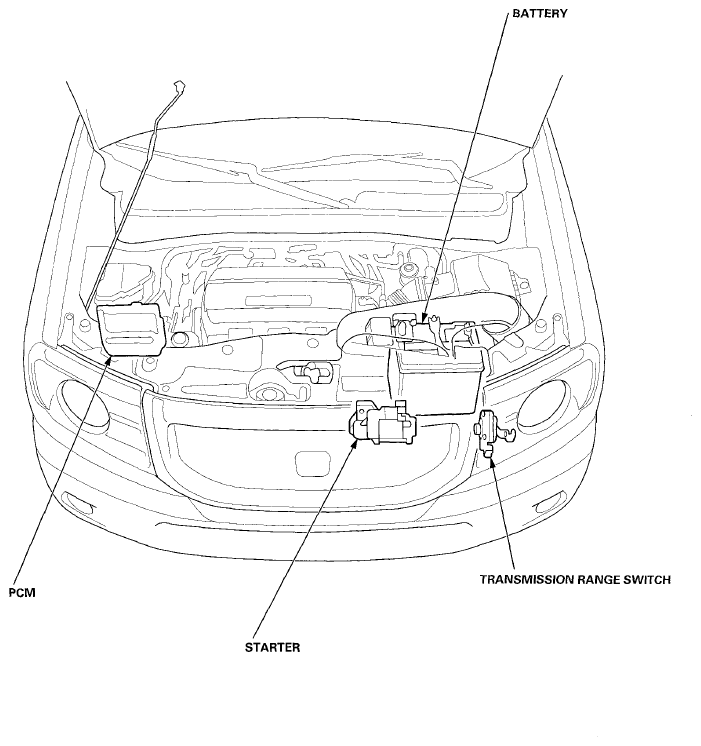

Fig 2: Starting System Component Location (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
