Home >> Honda >> 2014 >> Pilot EX, FWD >> Repair and Diagnosis >> Engine Performance >> System >> Advanced Diagnostics >> DTC P0731: 1st Gear Incorrect Ratio >> Notes

DTC P0731: 1st Gear Incorrect Ratio: Notes

Fig 1: 1st Gear Shifting Pattern
G08568884Courtesy of AMERICAN HONDA MOTOR CO., INC.

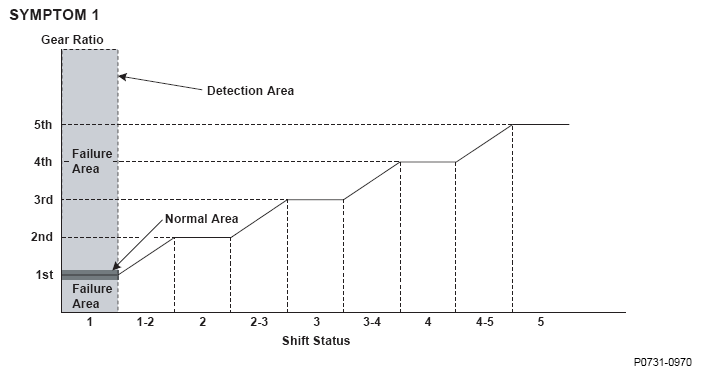

Fig 2: Gear Ratio Versus 1st Gear Shifting Status Graph (Symptom 1)
G08568885Courtesy of AMERICAN HONDA MOTOR CO., INC.

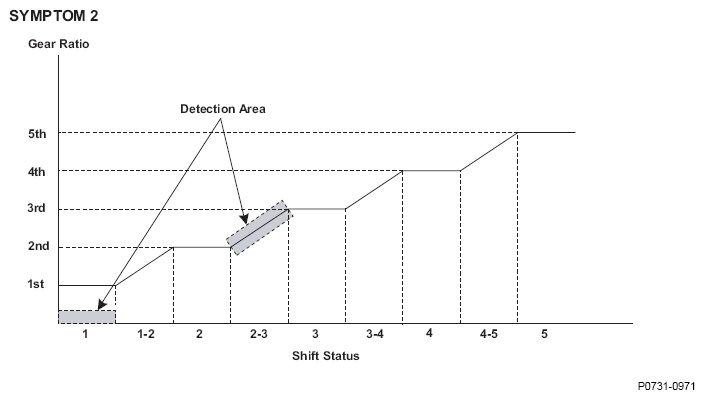

Fig 3: Gear Ratio Versus 1st Gear Shifting Status Graph (Symptom 2)
G08568886Courtesy of AMERICAN HONDA MOTOR CO., INC.
