Pilot EX, FWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Fuel Supply System
>>
Component Location Index
Component Location Index

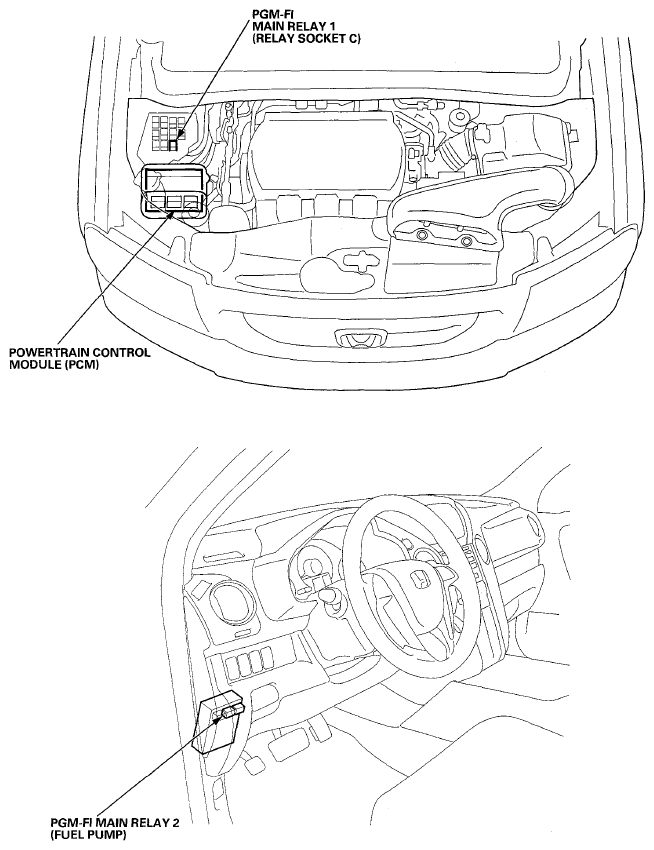

Fig 1: Fuel Supply System Component Location (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

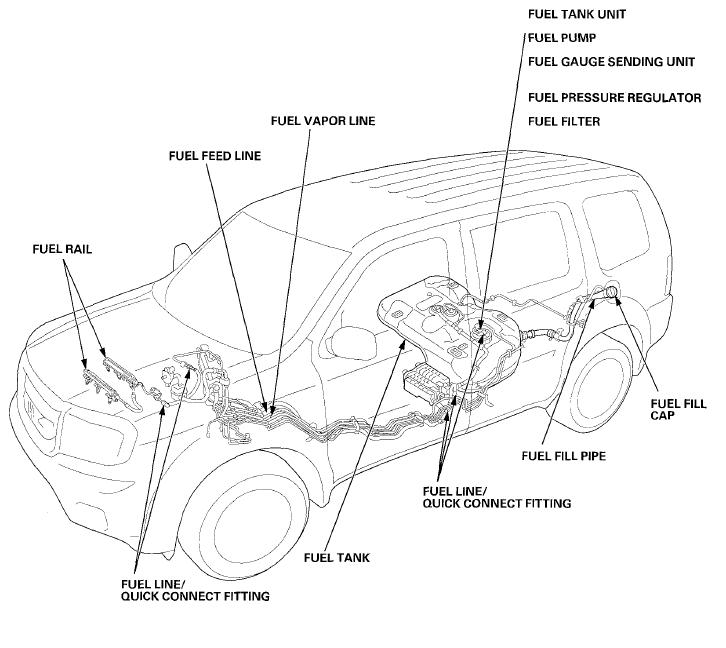

Fig 2: Fuel Supply System Component Location (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
