IMT Actuator Replacement

  1. Remove the engine cover (see step 1 under REMOVAL ).
  2. Disconnect the IMT actuator connector (A).

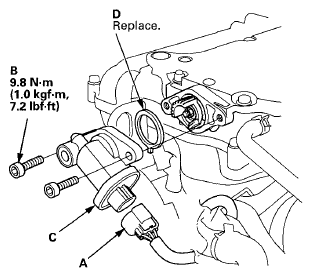

    Fig 1: IMT Actuator Replacement Components With Torque Specifications
    G08079449Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (B) and the IMT actuator (C).
  4. Install the parts in the reverse order of removal with a new O-ring (D).
