Knock Sensor Replacement

  1. Remove the intake manifold (see INTAKE MANIFOLD REMOVAL AND INSTALLATION ).
  2. Remove the injector base (see INJECTOR BASE REMOVAL AND INSTALLATION ).
  3. Disconnect the knock sensor connector (A).

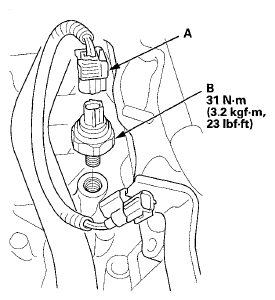

    Fig 1: Lnock Sensor And Connector With Torque Specifications
    G08079216Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the knock sensor (B).
  5. Install the parts in the reverse order of removal.
