Seat Belts: Inspection: Retractor

Before installing the retractor, check that the seat belt can be pulled out freely.
Make sure that the seat belt does not lock when the retractor (A) is leaned slowly up to 15° from the mounted position. The seat belt should lock when the retractor is leaned over 40° from the mounted position. Do not attempt to disassemble the retractor.
Front

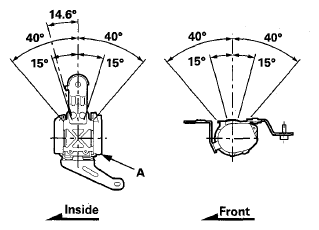

Fig 1: Positioning Of Retractor (Front)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Second row

Fig 2: Positioning Of Retractor (Second Row)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Center second row

Fig 3: Positioning Of Retractor (Center Second Row)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Third row

Fig 4: Positioning Of Retractor (Third Row)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Center third row

Fig 5: Positioning Of Retractor (Center Third Row)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Replace the seat belt with a new assembly if there is any abnormality. Do not disassemble any part of the seat belt for any reason.
