Full Lock-Up

When the vehicle speed increases, the PCM increase A/T clutch pressure control solenoid valve C pressure (58). A/T clutch pressure control solenoid valve C pressure (58) is applied to the lock-up control valve and the lock-up timing valve, and the lock-up control valve and the lock-up timing valve are moved to the left side. Torque converter pressure (94) from the left side of the torque converter releases at the lock-up control valve, and the lock-up timing valve uncovers the torque converter pressure port (91) leading to the right side of the torque converter. Torque converter back pressure is fully released, and the torque converter clutch is fully engaged.

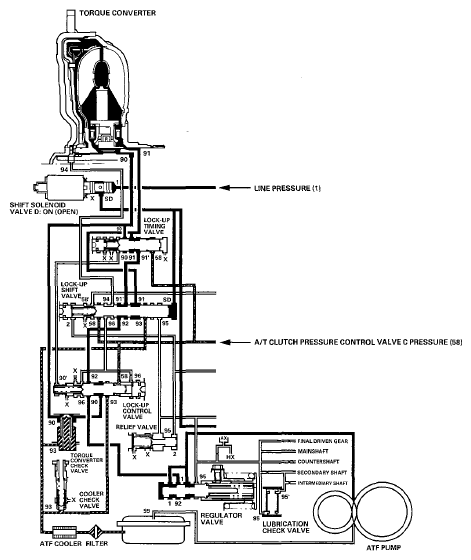

Fig 1: PCM Commands Shift Solenoid Valve Circuit Diagram (Full Lock-Up)
