PCV Valve: Inspection

  1. Engine Cover - Remove
  2. PCV Valve - Inspect

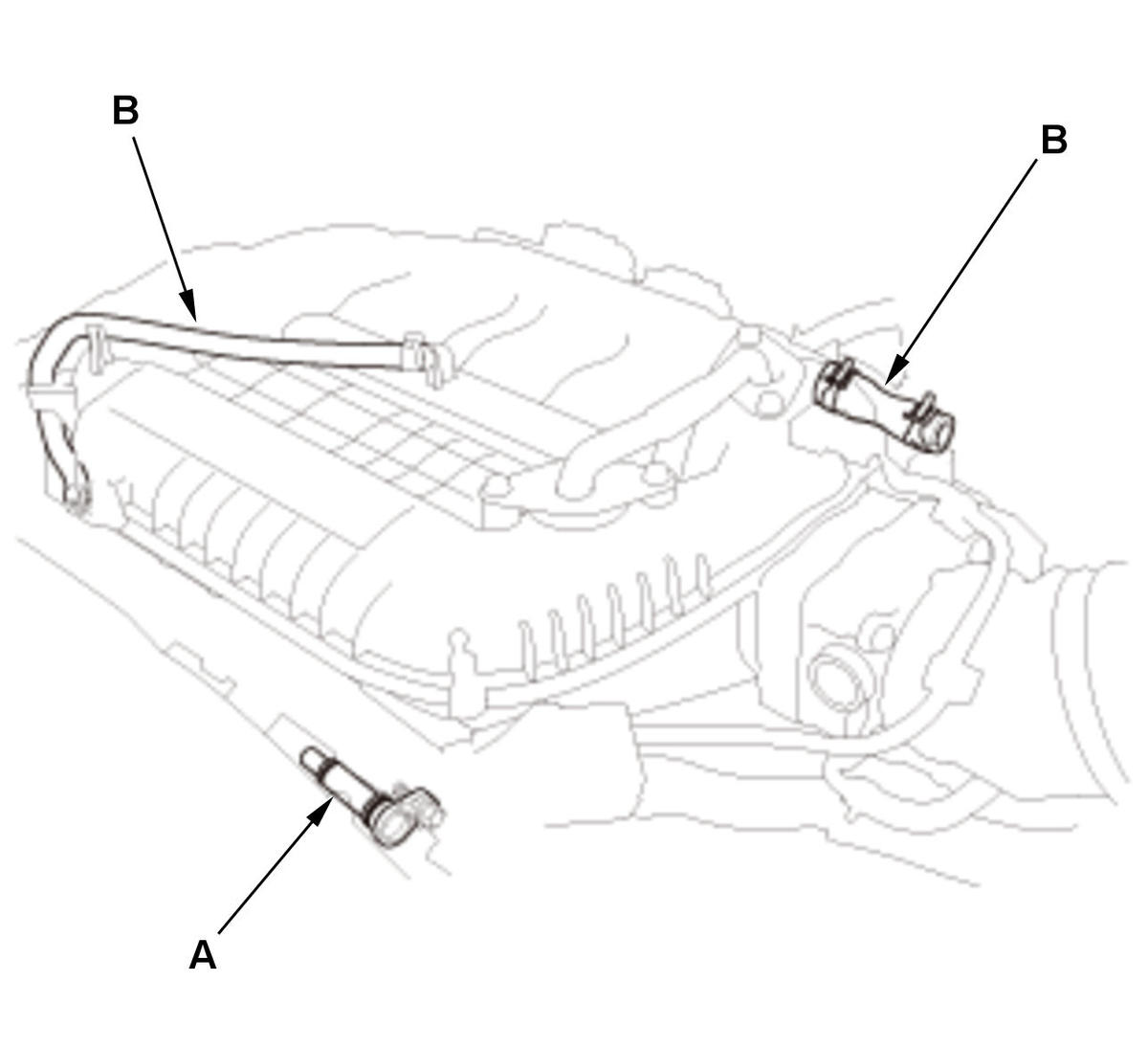

    GHH308425Courtesy of HONDA, U.S.A., INC.
    		 1. Check the PCV valve (A), hoses (B), and their connections for leaks or restrictions.

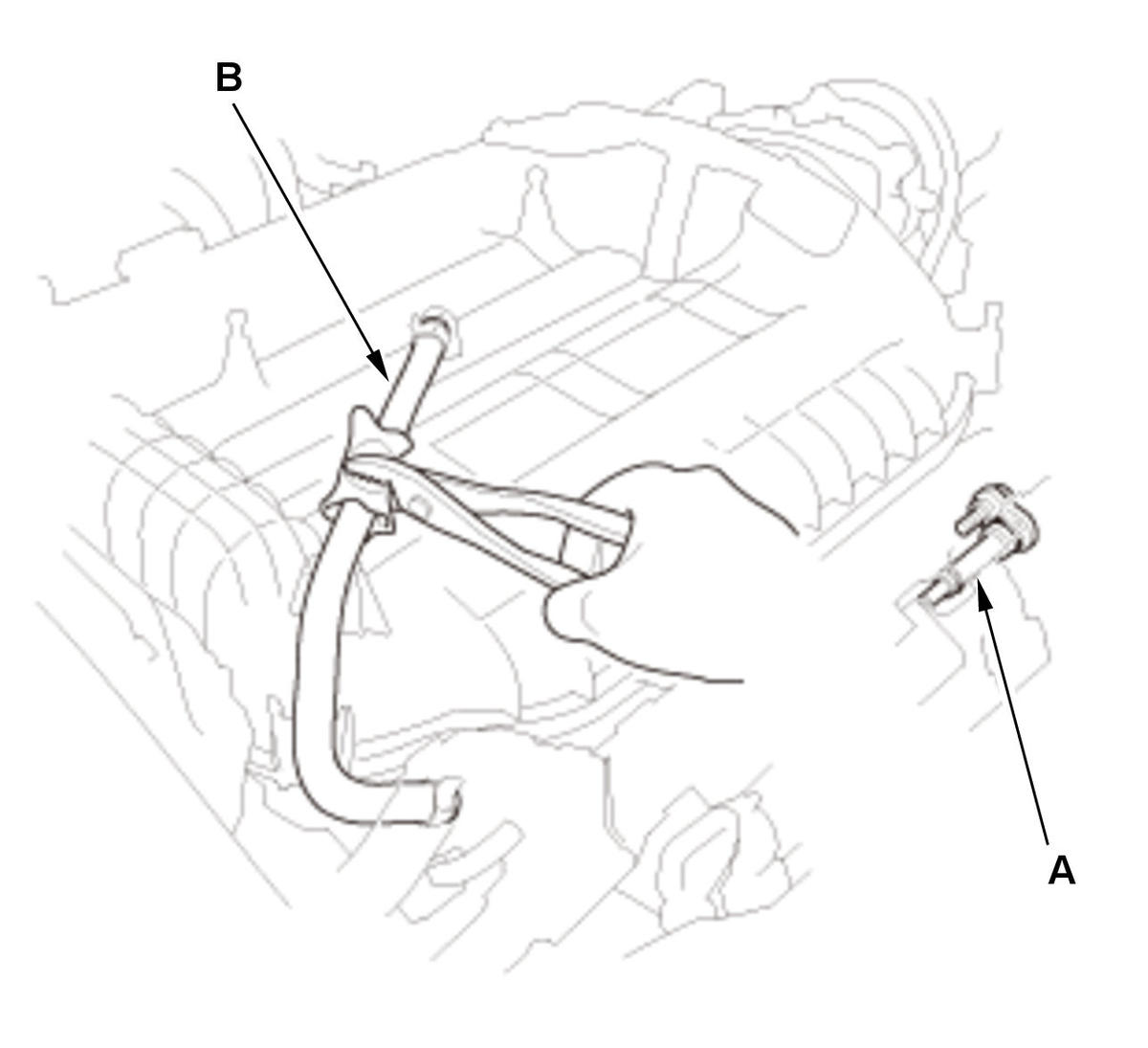

    GHH308426Courtesy of HONDA, U.S.A., INC.
    		 2. Start the engine.

    3. At idle, make sure there is a clicking sound from the PCV valve (A) when the hose (B) between the PCV valve and intake manifold is lightly pinched with your fingers or pliers. If there is no clicking sound, check the O-rings for cracks or damage. If they are OK, replace the PCV Valve - Removal and Installation and recheck.
