Relays And Control Unit Locations: Dashboard: Notes

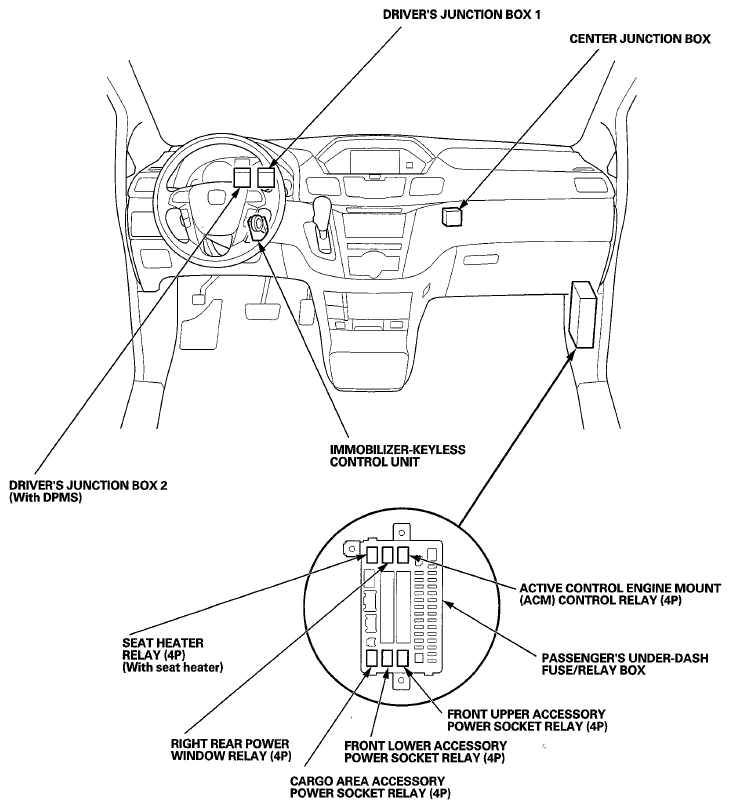

Fig 1: Dashboard Components Location (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

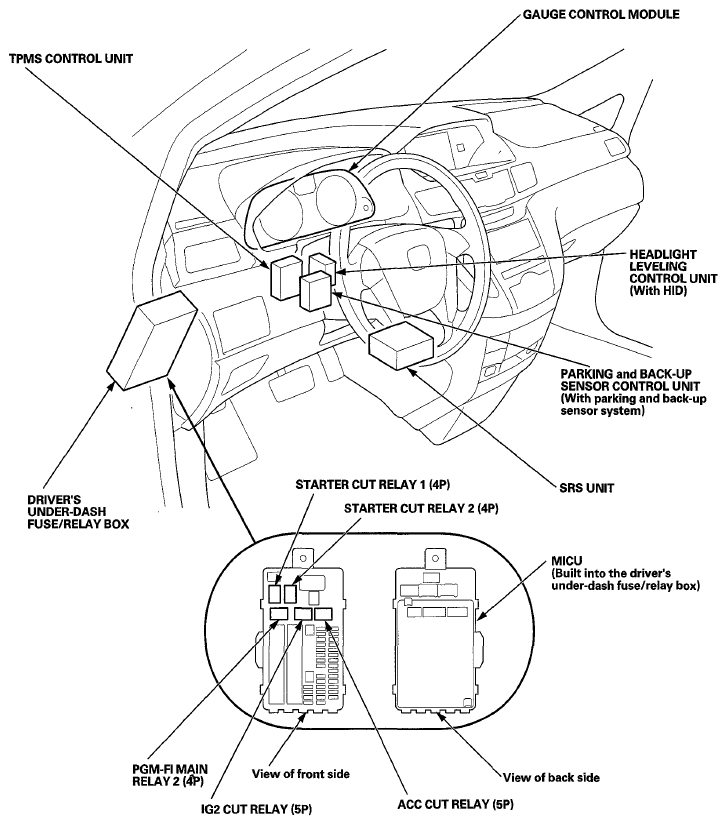

Fig 2: Dashboard Components Location (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
