Relays And Control Unit Locations
>>
Engine Compartment
Engine Compartment

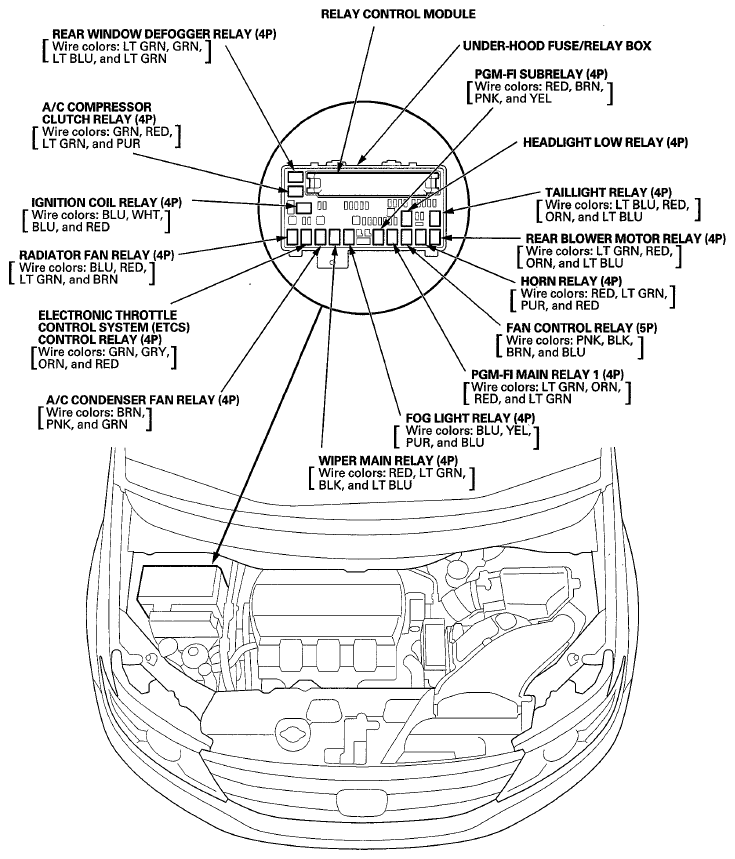

Fig 1: Engine Compartment Relay And Control Unit Locations (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

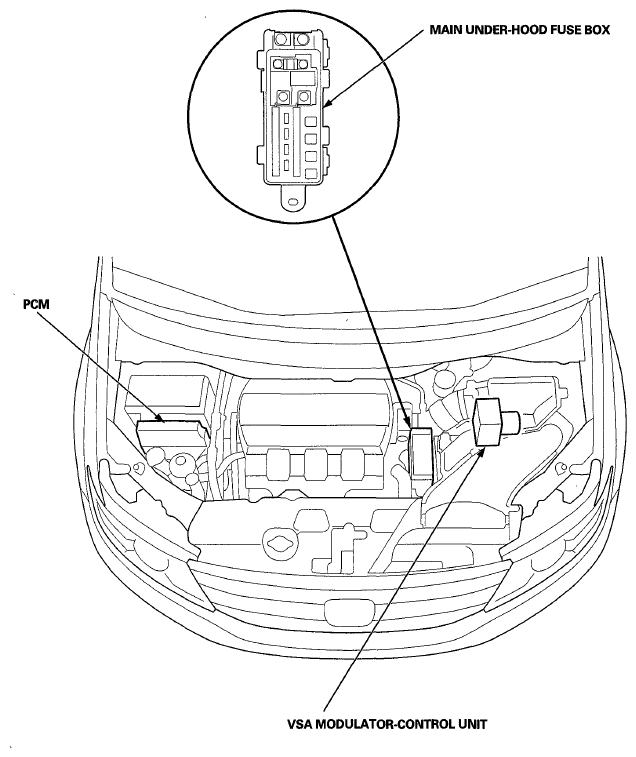

Fig 2: Engine Compartment Relay And Control Unit Locations (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
