System Description: Overview: Notes

The electrical compass shows the azimuth (direction) information in 8-directions (N, NE, E, SE, S, SW, W, NW) to the audio display-USB adapter control unit (with USB adapter) or audio display unit (without USB adapter) via the audio unit.

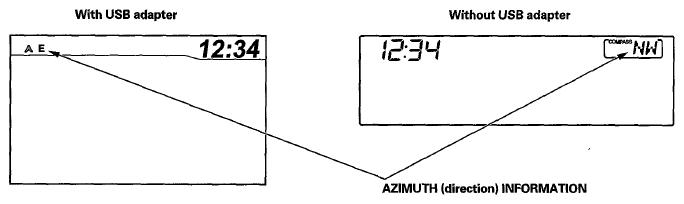

Fig 1: Locating Azimuth (Direction) Information
G06971247Courtesy of AMERICAN HONDA MOTOR CO., INC.
