Exploded View: Notes

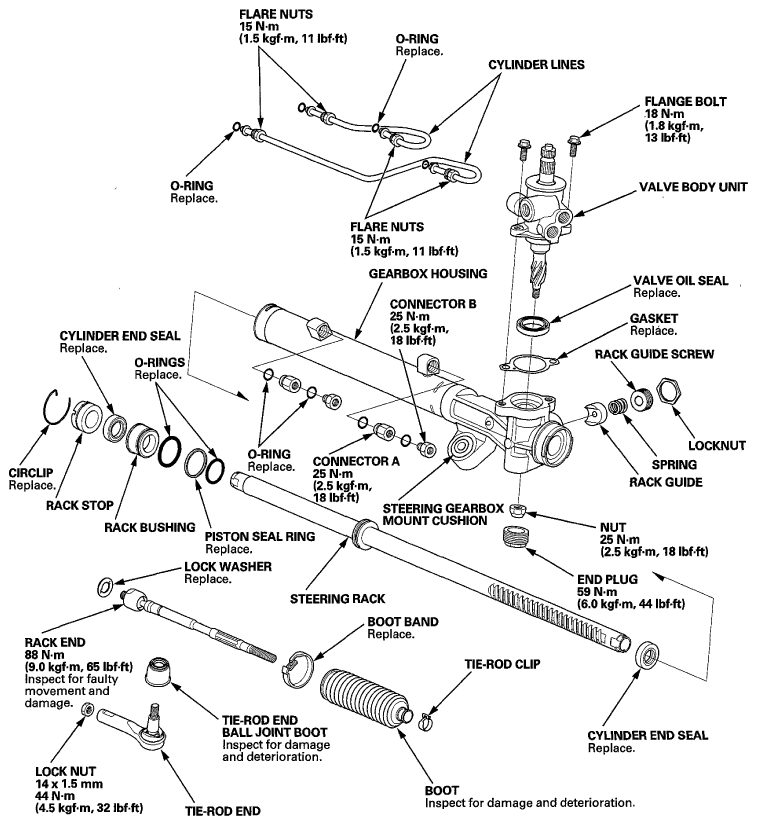

Fig 1: Exploded View Of Steering Gearbox With Torque Specifications

G06970524

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Driver Handle, 480 mm 070GD-0010100
Driver Head 07946-MJ00201
Piston Seal Ring Guide 07LAG-SM40100
Piston Seal Ring Sizing Tool 07LAG-SM4020A
Driver Handle, 15 x 135L 07749-0010000
Bearing Driver Attachment, 42 x 47 mm 07746-0010300
Bearing Driver Attachment, 30 07746-0030300
Oil Seal Driver 07JAD-PL90100
Pincers Oetiker 1098, commercially available

NOTE: Refer to the EXPLODED VIEW as needed during the following procedure.
