VSA Modulator-Control Unit: Installation
NOTE:
- Review the Service Precautions before doing repairs or service .
- Do not damage or drop the VSA modulator-control unit as it is sensitive.
- Do not use power tools when installing the VSA modulator-control unit.
- When replacing the VSA modulator-control unit, do the immobilizer system registration.

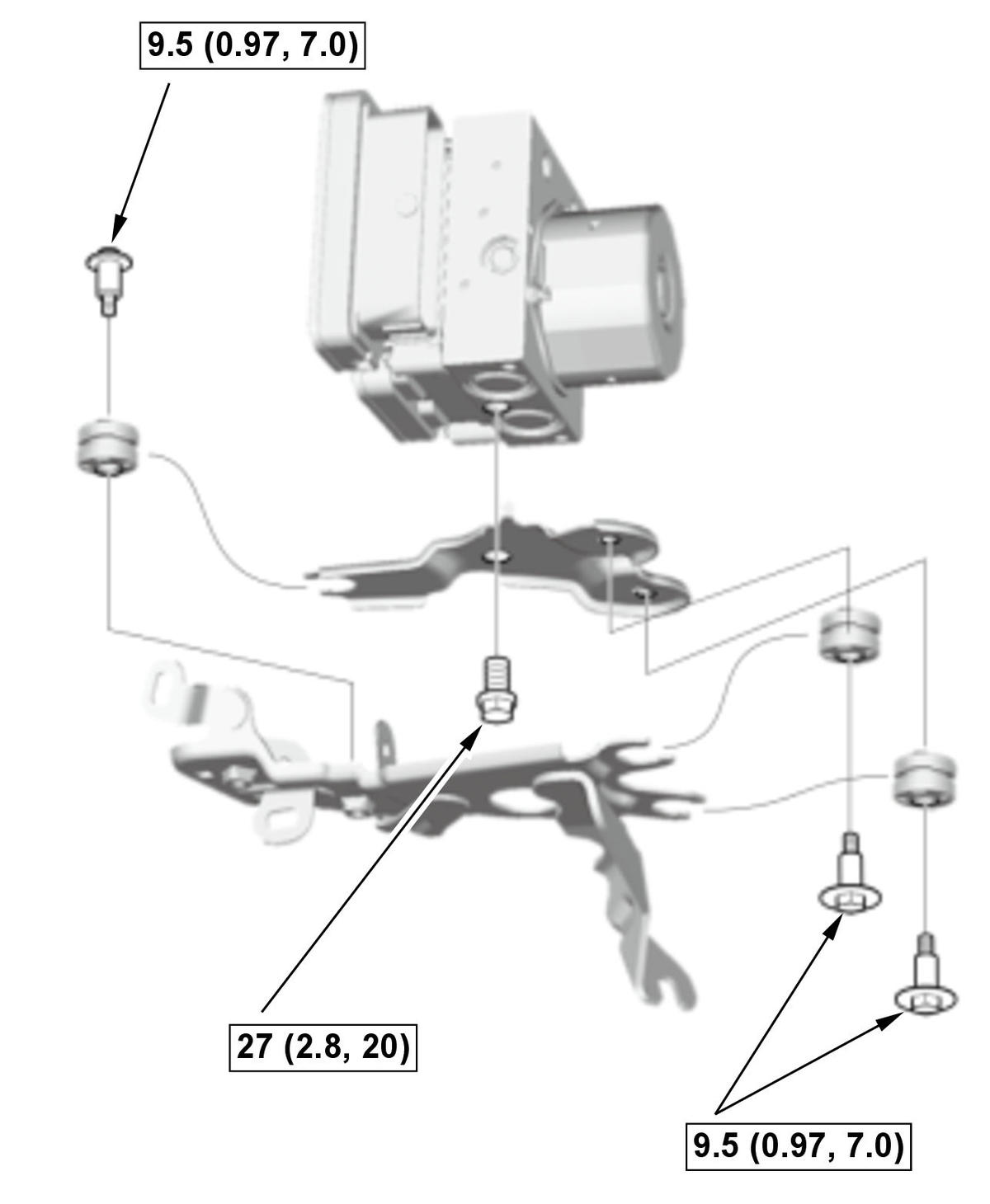

- VSA Modulator-Control Unit Bracket - Install
- VSA Modulator-Control Unit - Install

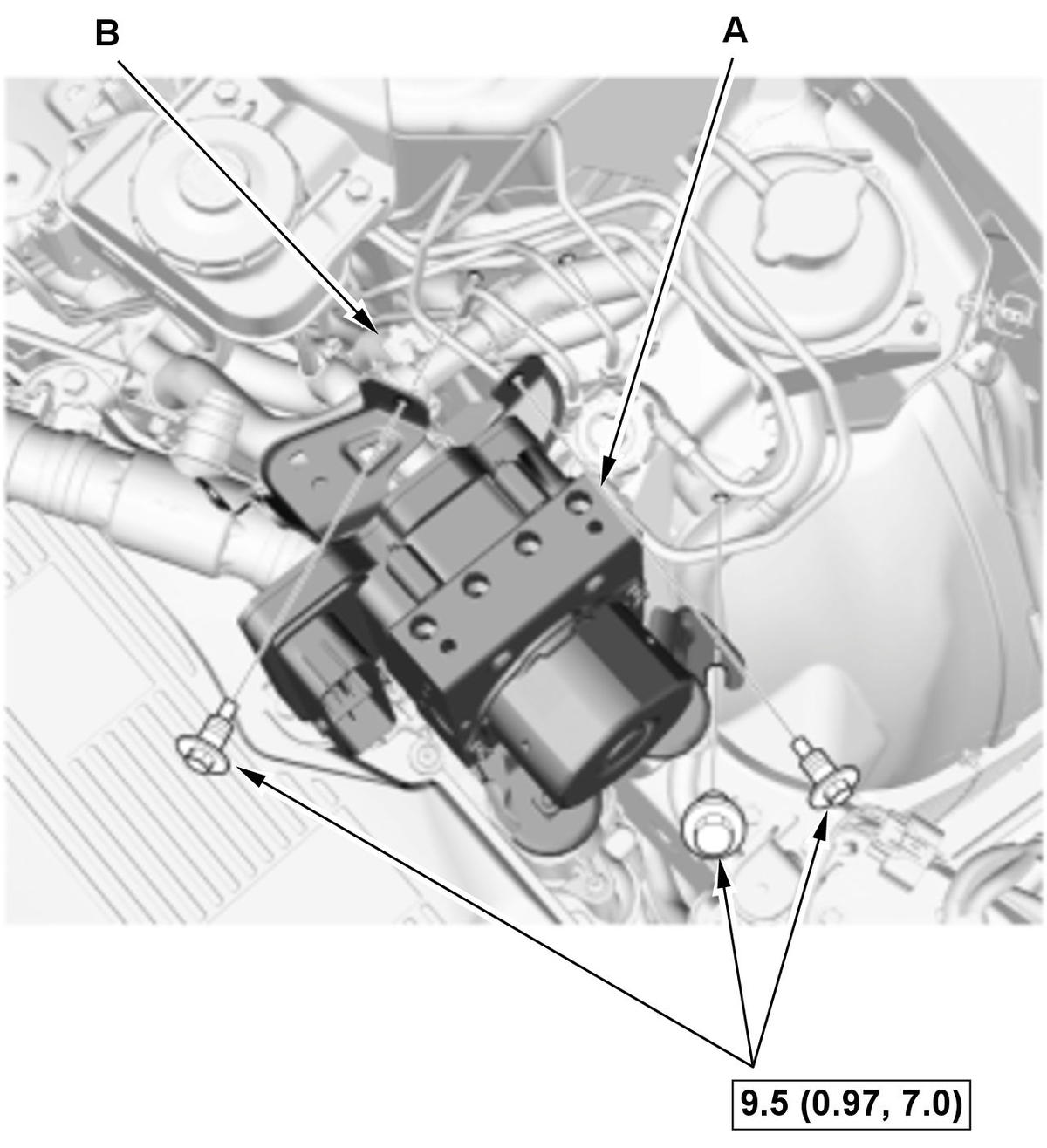

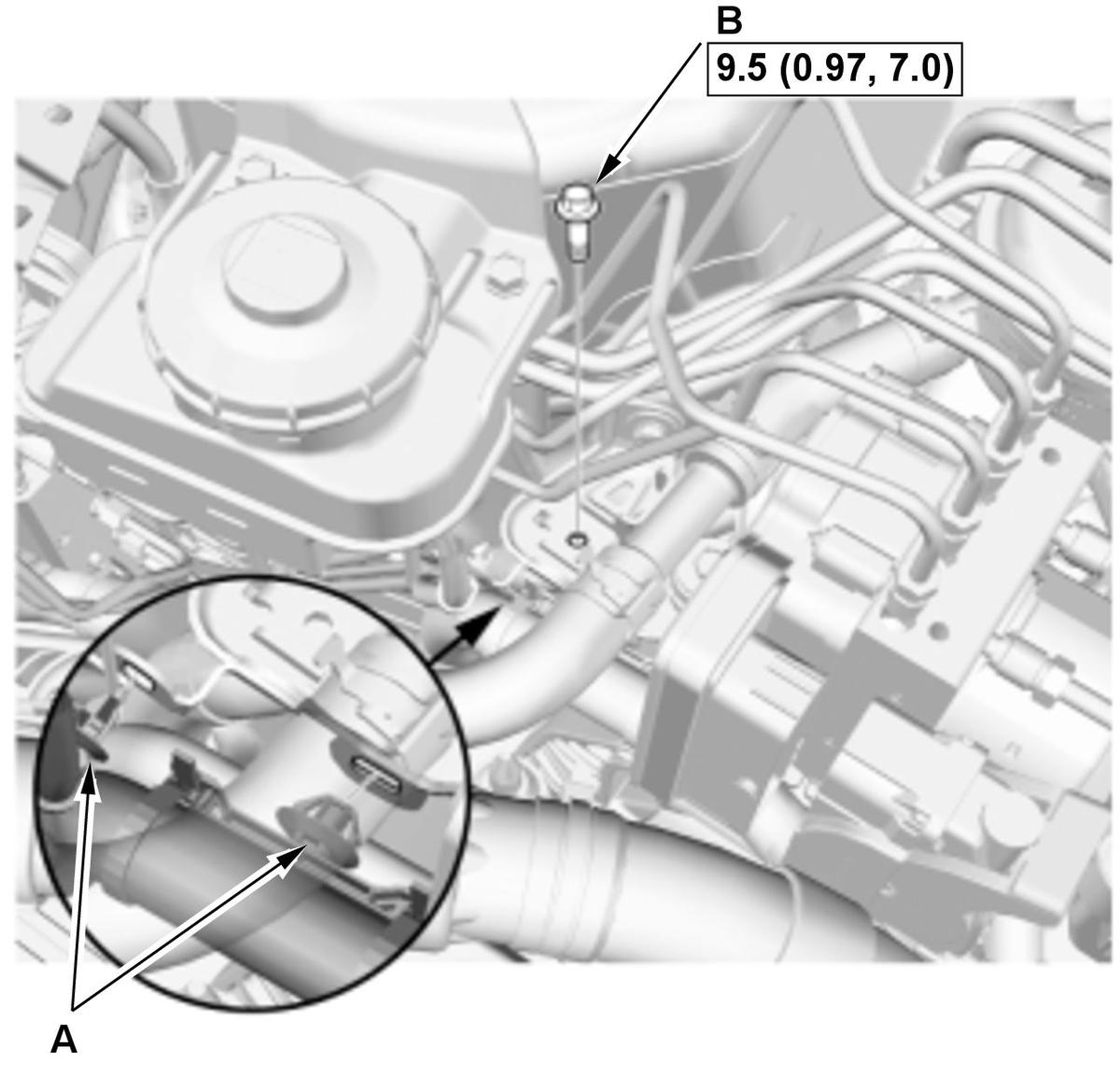

1. Install the VSA modulator-control unit (A) with the bracket (B). 2. Install the bolt (A). 3. Install the wire harness clips (A).

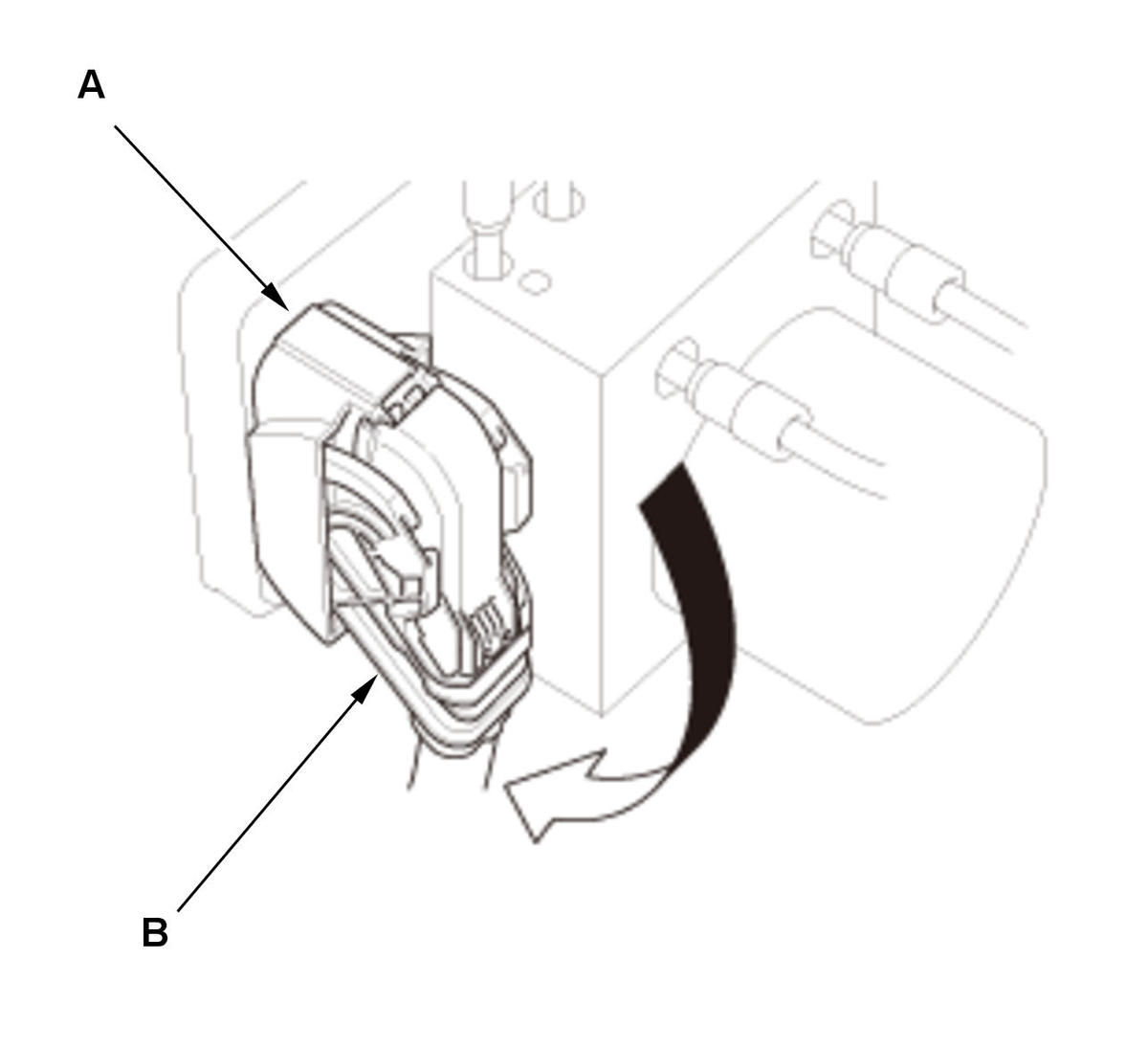

4. Align the connecting surface of the VSA modulator-control unit connector (A). 5. Pull down the lever (B) of the VSA modulator-control unit connector, then confirm the connector is fully seated.

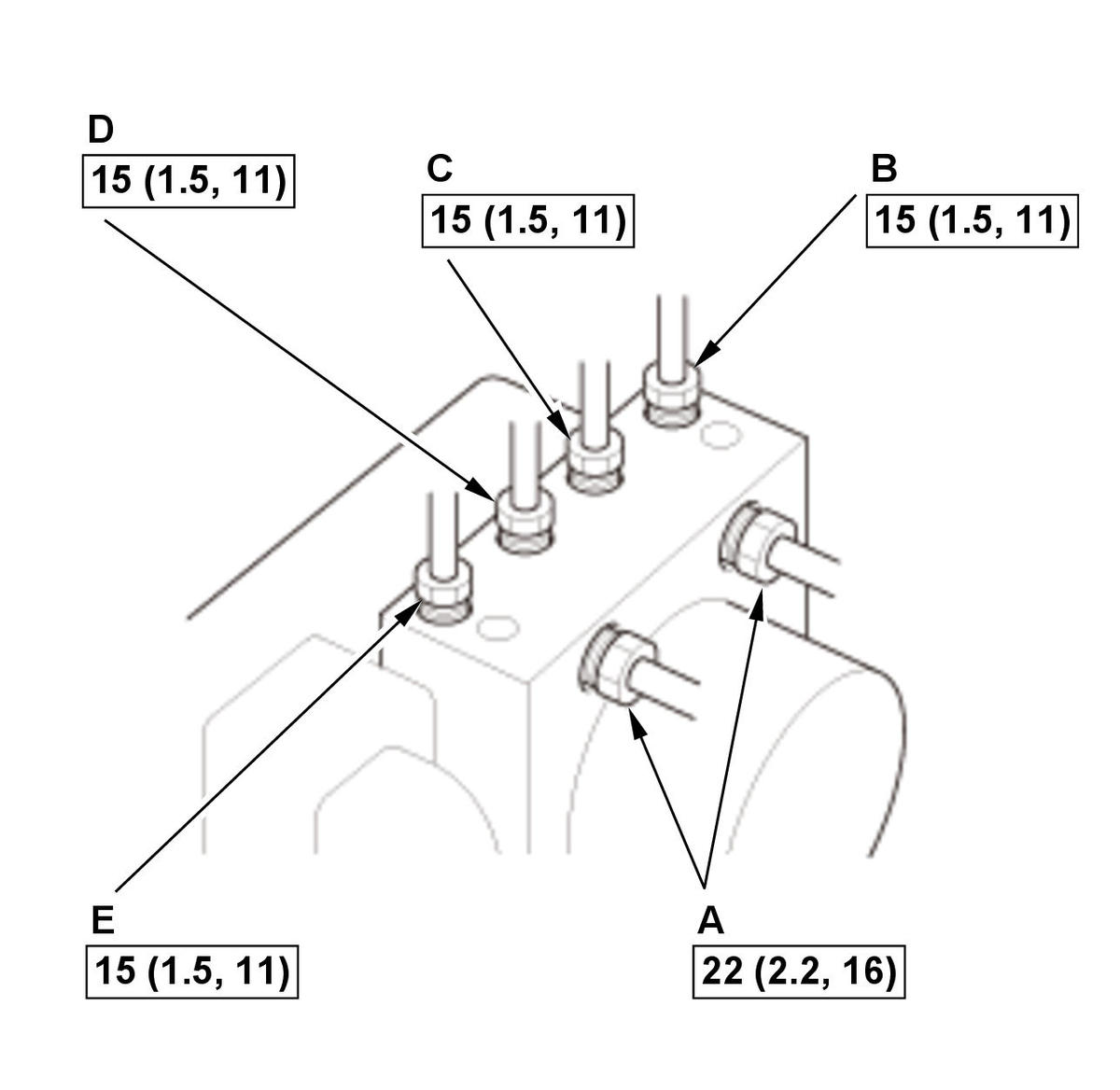

6. Connect the brake lines. NOTE: Brake lines are connected to the electric servo brake control unit/pedal feel simulator (A), the left-rear (B), the right-front (C), the left-front (D), and the right-rear (E) brake systems.
- DT Radiator Expansion Tank - Install
- Air Cleaner - Install
- Brake System- Bleed
- 12 Volt Battery Terminal - Reconnect
- Immobilizer System - Register
NOTE: - When replacing the VSA modulator-control unit, do the immobilizer system registration.
- Failure to complete the immobilizer system registration will lead to a no-start condition the next time the battery is disconnected.
- VSA Modulator-Control Unit Software - Check
1. Make sure the VSA modulator-control unit has the latest software. If it does not have the latest, update the software in the VSA modulator-control unit. - VSA Modulator-Control Unit After Install - Check
1. Turn the vehicle to the ON mode. 2. Apply and release the parking brake 2 times, then make sure that the brake system indicator (red) goes OFF.
NOTE: If the brake system indicator (red) does not go OFF, check for poor connection at the VSA modulator-control unit connector.
3. Turn the vehicle to the OFF (LOCK) mode.
- VSA Sensor Neutral Position - Memorize
- TPMS - Calibrate
