Overhaul
>>
Engine Oil Pump
>>

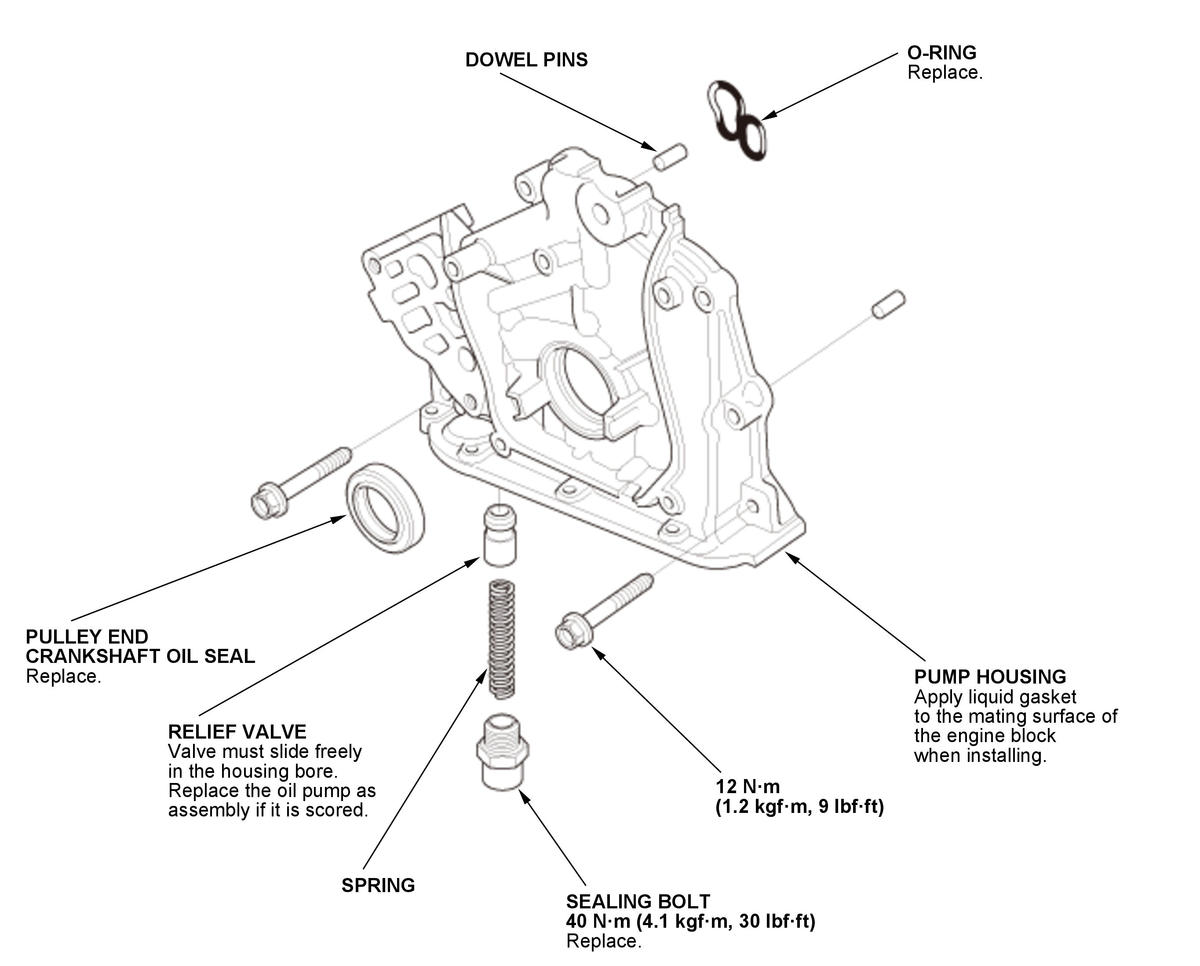

Exploded View
Exploded View
NOTE:
Do not disassemble the oil pump except for the shown parts.
Oil Pump
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
