Throttle Actuator Control Module: Installation

Connect TAC module harness connectors. Install TAC module onto the studs and install mounting nuts.

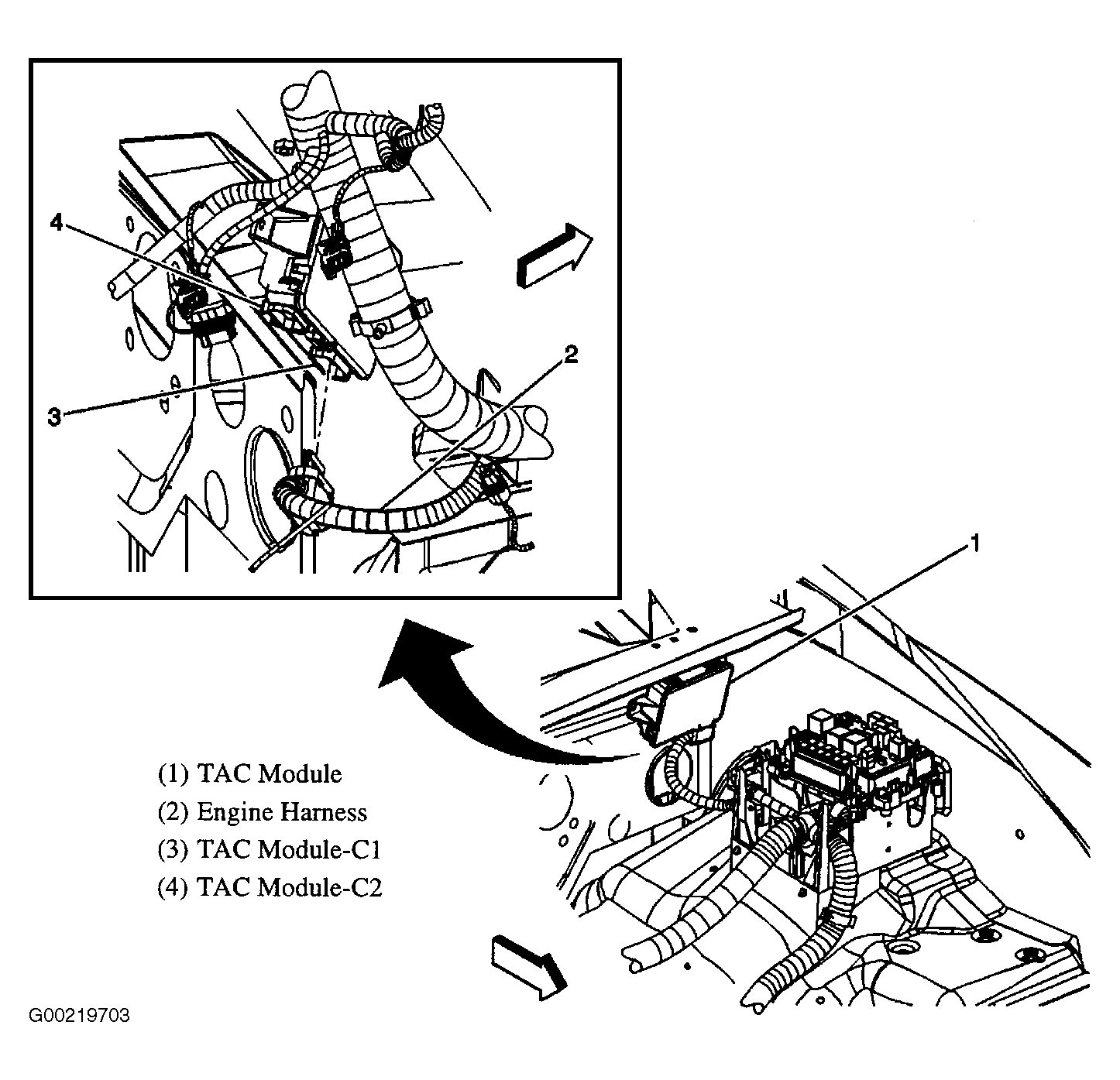

Fig 1: Locating TAC Module
G00219703Courtesy of GENERAL MOTORS CORP.
