Cruise Control Component Views

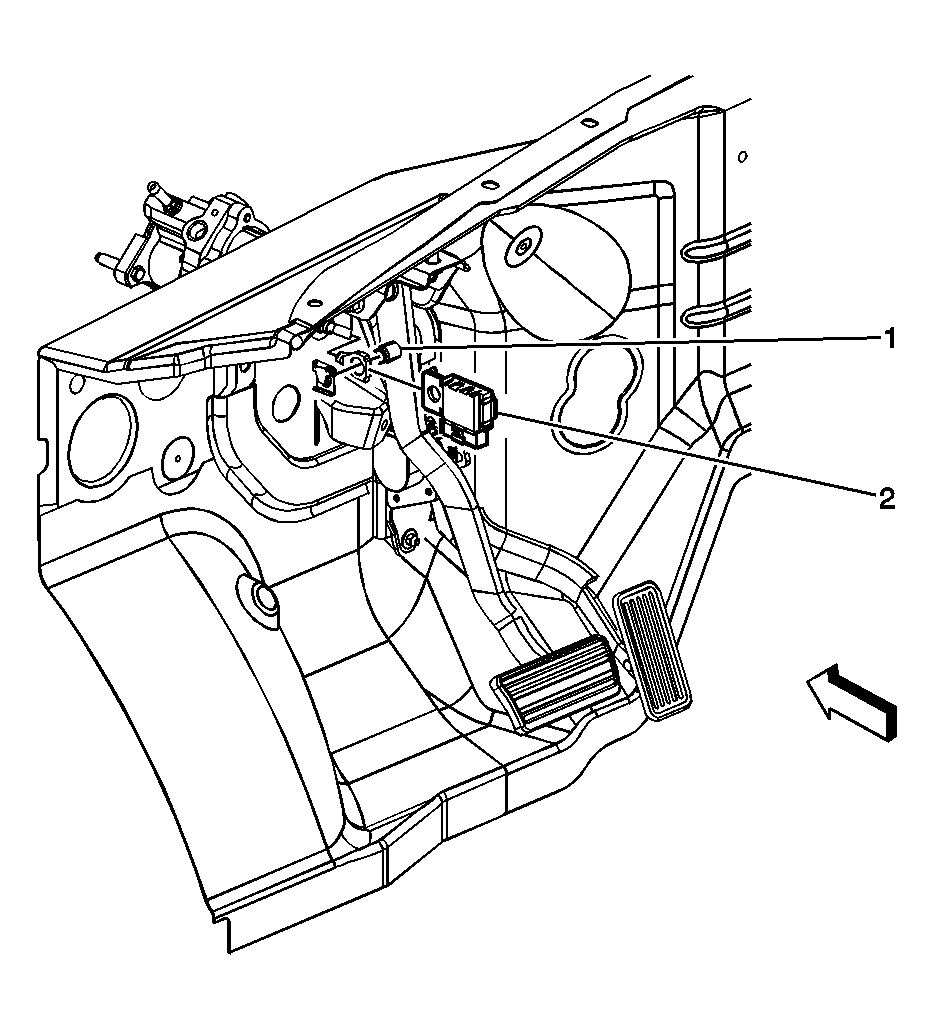

Fig 1: Stop Lamp Switch
GM829262Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Brake Pedal Assembly
2 Stop Lamp Switch

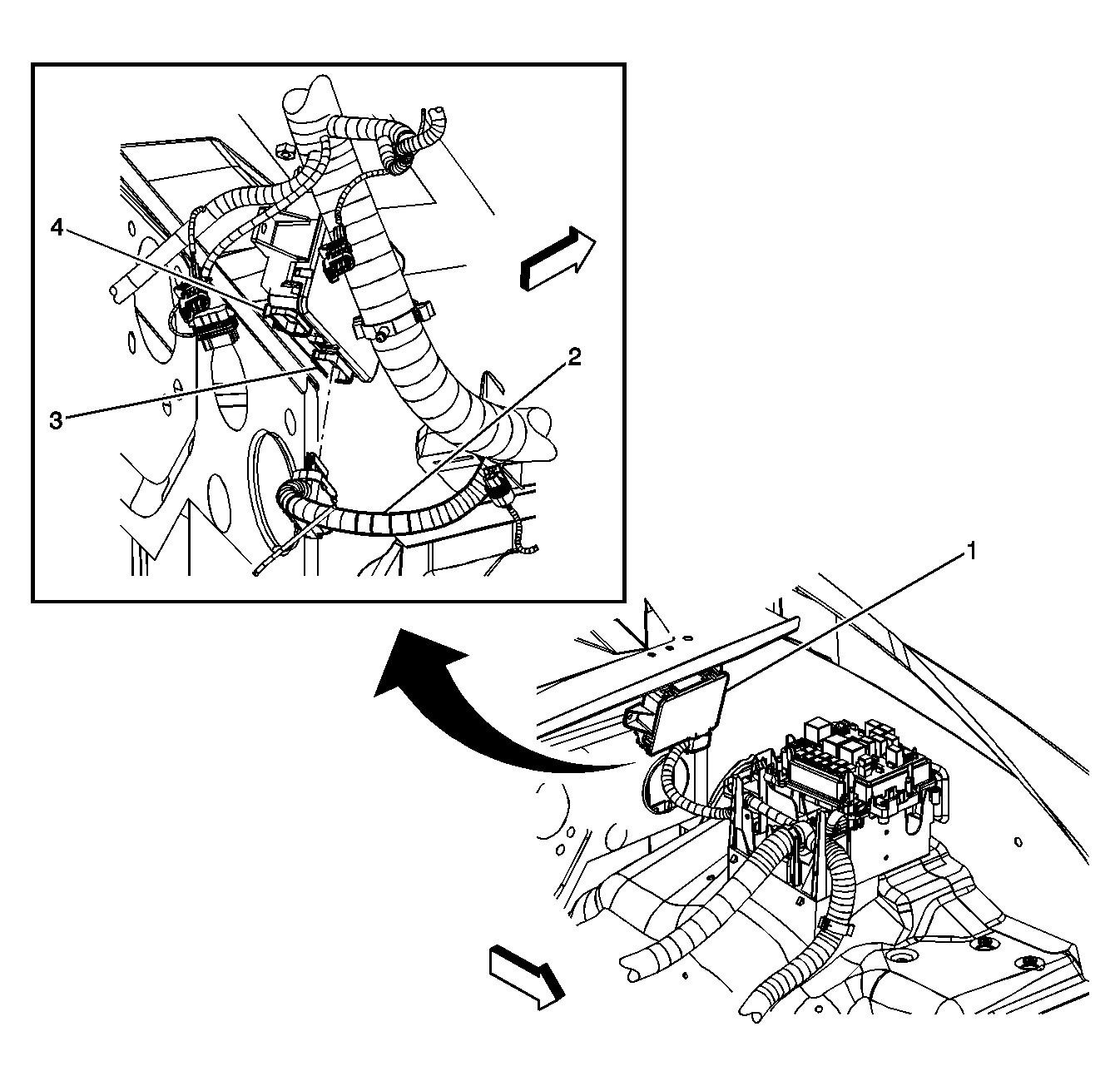

Fig 2: Throttle Actuator Control (TAC) Module
GM828512Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 TAC Module
2 Engine Harness
3 TAC Module-C1
4 TAC Module-C2

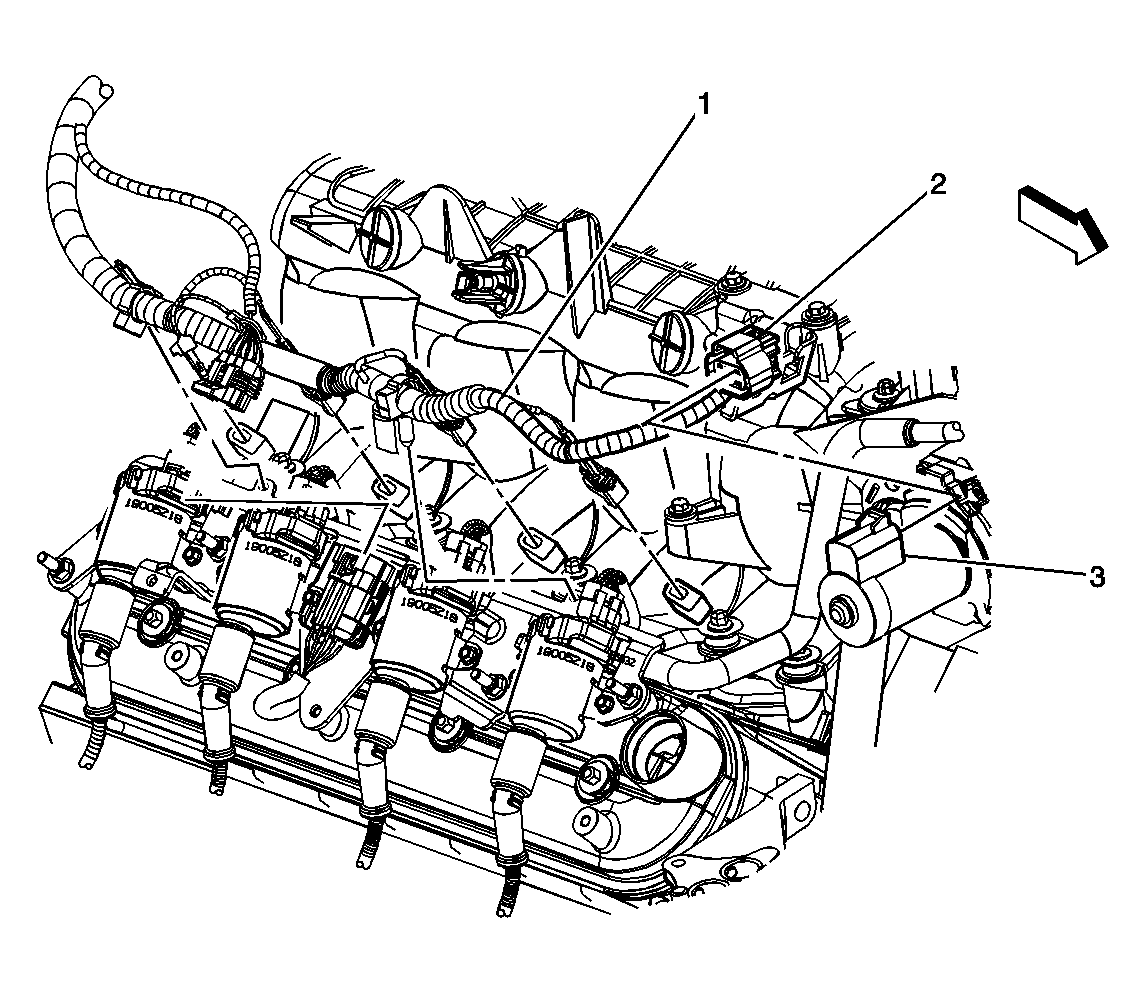

Fig 3: Throttle Body Assembly
GM860200Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Harness
2 Throttle Body Connector
3 Throttle Body Assembly
