Entertainment Component Views

Fig 1: Audio Amplifier

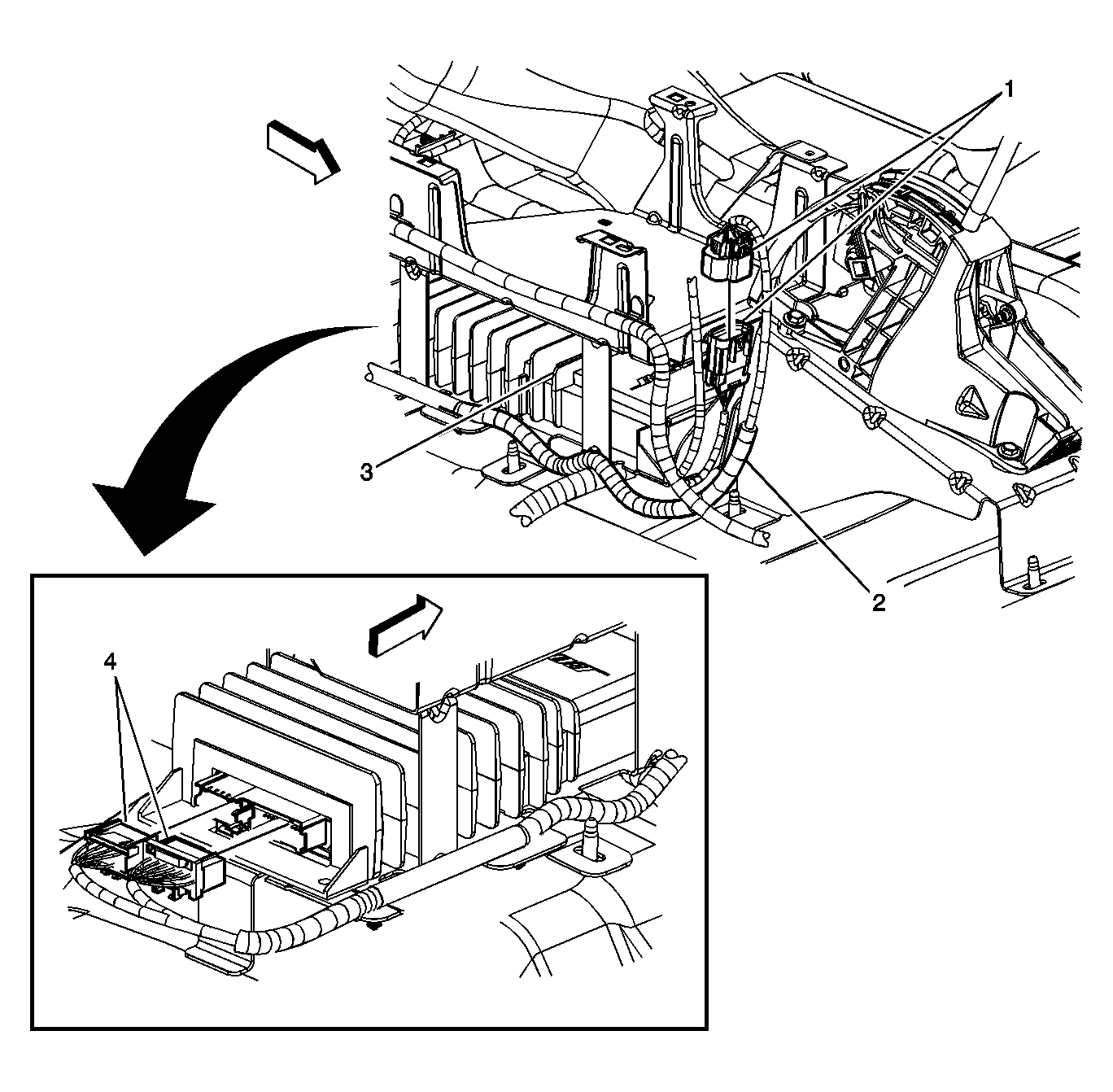

GM825552

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C355
2	Body Harness
3	Audio Amplifier
4	Audio Amplifier Connectors

Fig 2: Noise Cancellation Microphone

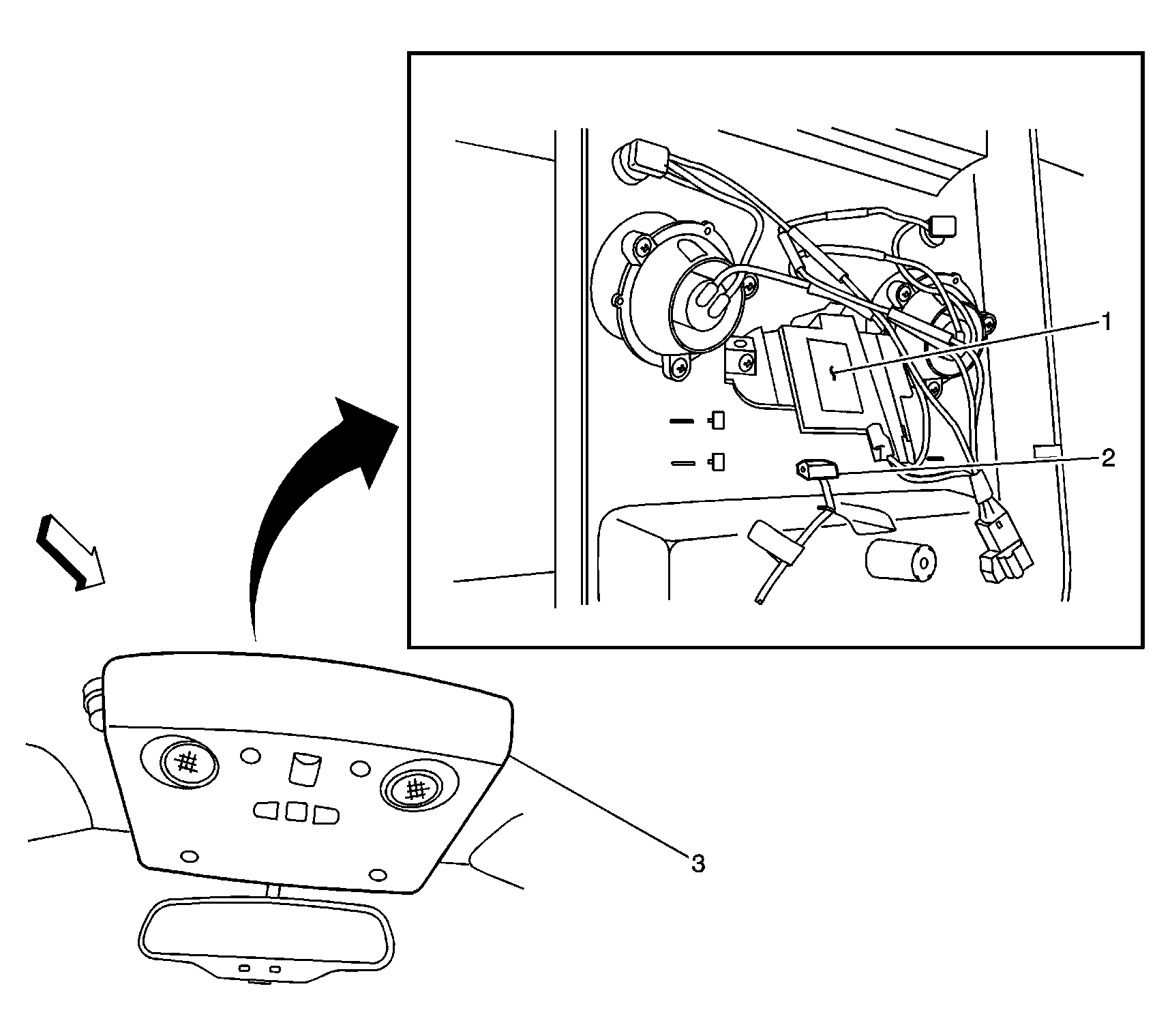

GM857322

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Garage Door Opener
2	Noise Cancellation Microphone
3	Overhead Console

Fig 3: Radio

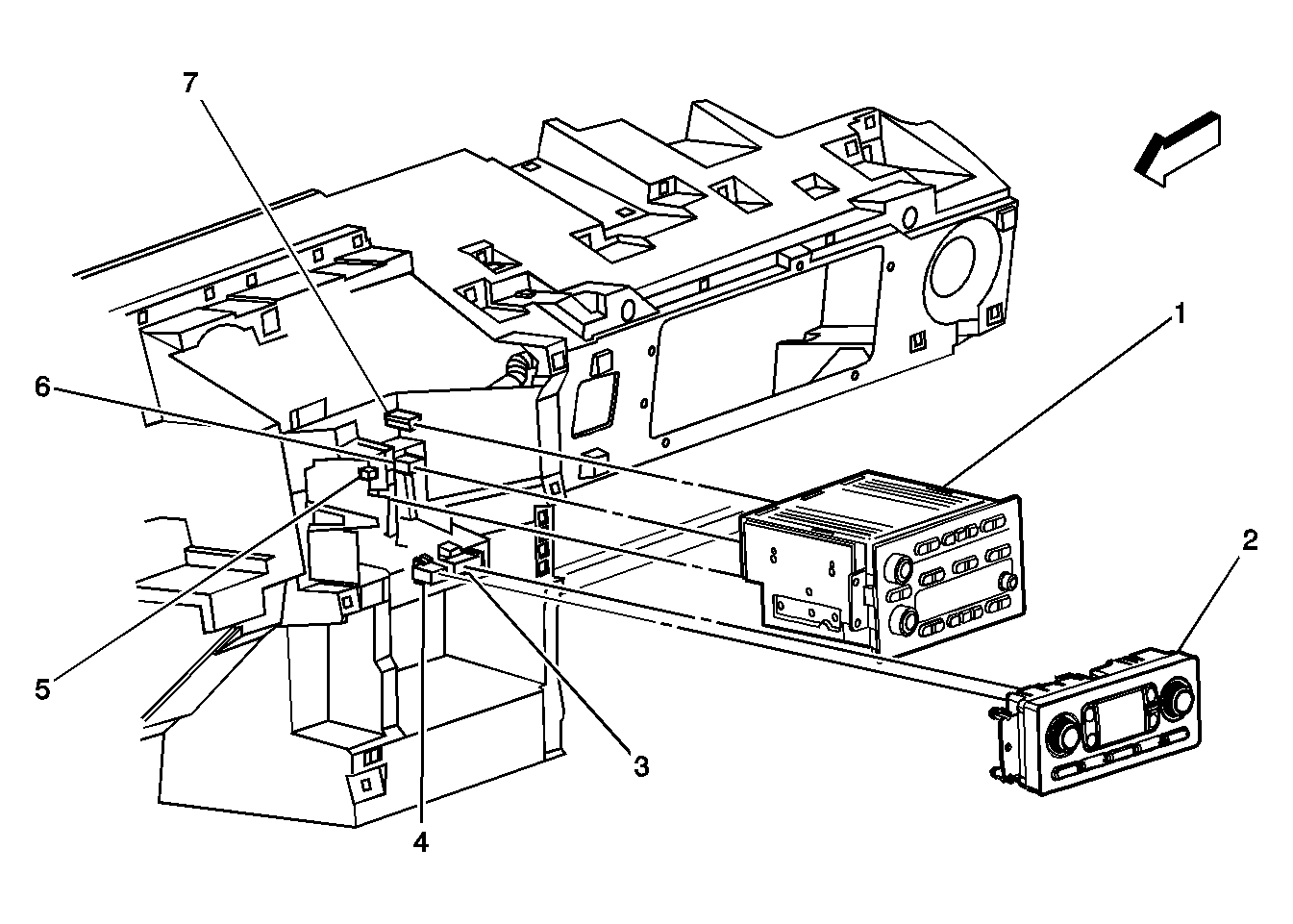

GM819865

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio
2	HVAC Control Module
3	HVAC Control Module-C1
4	HVAC Control Module-C2
5	Radio-C3-Not Used
6	Radio-C1
7	Radio-C2

Fig 4: Radio Antenna

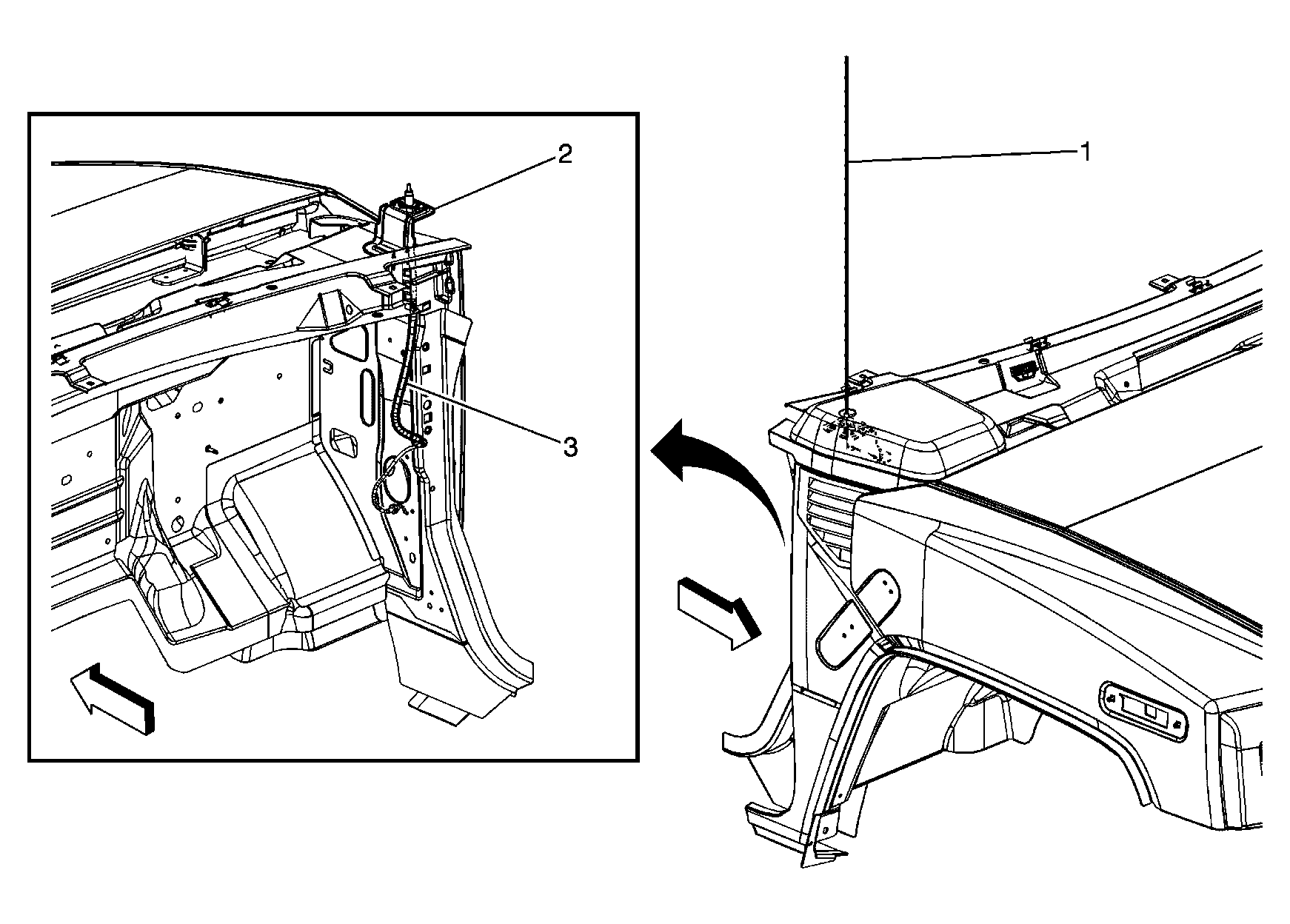

GM869378

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio Antenna
2	Radio Antenna Bracket
3	Coax Antenna Cable

Fig 5: Rear Seat Audio (RSA) Controller

GM828480

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	RSA Controller
2	Heated Seat Switch-RR
3	Accessory Power Outlet-RR
4	Accessory Power Outlet-LR
5	Heated Seat Switch-LR

Fig 6: Speaker - Front Subwoofer

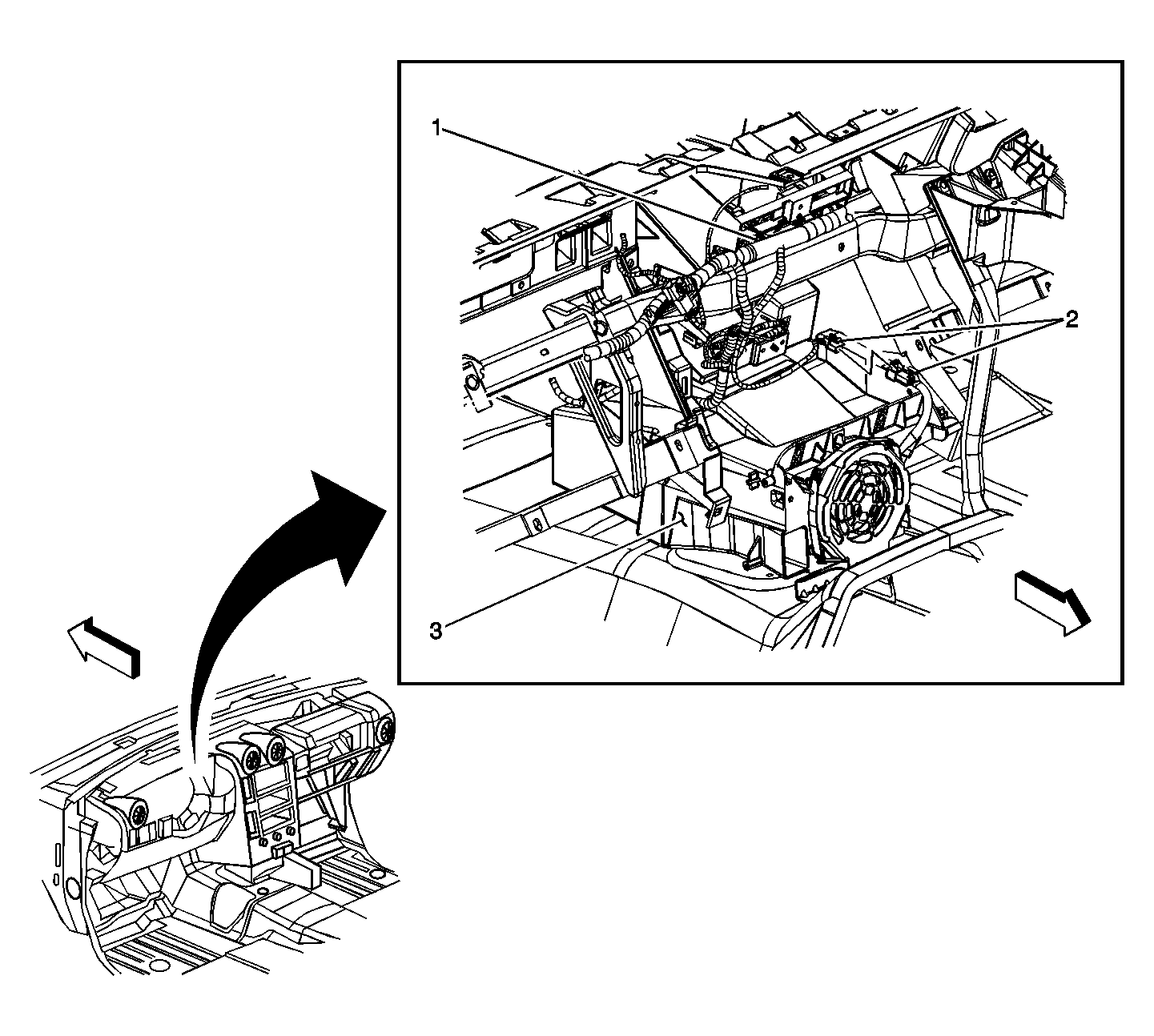

GM819984

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Harness
2	Speaker-Front Subwoofer Connector
3	Speaker-Front Subwoofer

Fig 7: Speaker - Left A Pillar Tweeter

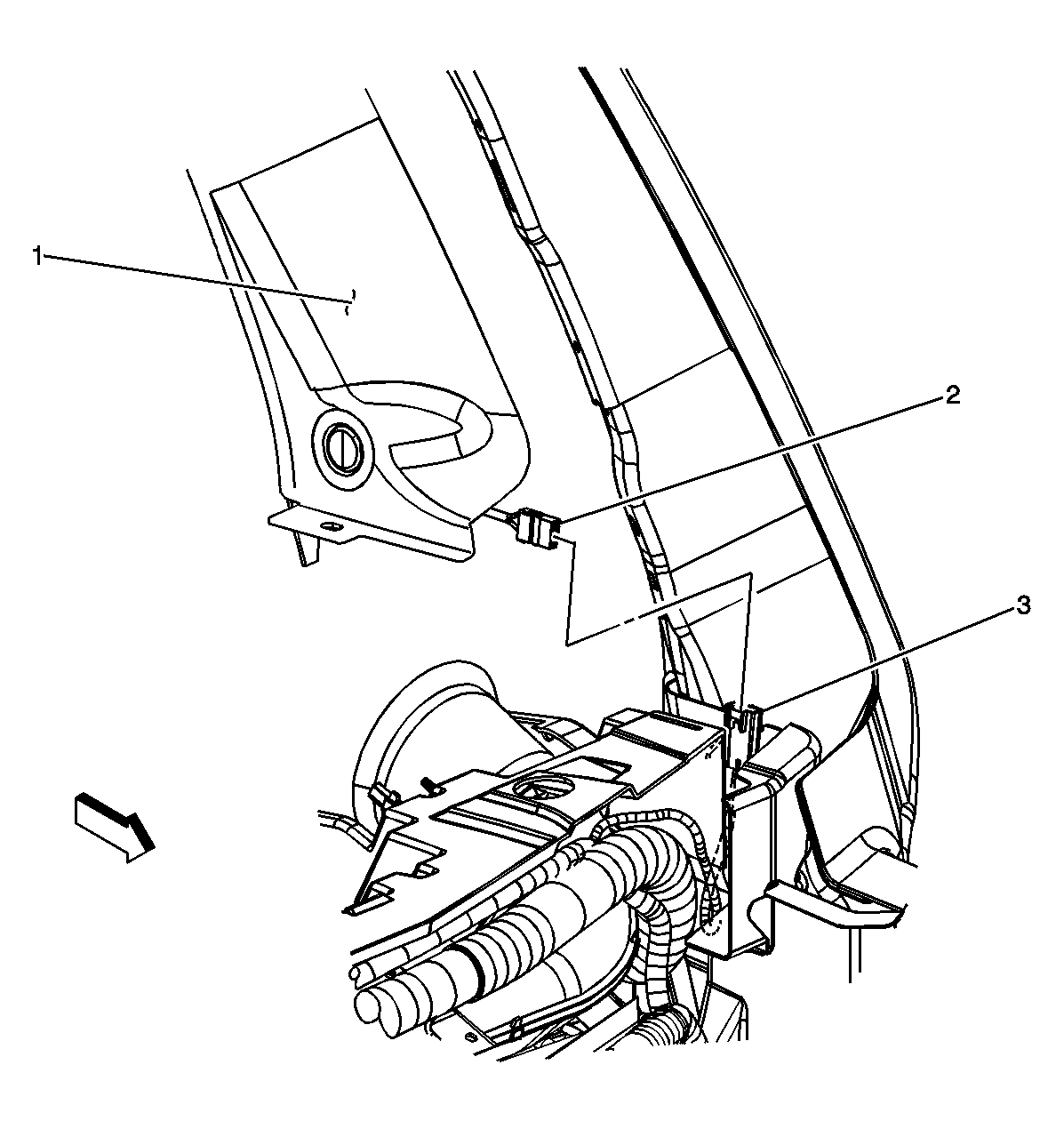

GM819968

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Side Garnish Molding
2	Speaker-Left A Pillar Tweeter Connector
3	Speaker-Left A Pillar Tweeter Connector - I/P Harness Side

Fig 8: Speaker-Left D Pillar Twiddler

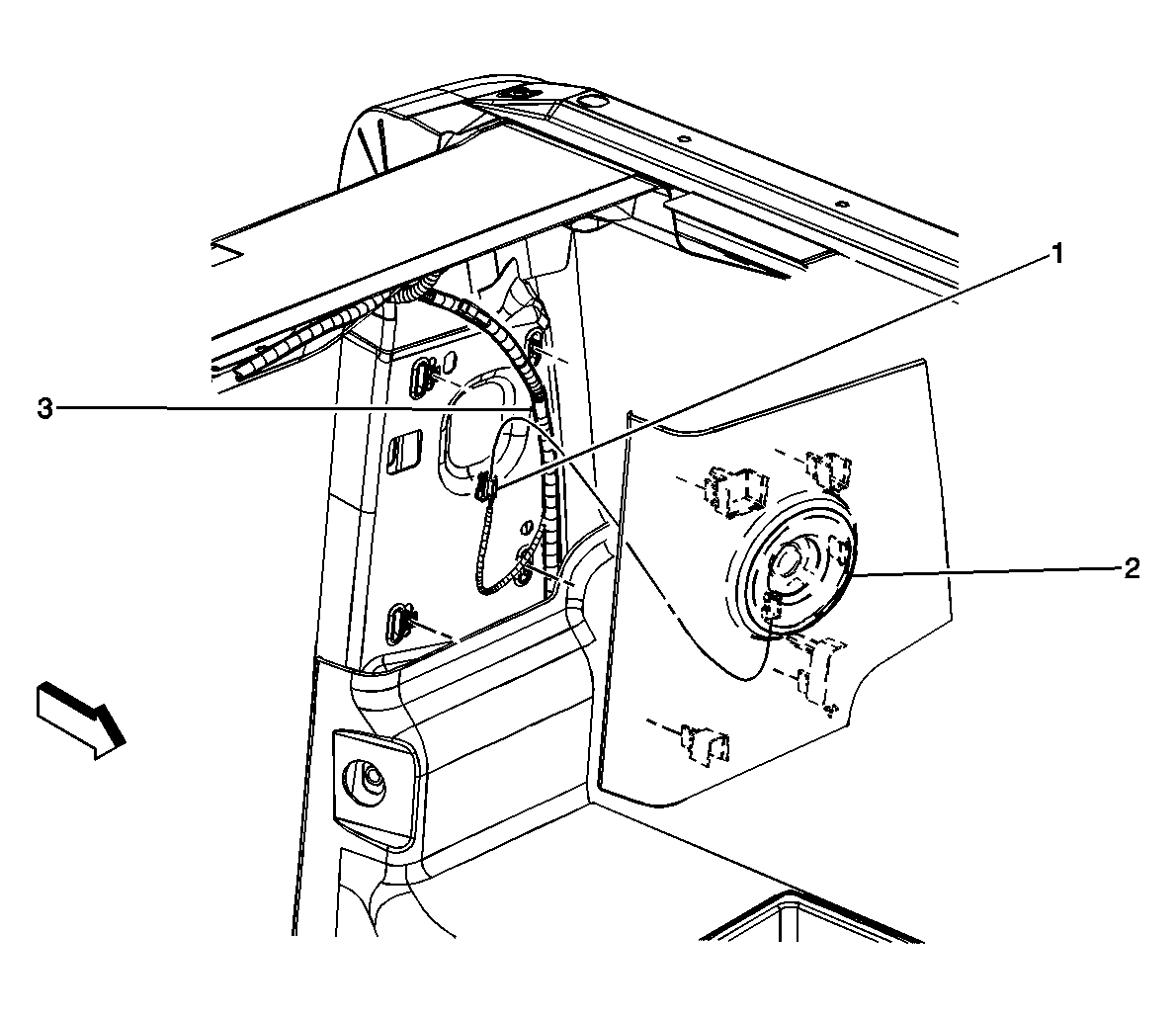

GM825870

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker-Left D Pillar Twiddler Connector
2	Speaker-Left D Pillar Twiddler
3	Body Harness

Fig 9: Speaker - LR Door

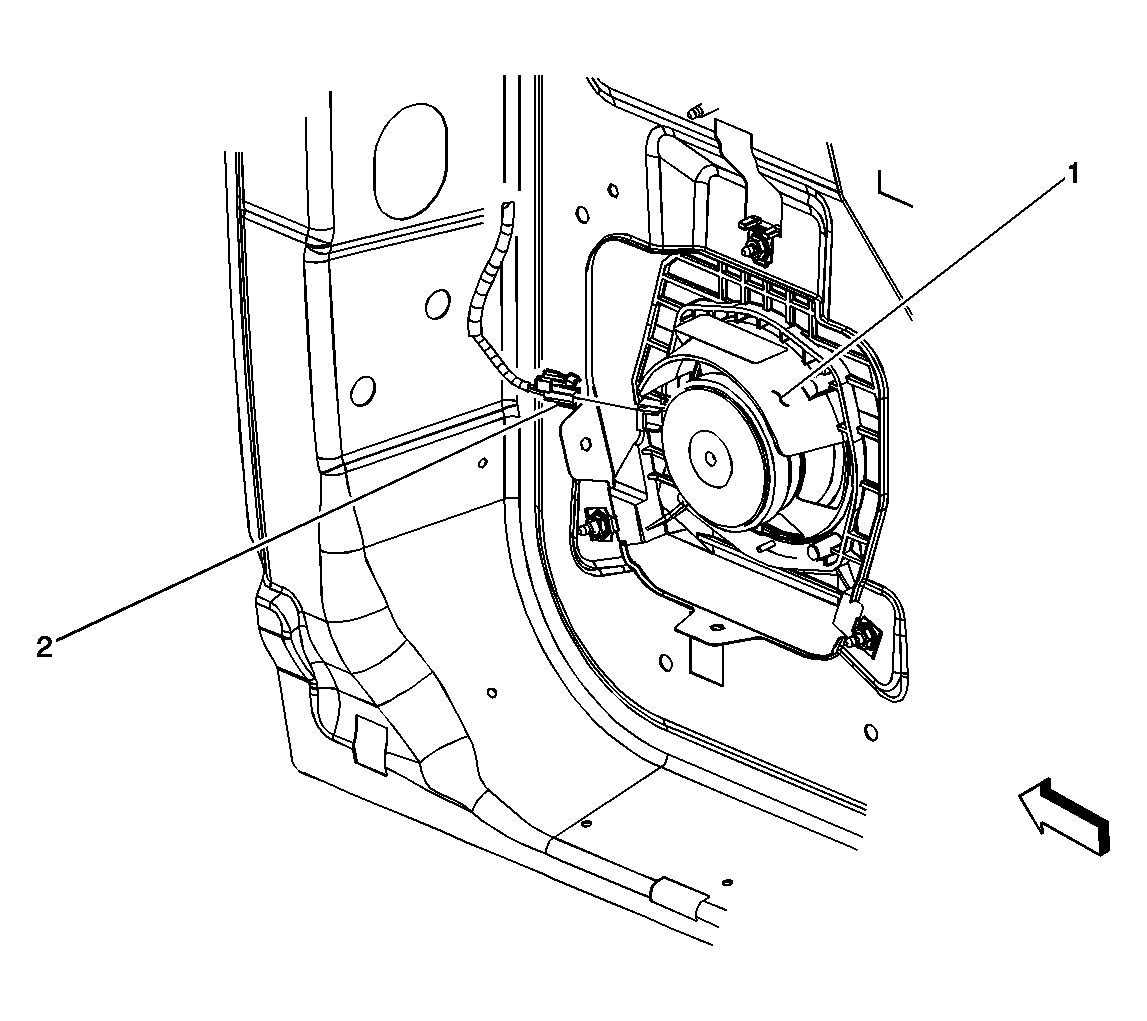

GM827740

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker-LR Door
2	Speaker-LR Door Connector

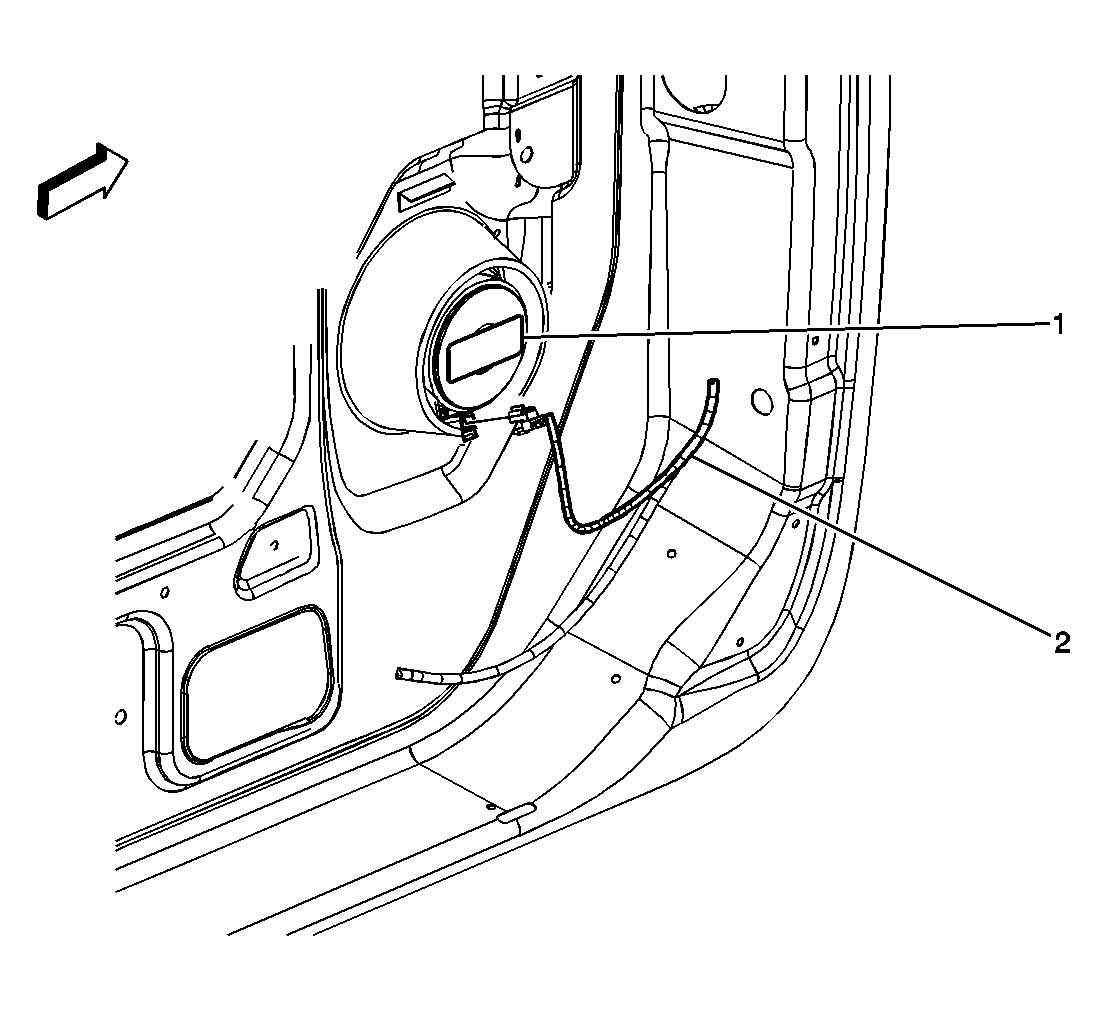

Fig 10: Speaker - RF Door

GM827338

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker-RF Door
2	RF Door Harness

Fig 11: Steering Wheel Controls

GM851228

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horn Switch
2	Steering Wheel Controls
3	Turn Signal/Multifunction Switch
