Installation Procedure

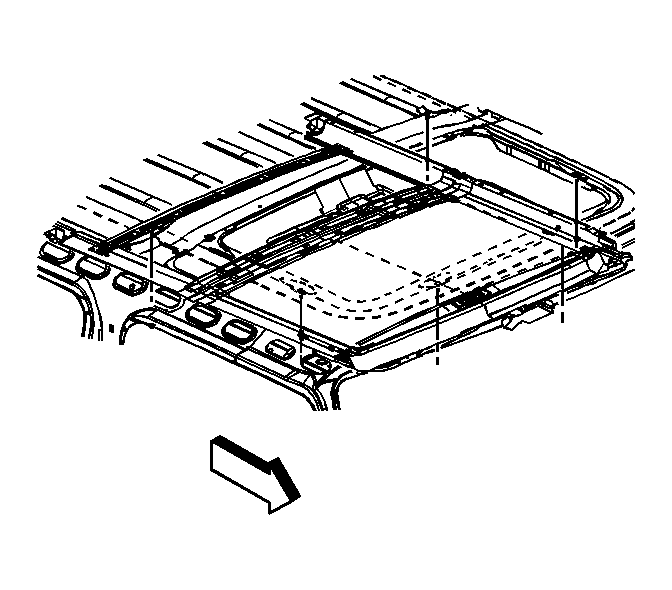

    Fig 1: Sunroof Module Assembly
    GM832111Courtesy of GENERAL MOTORS CORP.
  1. Install the sunroof module assembly to the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the retaining nuts to the sunroof module.

    Tighten:  Tighten the nuts to 9 N.m (80 lb in).

  3. Install the brackets to the sunroof module.
  4. Install the bolts to the sunroof module.

    Tighten:  Tighten the bolts to 9 N.m (80 lb in).

  5. Install the rear drain hoses. Refer to Sunroof Drain Hose Replacement - Rear (SUV) .
  6. Install the front drain hoses. Refer to Sunroof Drain Hose Replacement - Front
  7. Connect the electrical connector.
  8. Install the headliner. Refer to Headliner Replacement in Interior Trim.
