Power Door Systems Component Views

Fig 1: Driver Door Module (DDM) Connector Locations

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	DDM
2	DDM - C1 (Black)
3	DDM - C2 (Black)
4	Mirror Harness Connector - C3 (Blue)
5	Memory/Heated Seat Switch Connector - C5 (Green)
6	Mirror Harness Connector - C4 (Black)

Fig 2: Front Passenger Door Module (FPDM) Connector Locations

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	FPDM
2	Mirror Harness Connector - C4 (Black)
3	Memory/Heated Seat Switch Connector - C5 (Green)
4	Mirror Harness Connector - C3 (Blue)
5	FPDM - C2 (Black)
6	FPDM - C1 (Black)

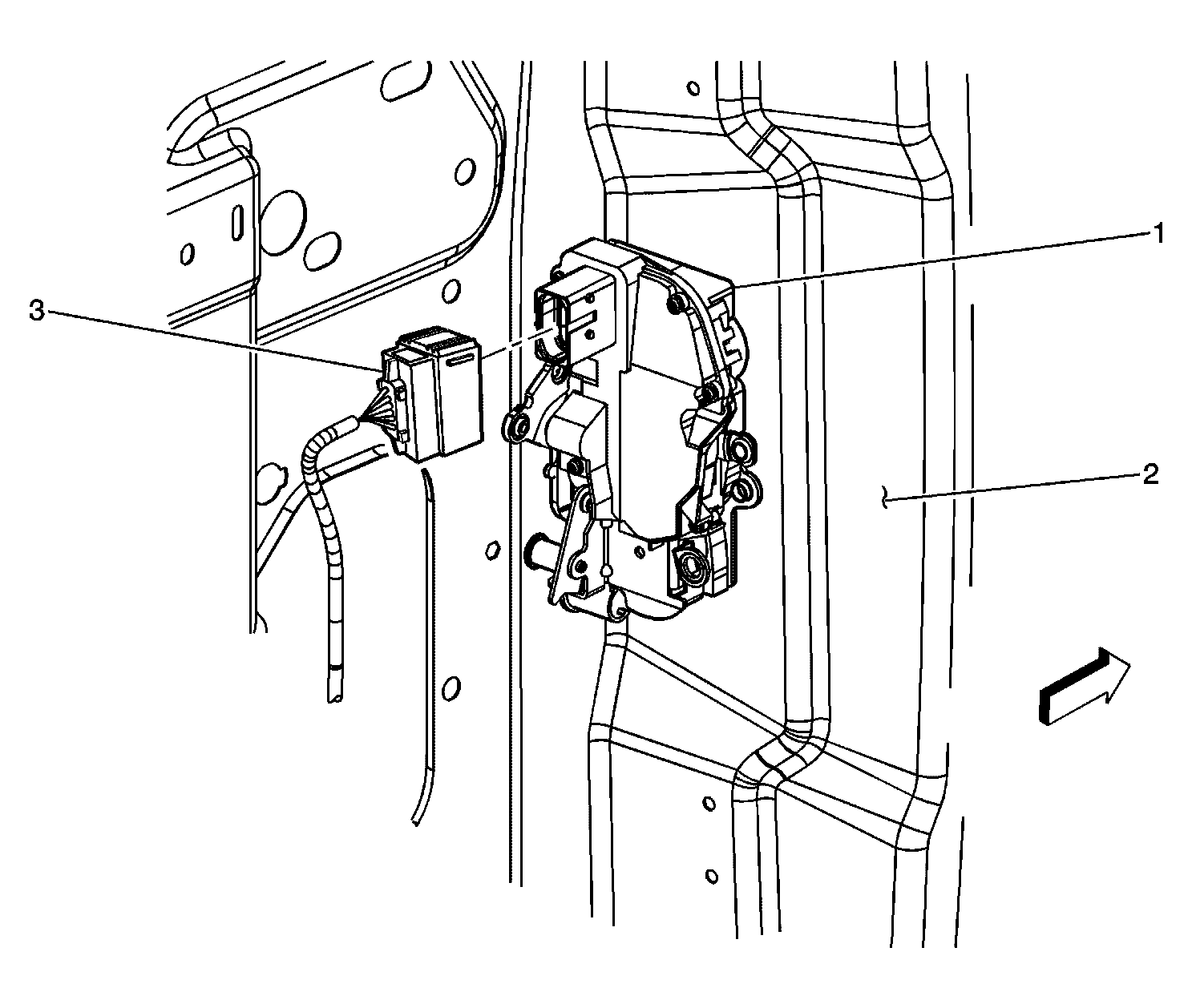

Fig 3: Door Latch Assembly - Driver

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch Assembly-Driver
2	Front Side Door Inner Panel
3	Door Latch Assembly-Driver Connector

Fig 4: Driver Door Module (DDM)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Door Lock Actuator - Liftgate

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center High Mounted Stop Lamp (CHMSL) Connector
2	Rear Window Defogger Grid Connector
3	Rear Window Defogger Grid Connector
4	Splice S900
5	Rear Window Wiper Module - w/Motor
6	Door Lock Actuator - Liftgate
7	Liftgate Ajar Switch - Left
8	Liftgate Ajar Switch - Right
9	Splice S902
10	Splice S901

Fig 6: Left Rear Door Component Views (RT Rear Door Similar)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Window Motor - LR
2	Door Window Motor Connector - LR
3	Door Harness Pass-Through Grommet
4	Door Window Switch - LR
5	Door Window Switch Connector - LR
6	Door Latch Assembly - LR
7	Speaker - LR Door

Fig 7: Door Lock Switch - Rear Cargo Area

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch Connector - Rear
2	Door Lock Switch - Rear
3	Rear Storage Bin

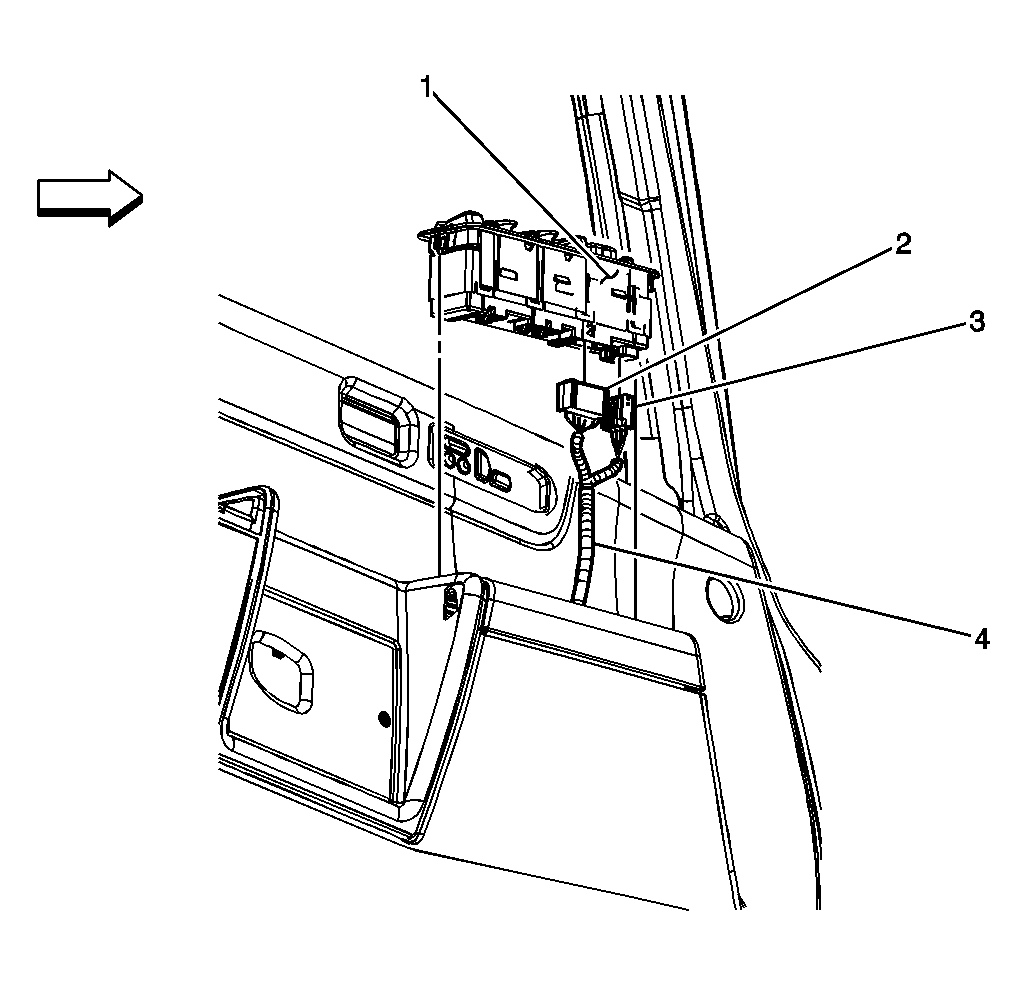

Fig 8: Front Passenger Door Module (FPDM)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Passenger Door Module (FPDM)
2	FPDM-C2
3	Passenger Inner Side Door Panel
4	FPDM-C1

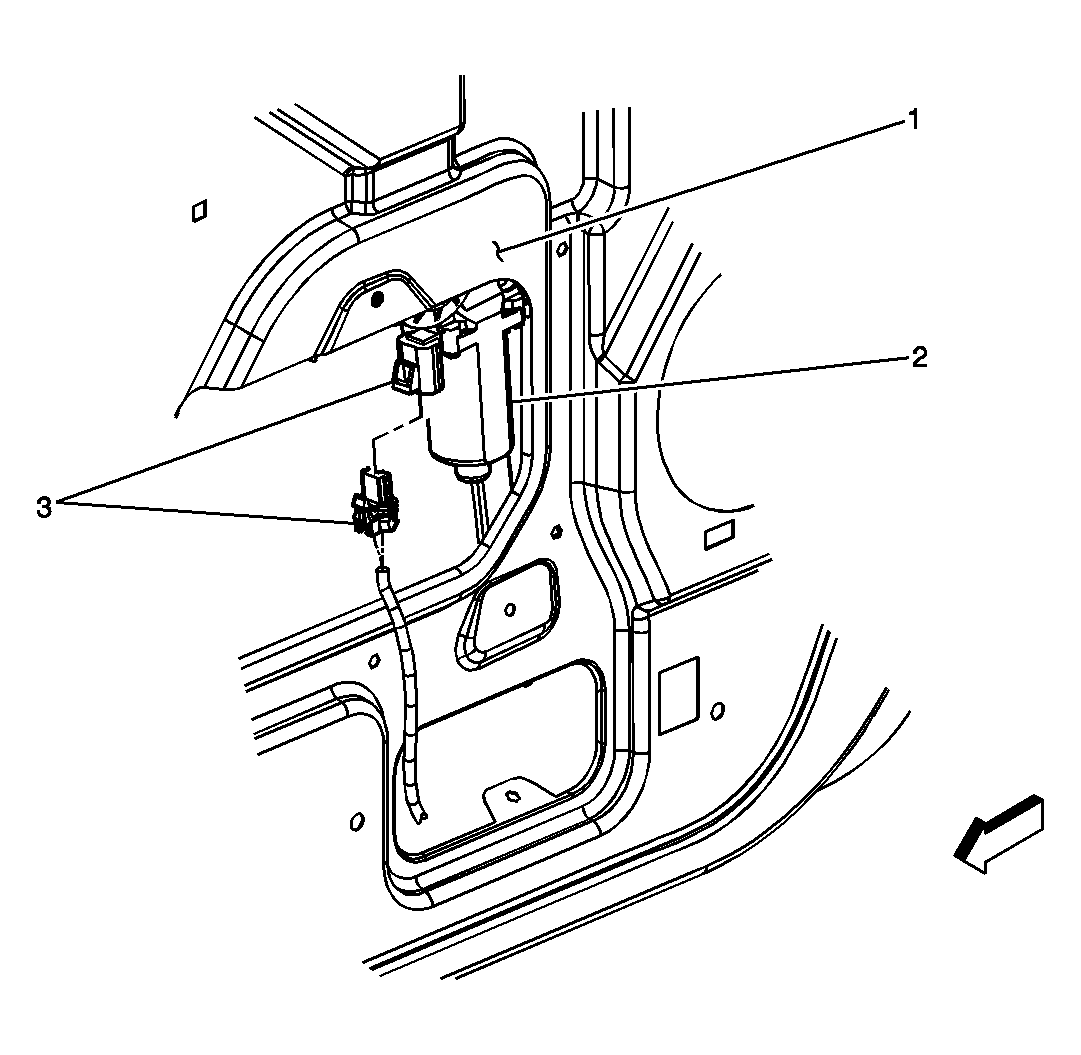

Fig 9: Window Motor-Front Passenger

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inner Side Panel
2	Window Motor-Front Passenger
3	Window Motor Connector
