Installation Procedure

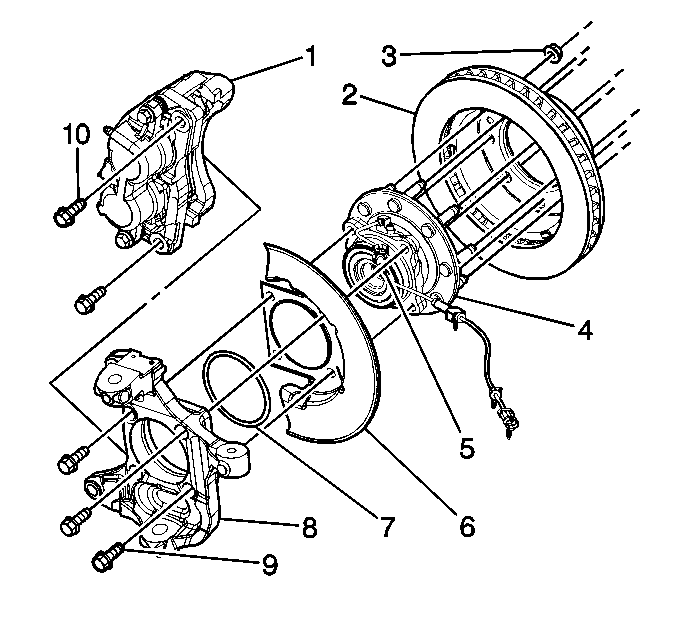

    Fig 1: Identifying Brake/Hub Components
    GM379487Courtesy of GENERAL MOTORS CORP.
  1. Install the WSS (5) into the hub/bearing assembly (4).
    2. NOTE: Refer to Fastener Notice .
  2. Install the WSS mounting bolt.

    Tighten:  Tighten the WSS mounting bolt to 18 N.m (13 lb ft).

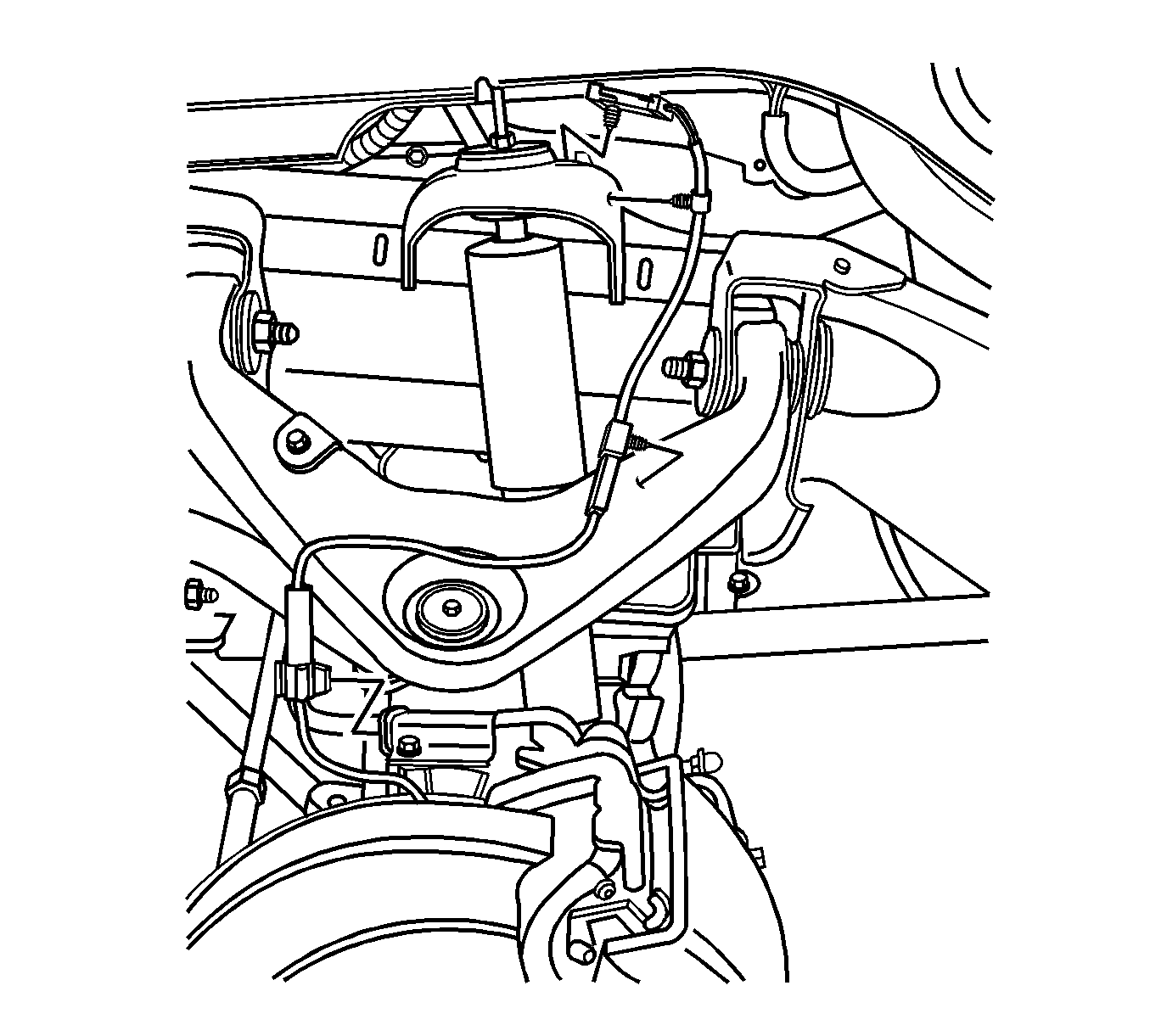

    3. Fig 2: View Of Wheel Speed Sensor Cable And Connectors
    GM913362Courtesy of GENERAL MOTORS CORP.
  3. Install the WSS cable mounting clip to the knuckle.
  4. Install the WSS cable mounting clip to the upper control arm.
  5. Install the WSS cable mounting clip to the frame attachment point.
  6. Connect the WSS cable electrical connector.
  7. Install the brake rotor. Refer to Brake Rotor - Front .
  8. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
  9. Return to Diagnostic Starting Point - Antilock Brake System .
