Connector Identification

Fig 1: Identifying PCM Connector C1 Terminals (1 Of 3)
G00113350Courtesy of GENERAL MOTORS CORP.

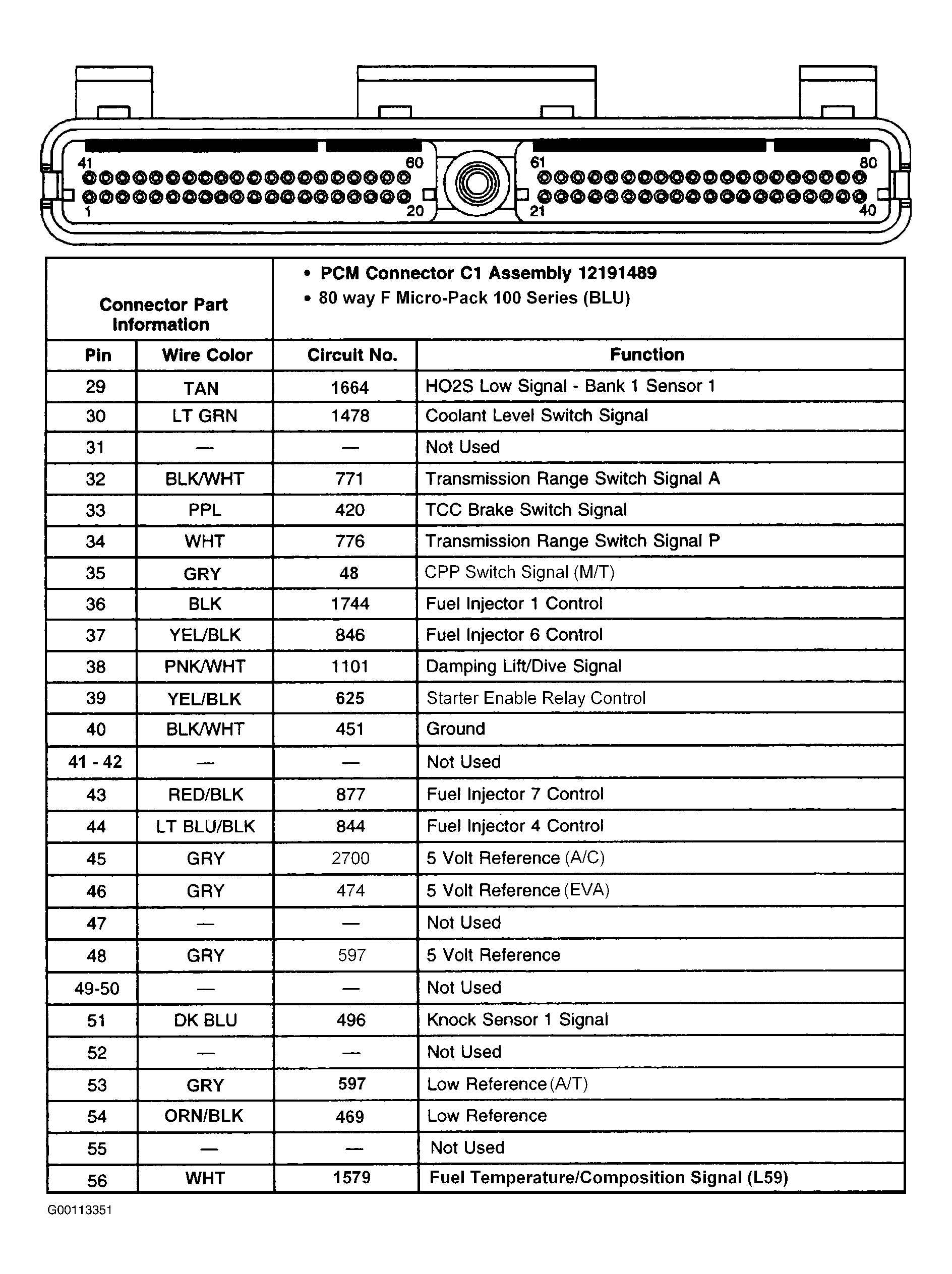

Fig 2: Identifying PCM Connector C1 Terminals (2 Of 3)
G00113351Courtesy of GENERAL MOTORS CORP.

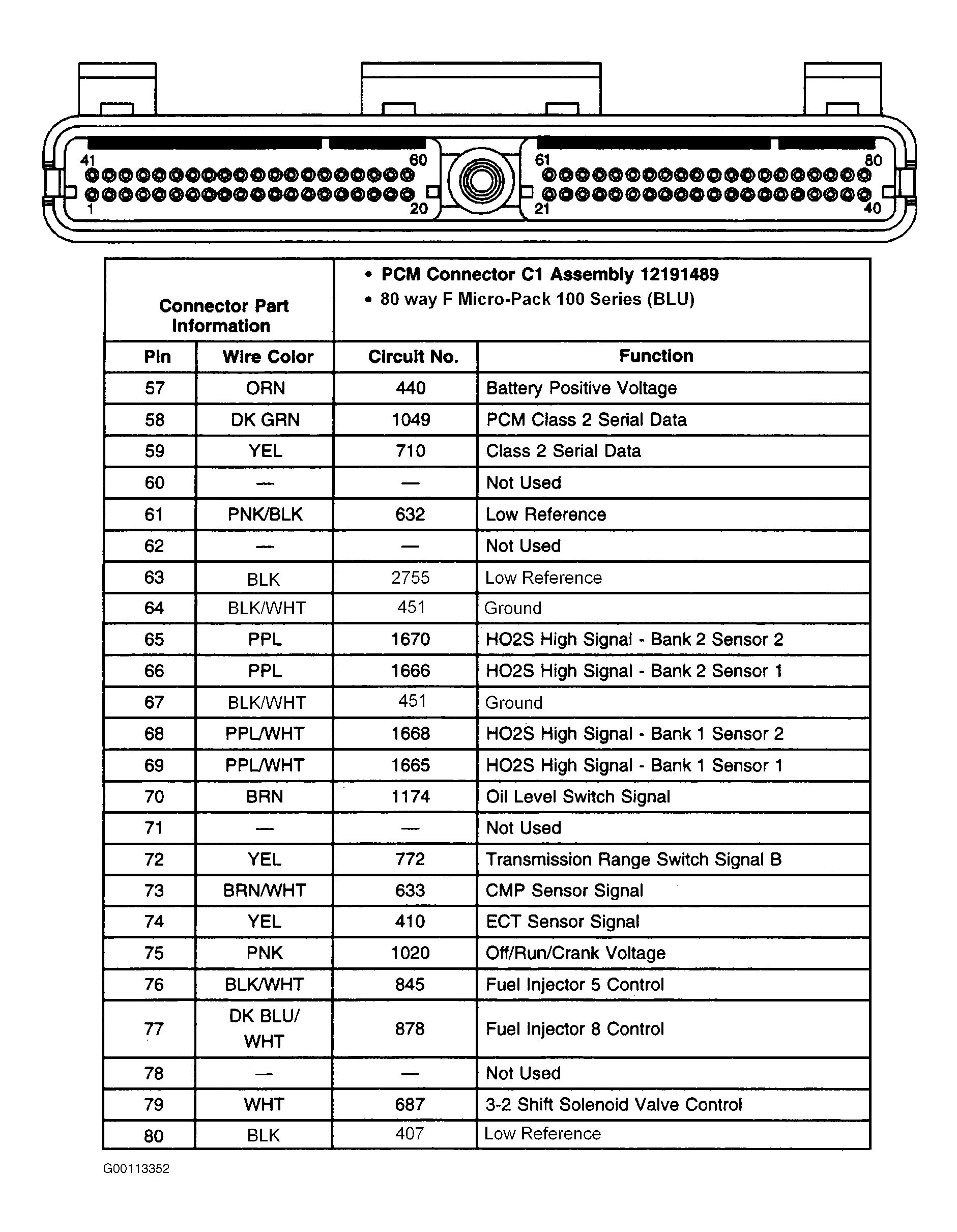

Fig 3: Identifying PCM Connector C1 Terminals (3 Of 3)
G00113352Courtesy of GENERAL MOTORS CORP.

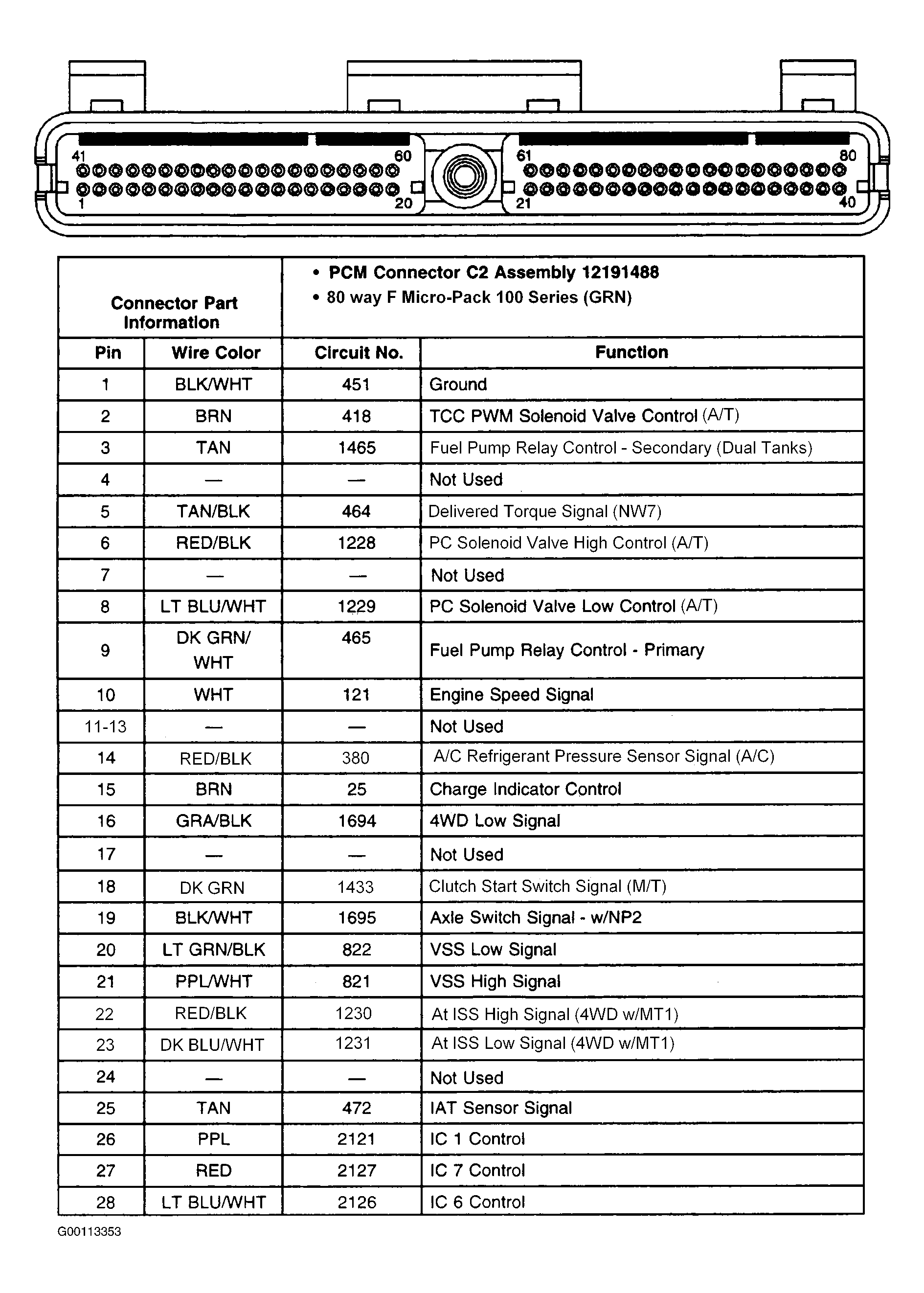

Fig 4: Identifying PCM Connector C2 Terminals (1 Of 3)
G00113353Courtesy of GENERAL MOTORS CORP.

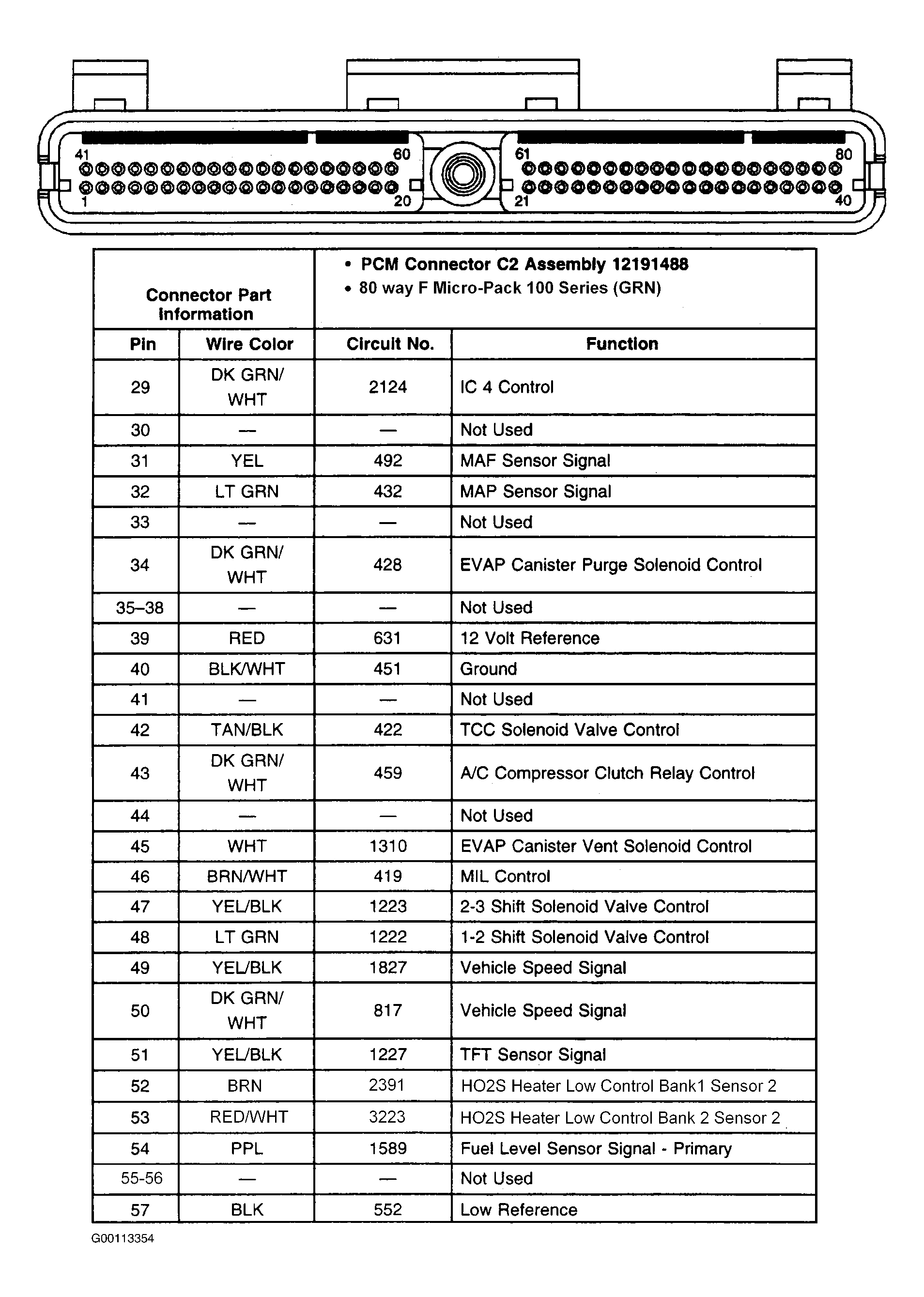

Fig 5: Identifying PCM Connector C2 Terminals (2 Of 3)
G00113354Courtesy of GENERAL MOTORS CORP.
Fig 6: Identifying PCM Connector C2 Terminals (3 Of 3)
G00113355Courtesy of GENERAL MOTORS CORP.
