Throttle Actuator Control Module Connector End View C1

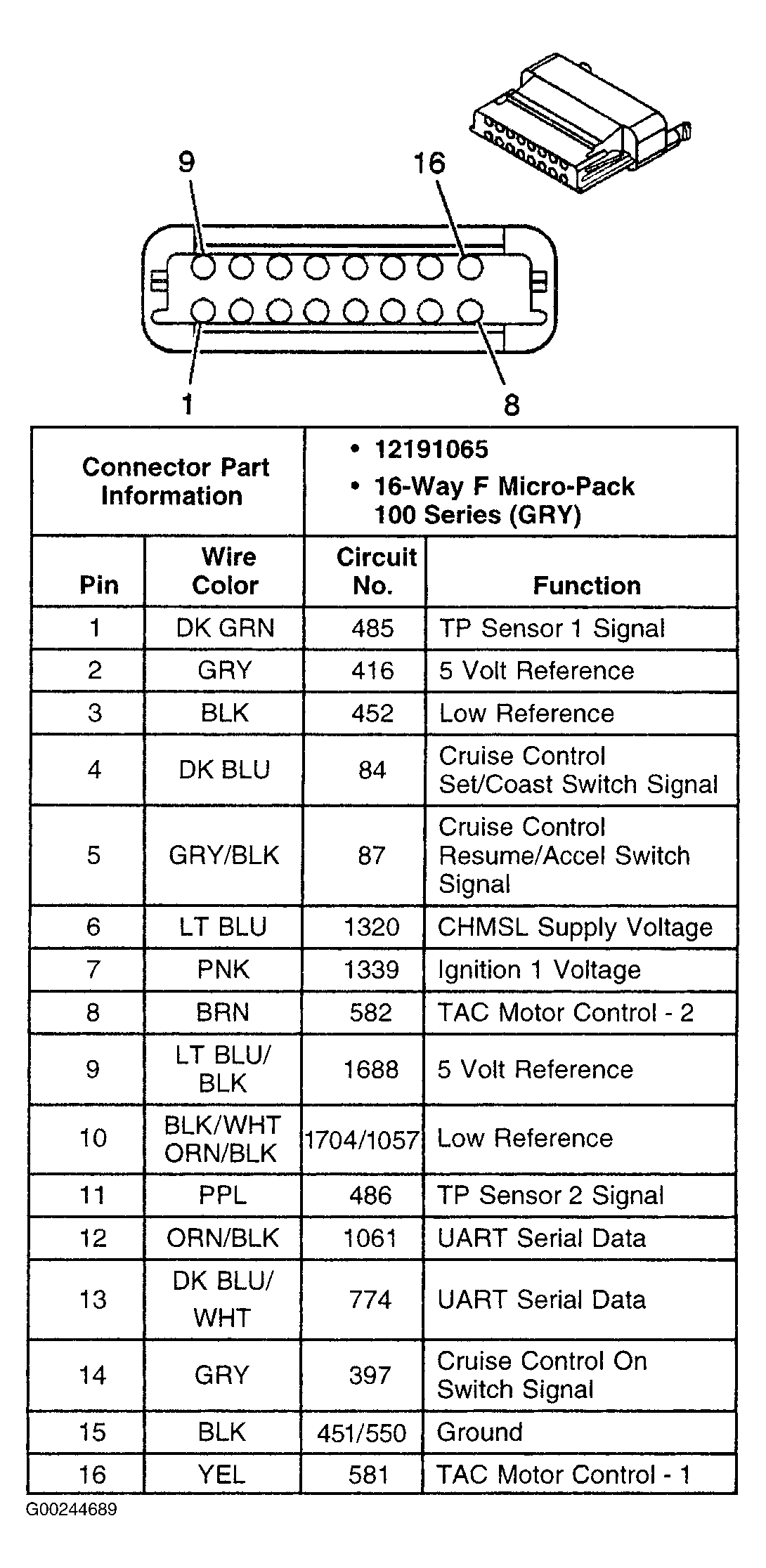

Fig 1: Throttle Actuator Control Module C1 Connector End View

G00244689

Courtesy of GENERAL MOTORS CORP.
