Instrument Panel Fuse Block

NOTE: Instrument panel fuse block is located at left end of instrument panel. See Fig 1 .

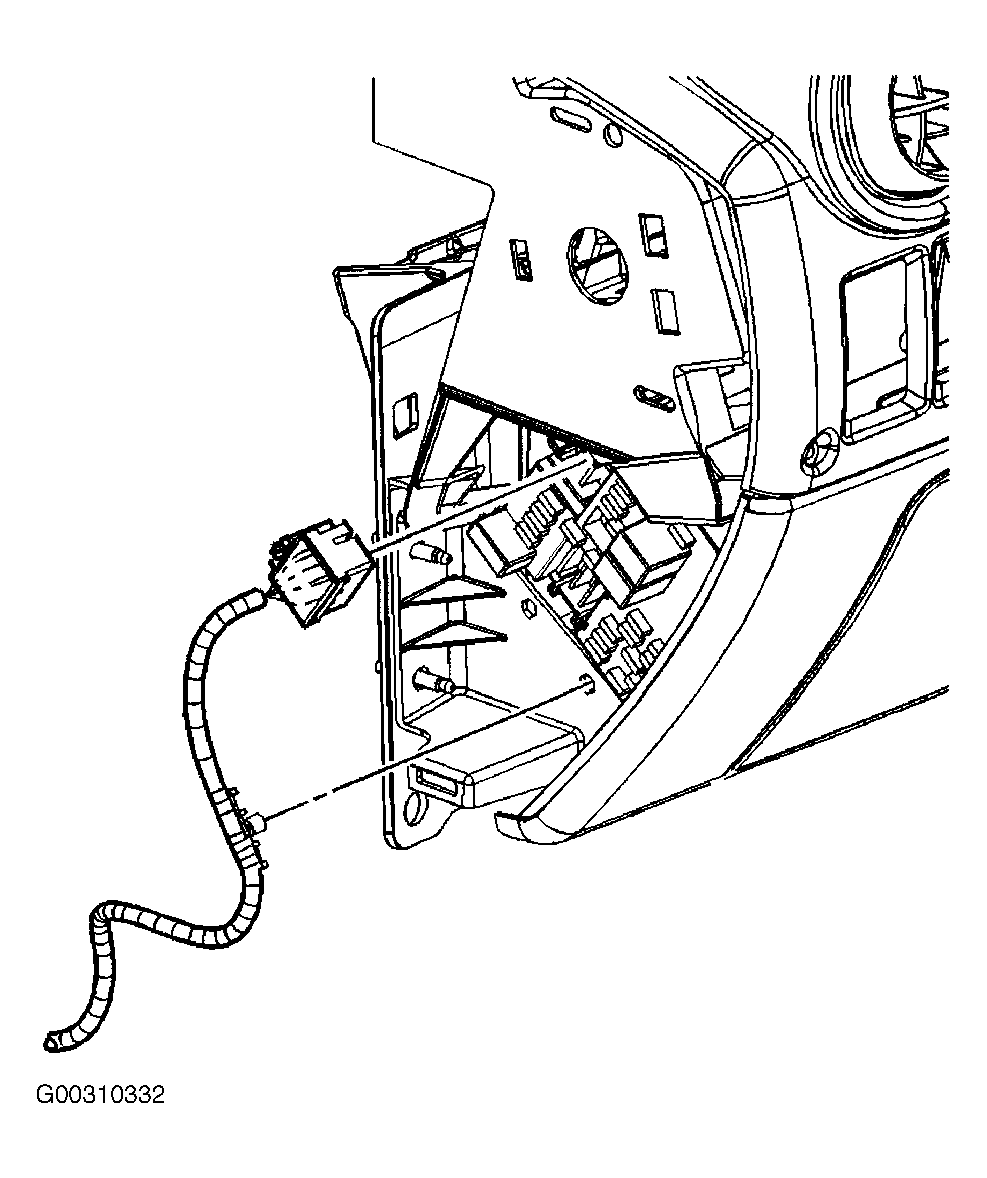

Fig 1: Locating Instrument Panel Fuse Block

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Instrument Panel Fuse Block Components

Courtesy of GENERAL MOTORS CORP.

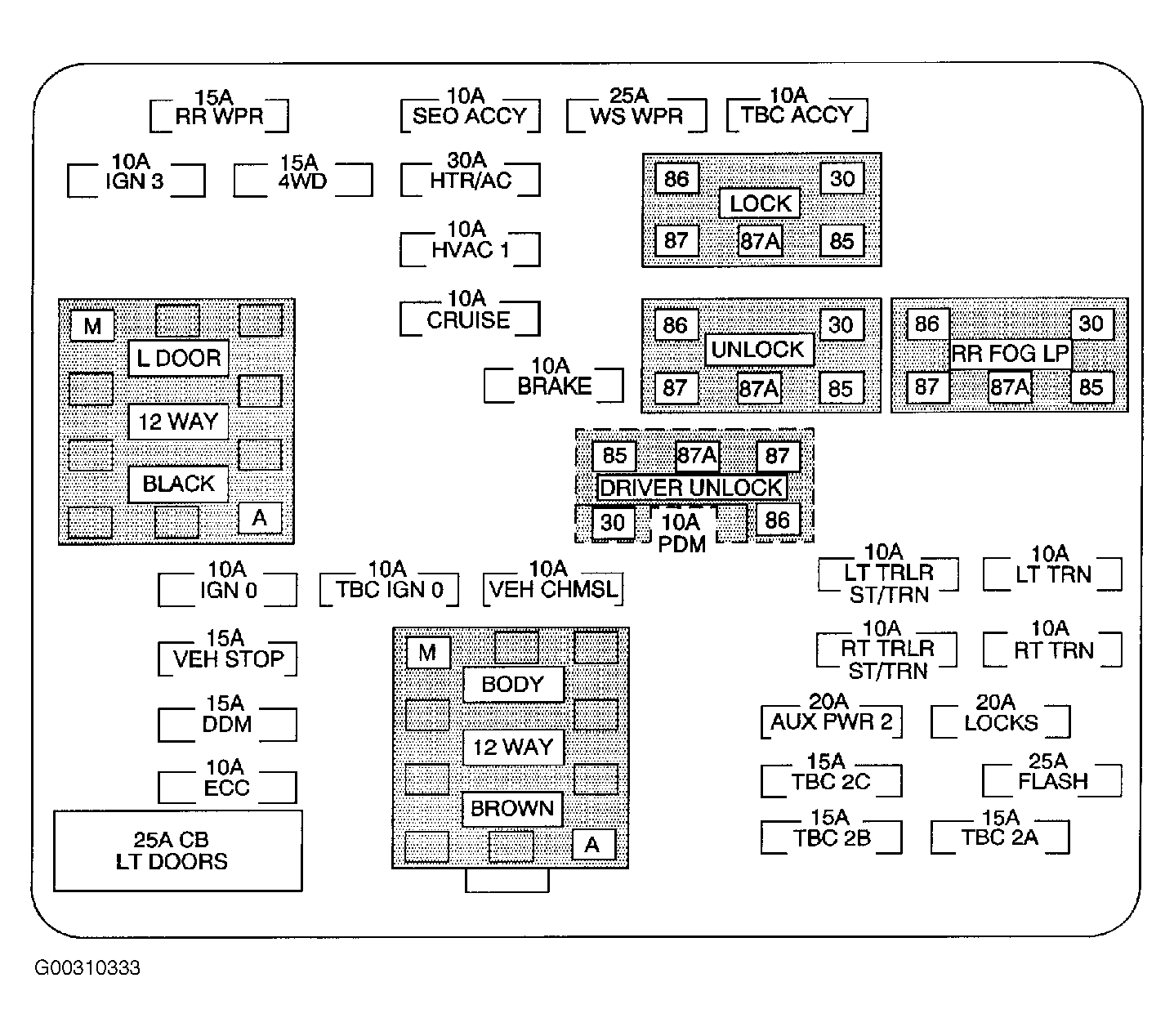

Fig 3: Instrument Panel Fuse Block Legend - 1 Of 2 (2003 & 2004)

Courtesy of GENERAL MOTORS CORP.

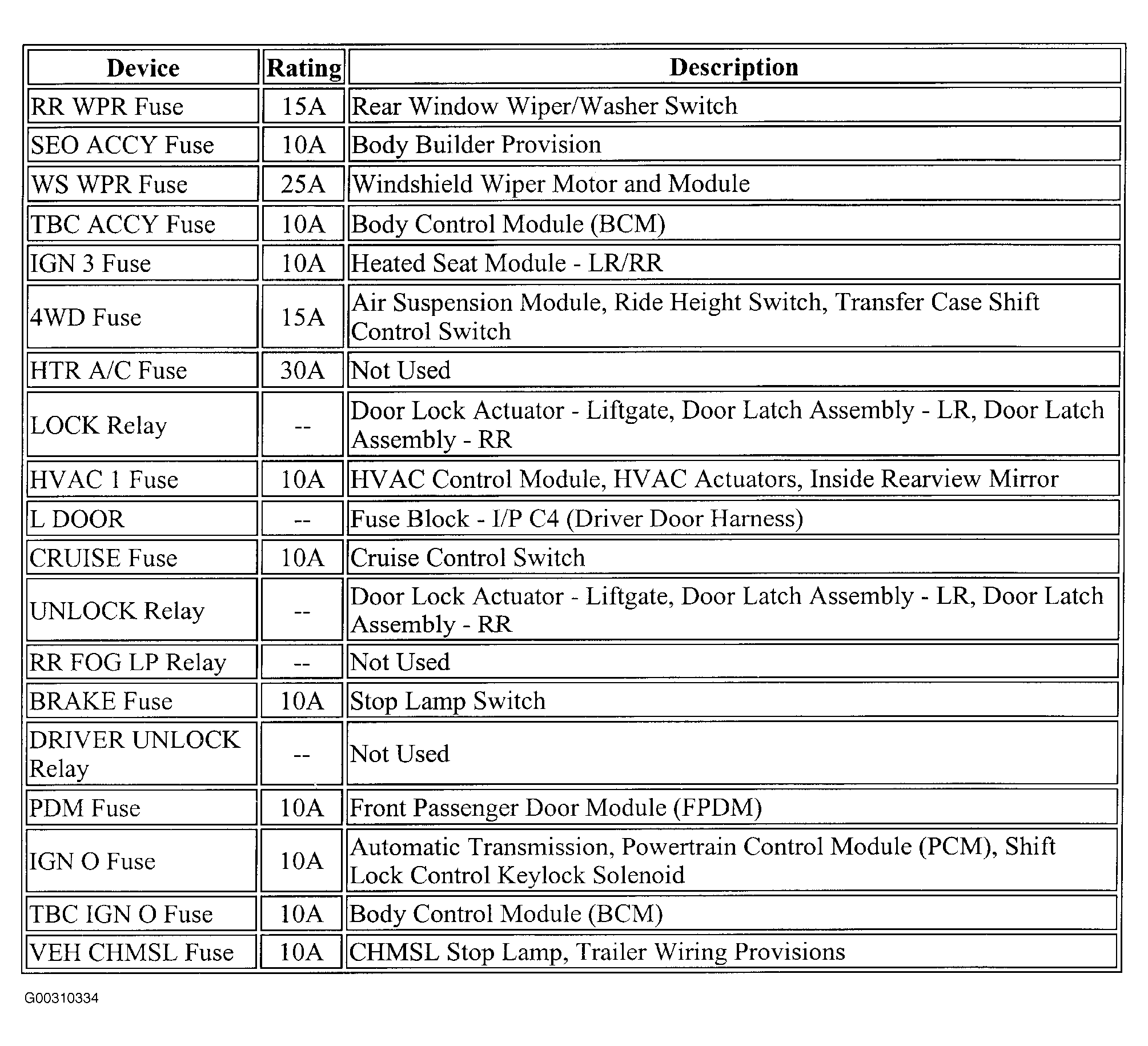

Fig 4: Instrument Panel Fuse Block Legend - 2 Of 2 (2003)

Courtesy of GENERAL MOTORS CORP.

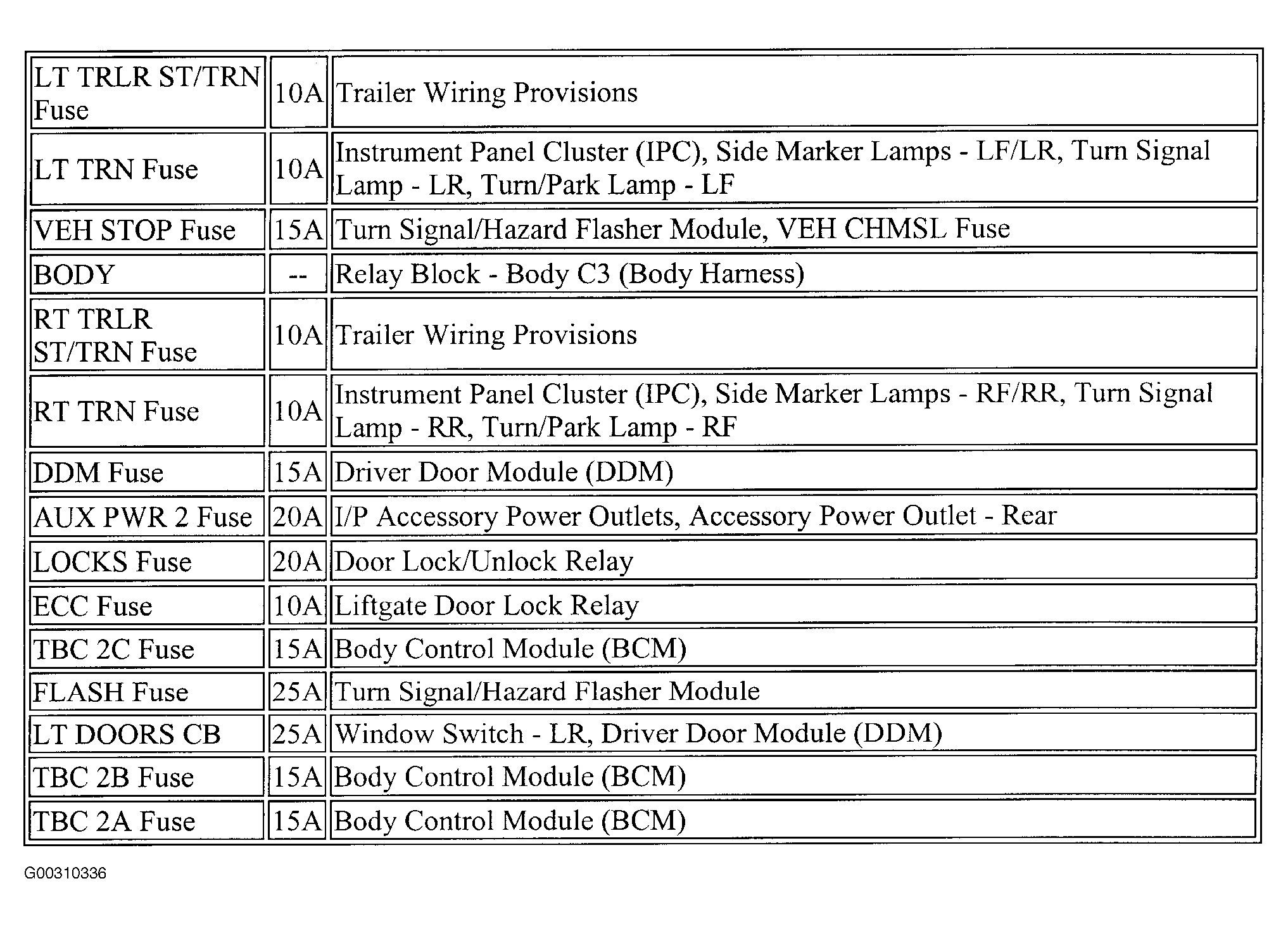

Fig 5: Instrument Panel Fuse Block Legend - 2 Of 2 (2004)

Courtesy of GENERAL MOTORS CORP.
