Instrument Panel Relay Block

NOTE: Instrument panel relay block is located at lower left corner of instrument panel. See Fig 1 .

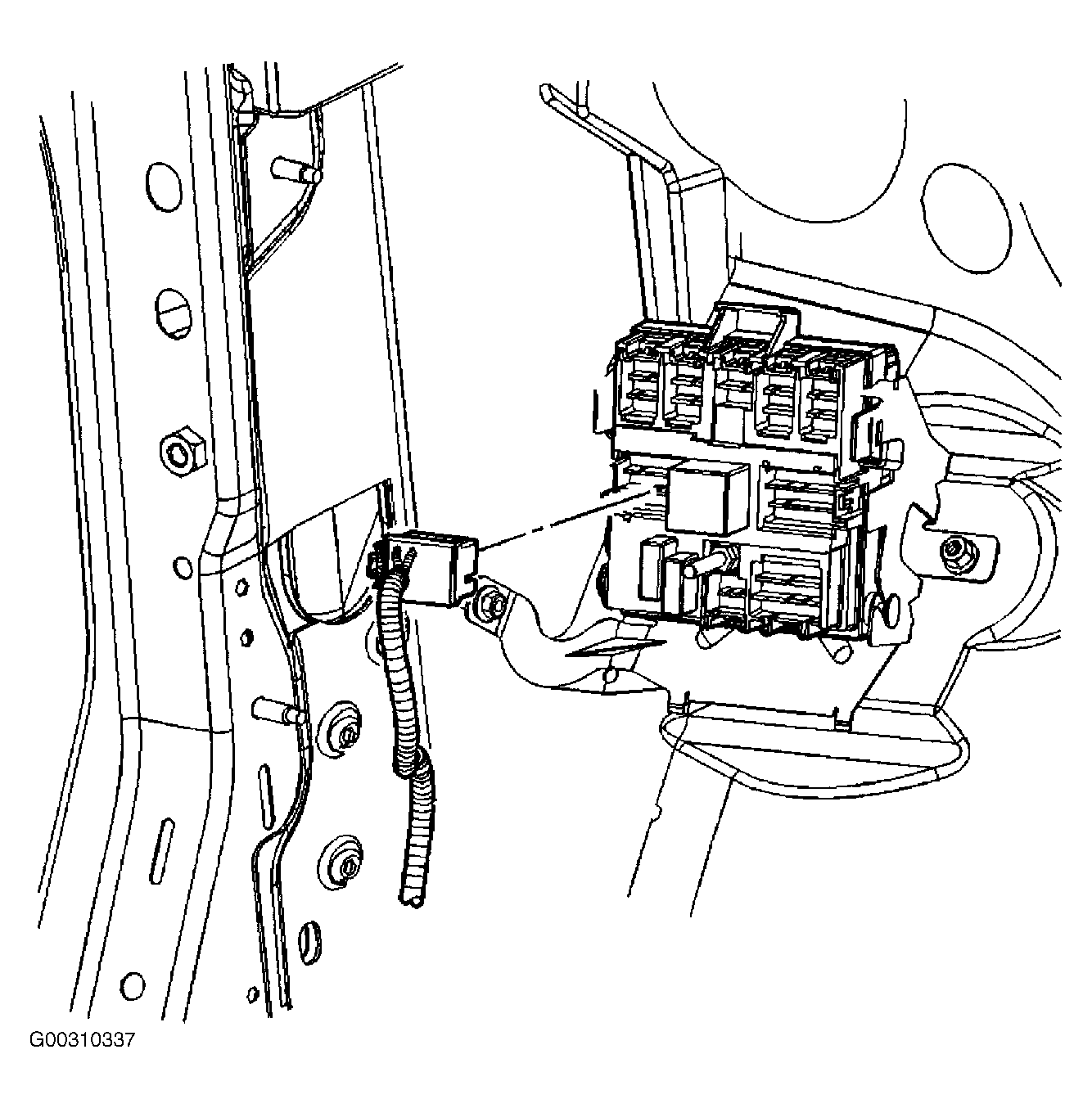

Fig 1: Locating Instrument Panel Relay Block
G00310337Courtesy of GENERAL MOTORS CORP.

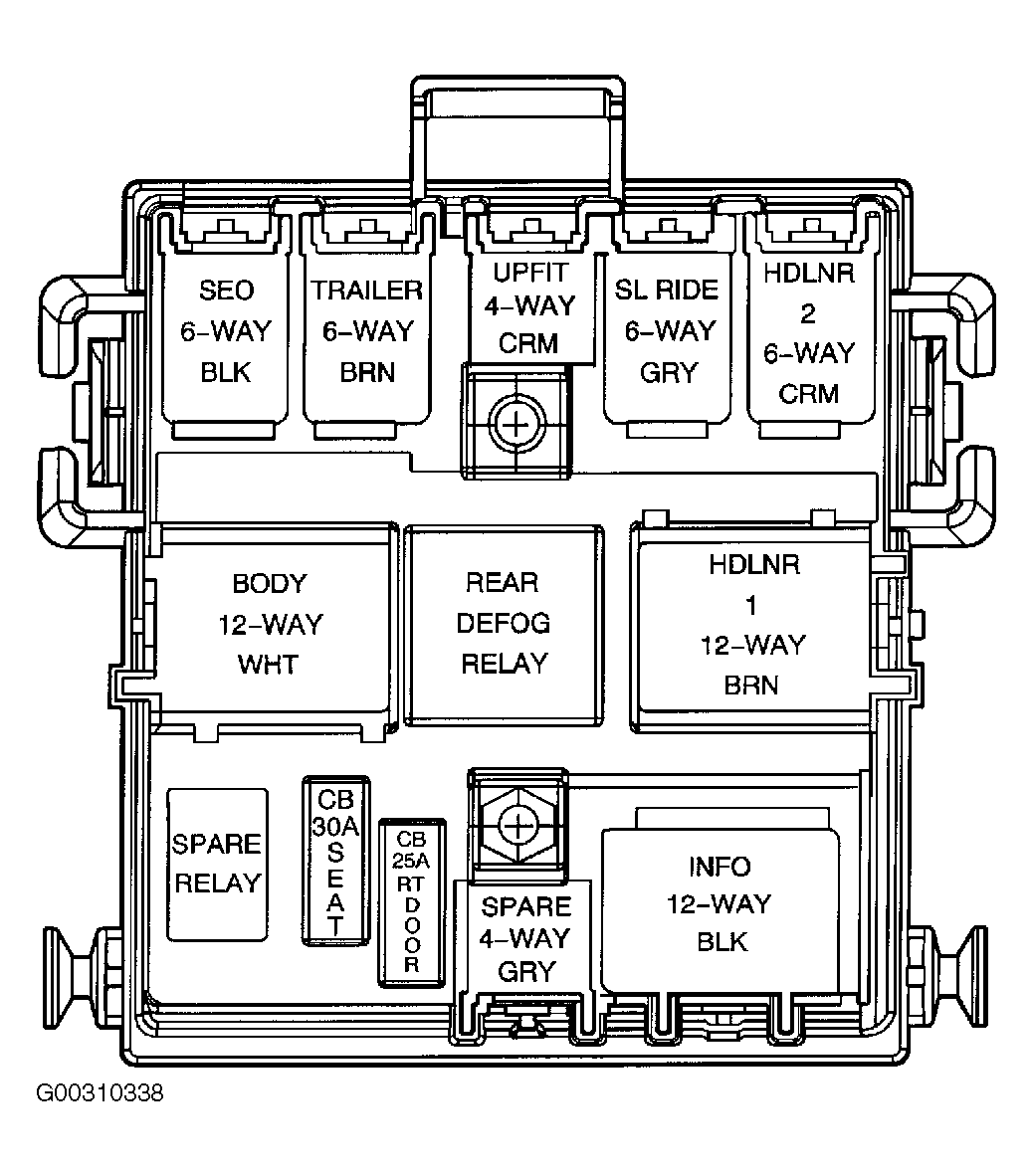

Fig 2: Identifying Instrument Panel Relay Block Components
G00310338Courtesy of GENERAL MOTORS CORP.

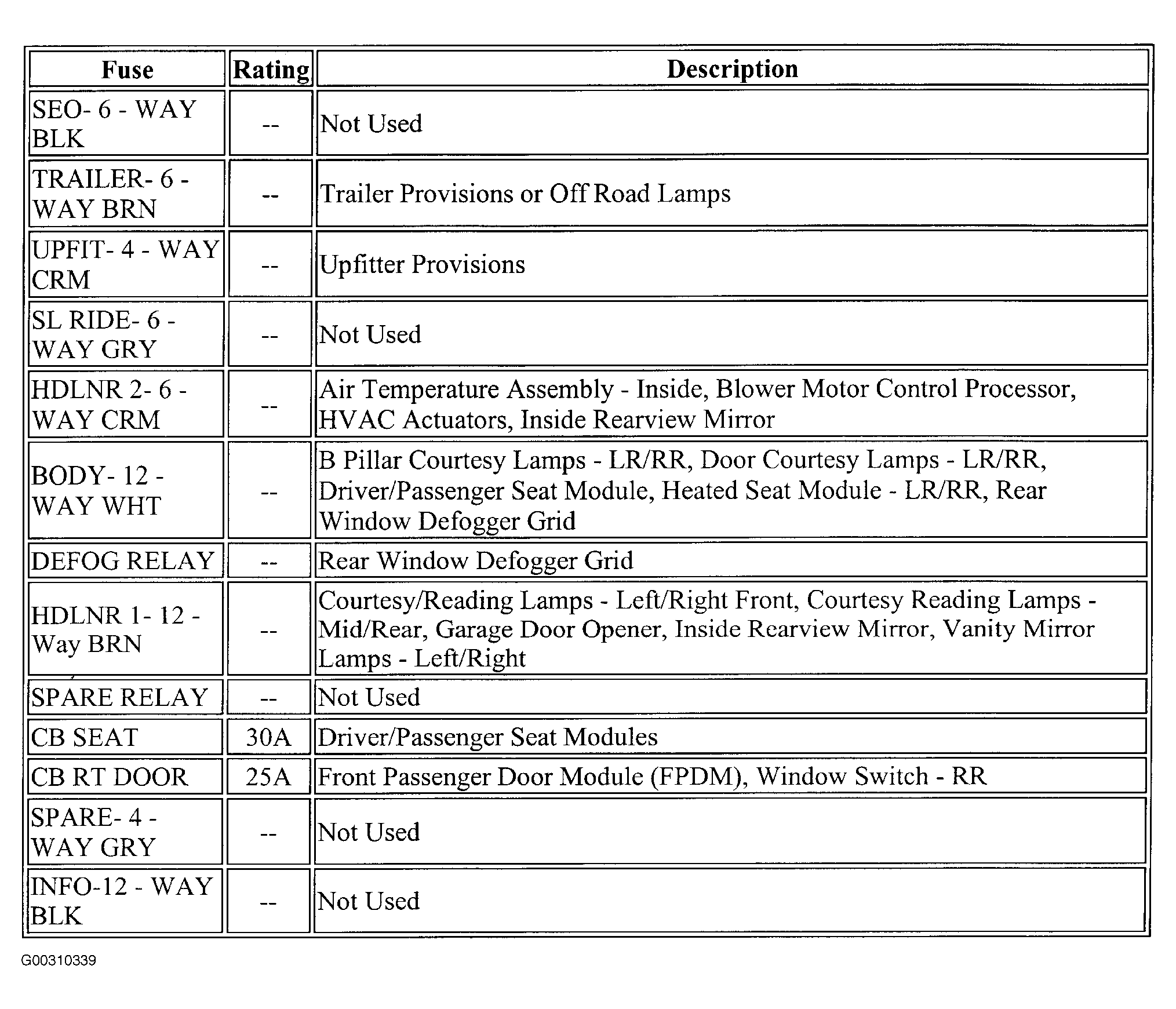

Fig 3: Instrument Panel Relay Block Legend
G00310339Courtesy of GENERAL MOTORS CORP.
