NOTE:
Refer to illustrations to identify SIR connector terminals. See Fig 1 - Fig 6
.

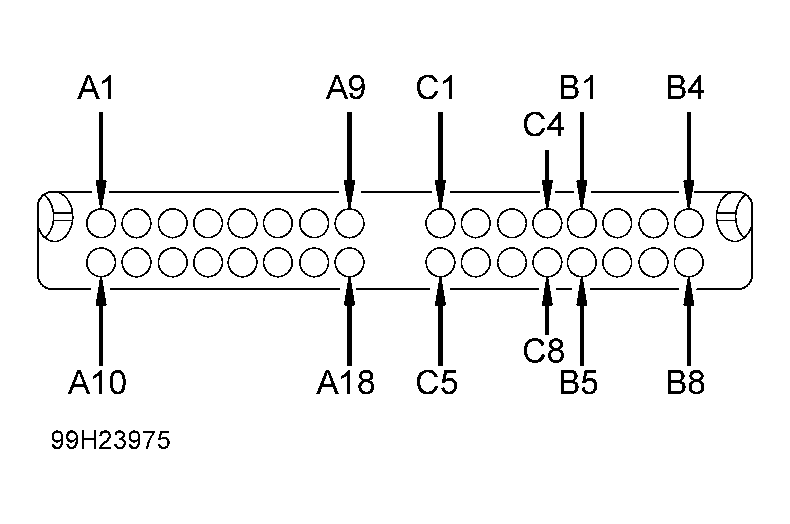

Fig 1: Identifying SDM Connector Terminals
Courtesy of GENERAL MOTORS CORP.

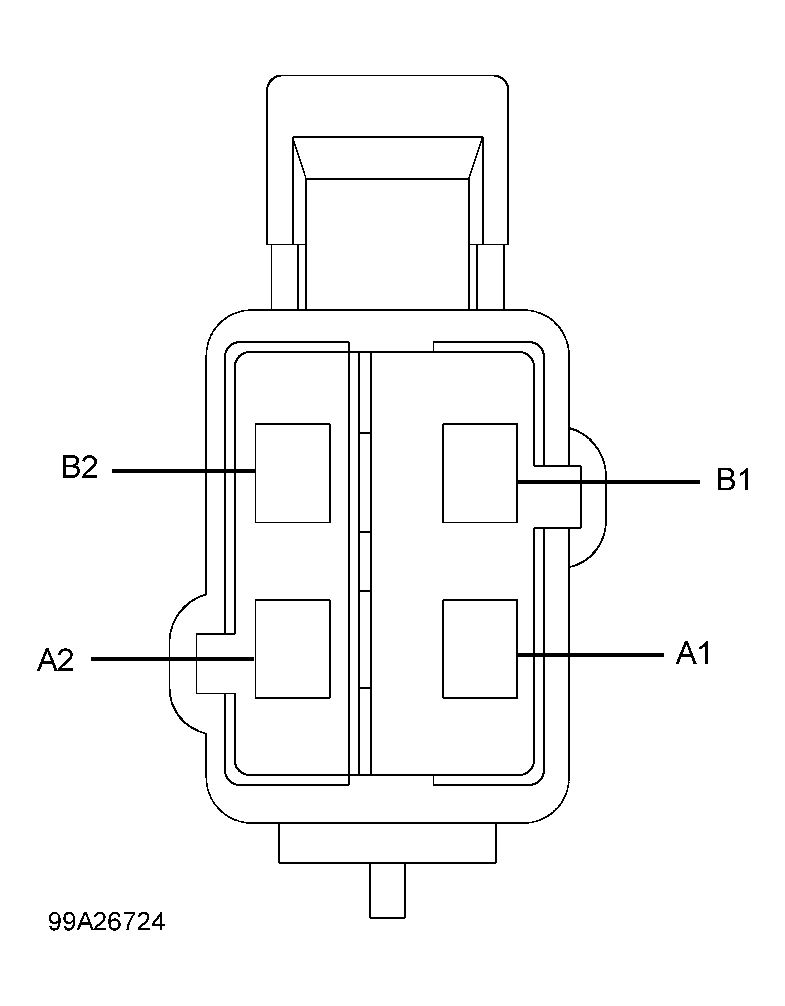

Fig 2: Identifying Driver-side Air Bag Module Connector Terminals
Courtesy of GENERAL MOTORS CORP.

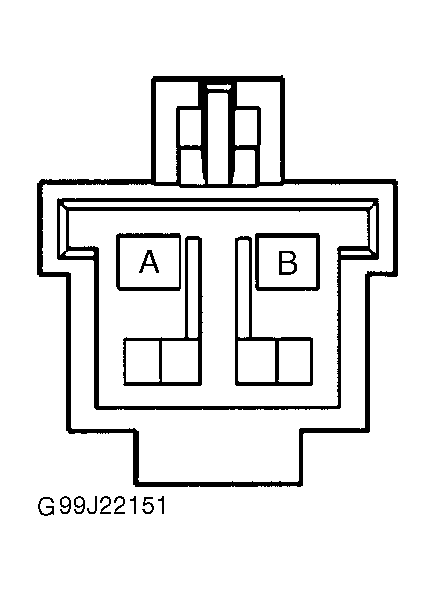

Fig 3: Identifying Passenger-side Air Bag Module Connector Terminals
Courtesy of GENERAL MOTORS CORP.

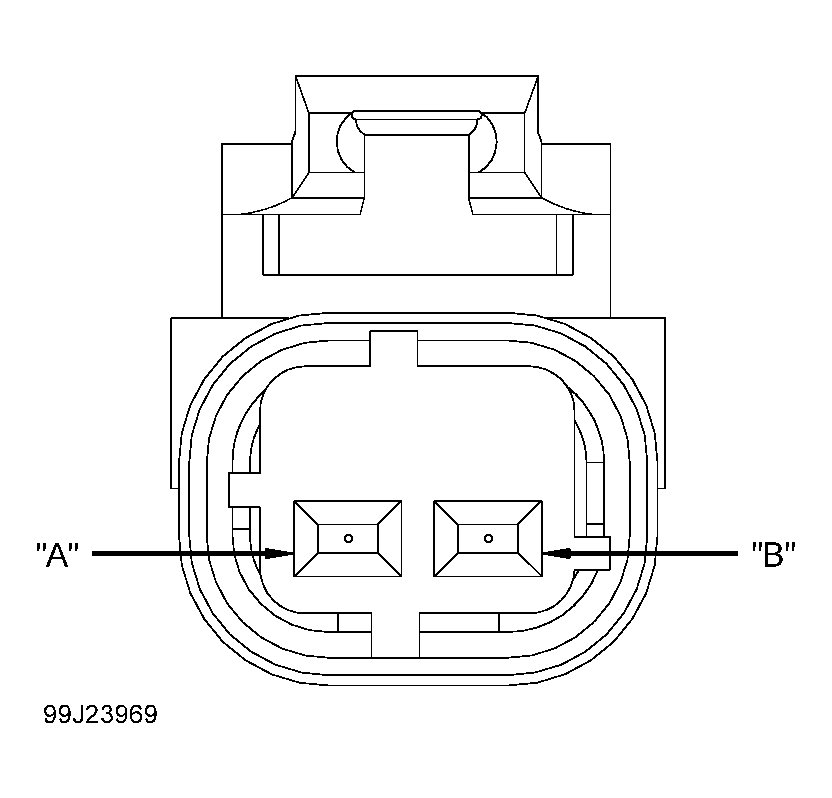

Fig 4: Identifying Side Impact Air Bag Module Terminals
Courtesy of GENERAL MOTORS CORP.

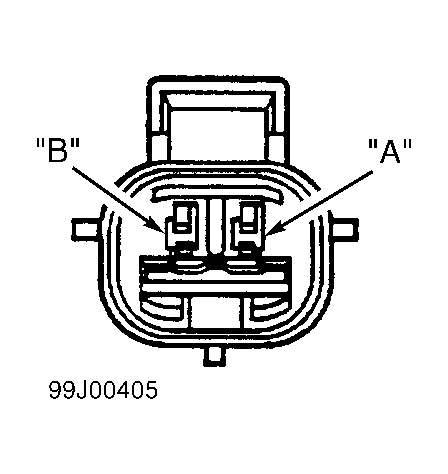

Fig 5: Identifying Side Impact Sensor (SIS) Connector Terminals
Courtesy of GENERAL MOTORS CORP.

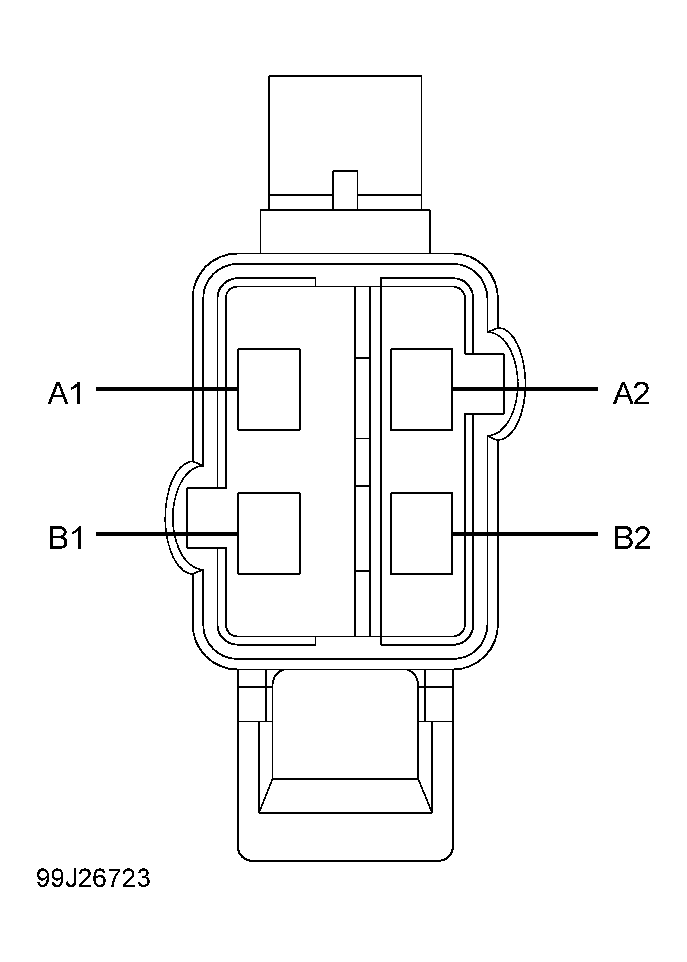

Fig 6: Identifying Front End Discriminating Sensor Connector Terminals
