Auto Leveling Sensor Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Jack up the vehicle and remove the left rear wheel and tire.
- Disconnect the connector.

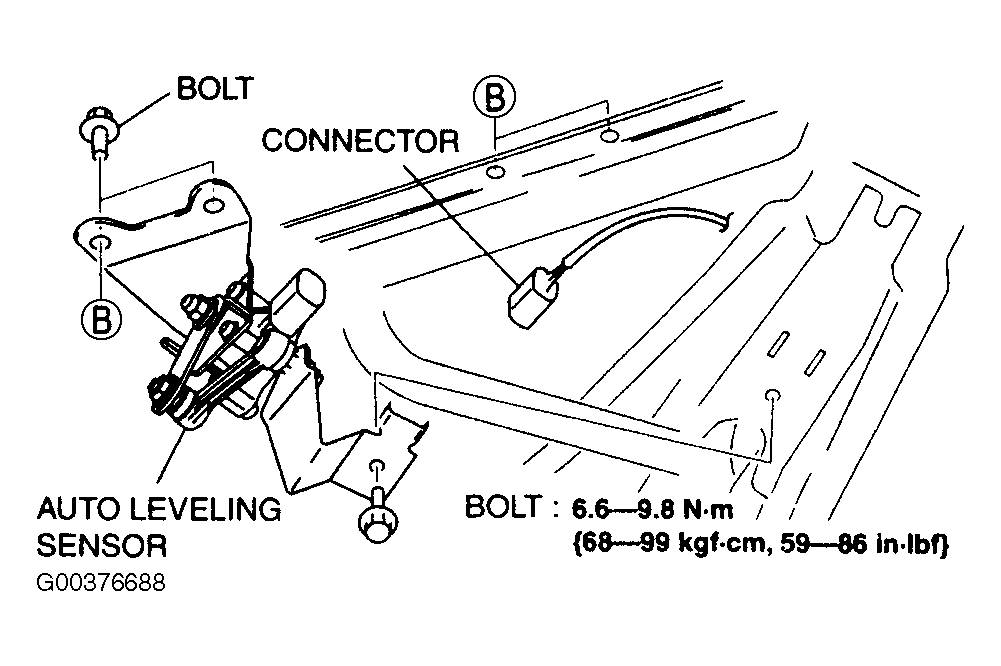

- Remove the bolts, then remove the auto leveling sensor.
- Install in the reverse order of removal.
