Abs Connector End Views

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

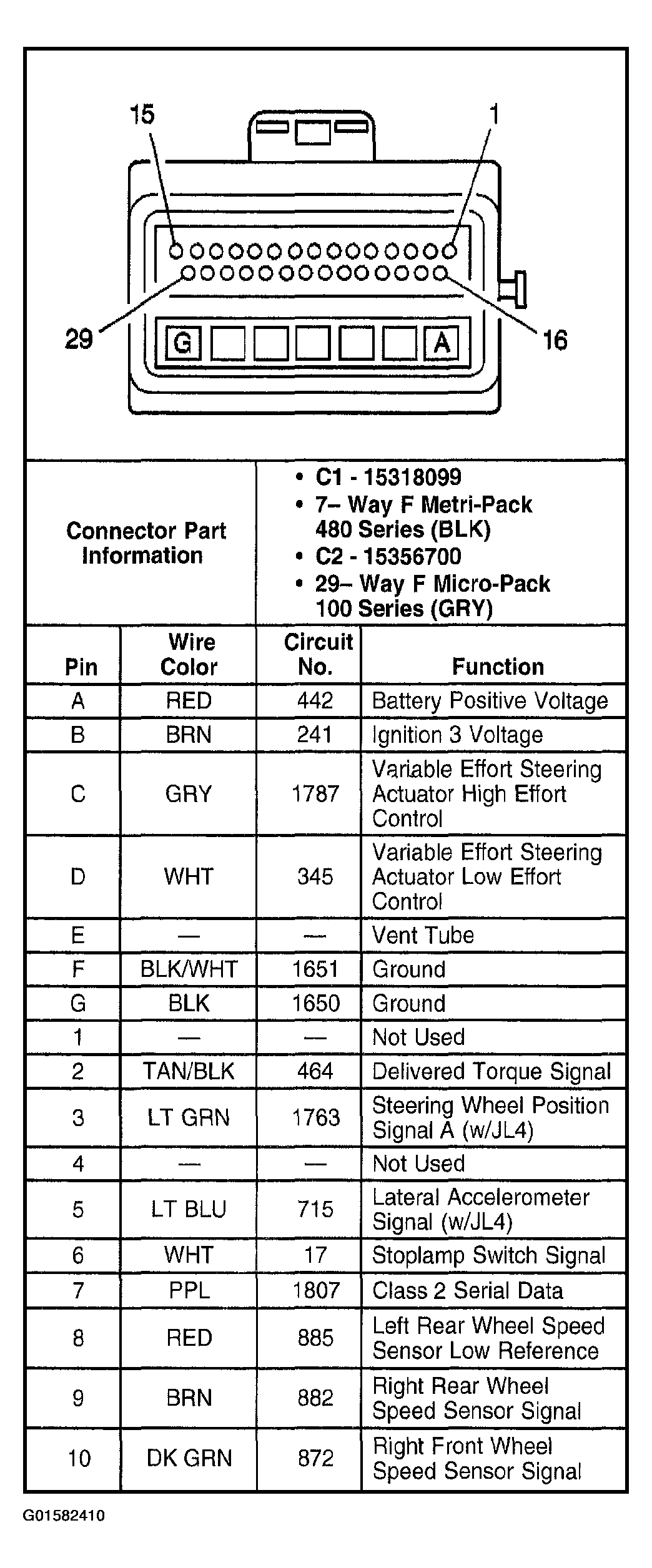

Fig 1: Electronic Brake Control Module (EBCM) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

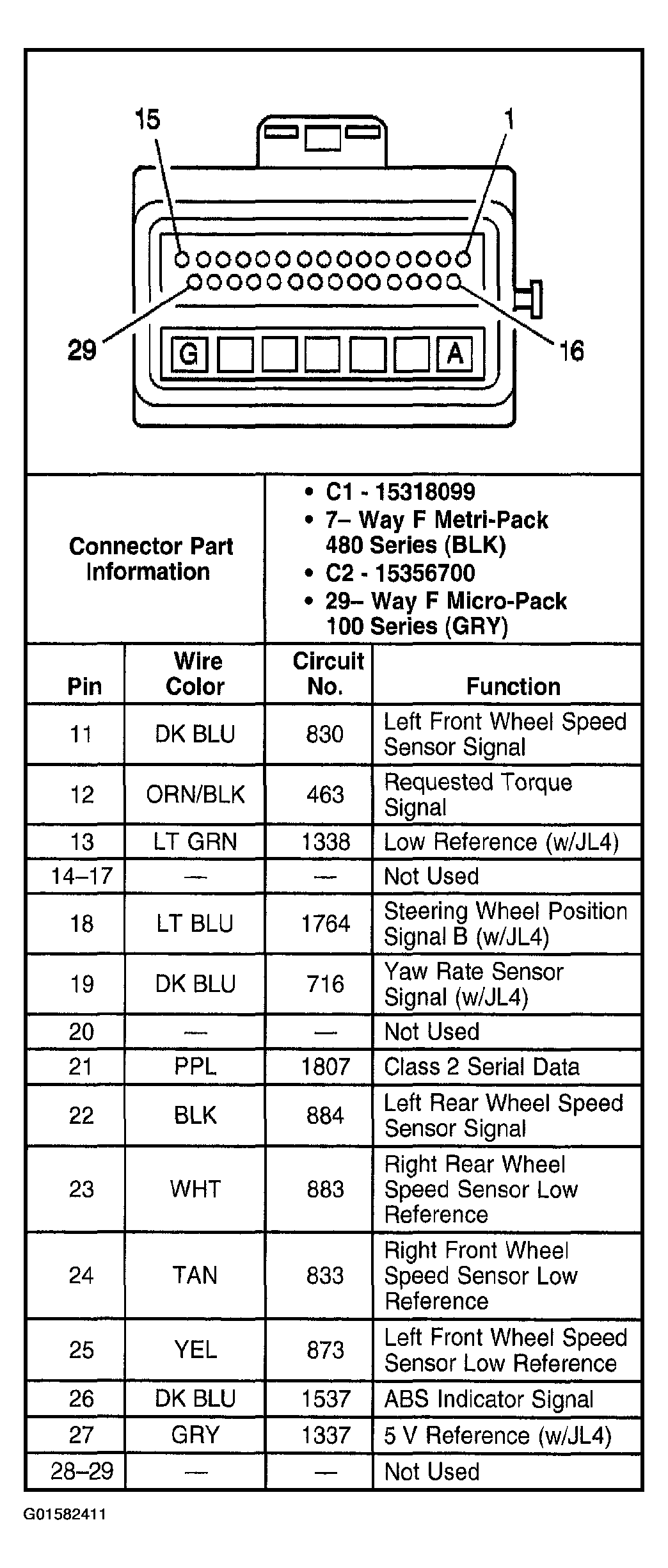

Fig 2: Electronic Brake Control Module (EBCM) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

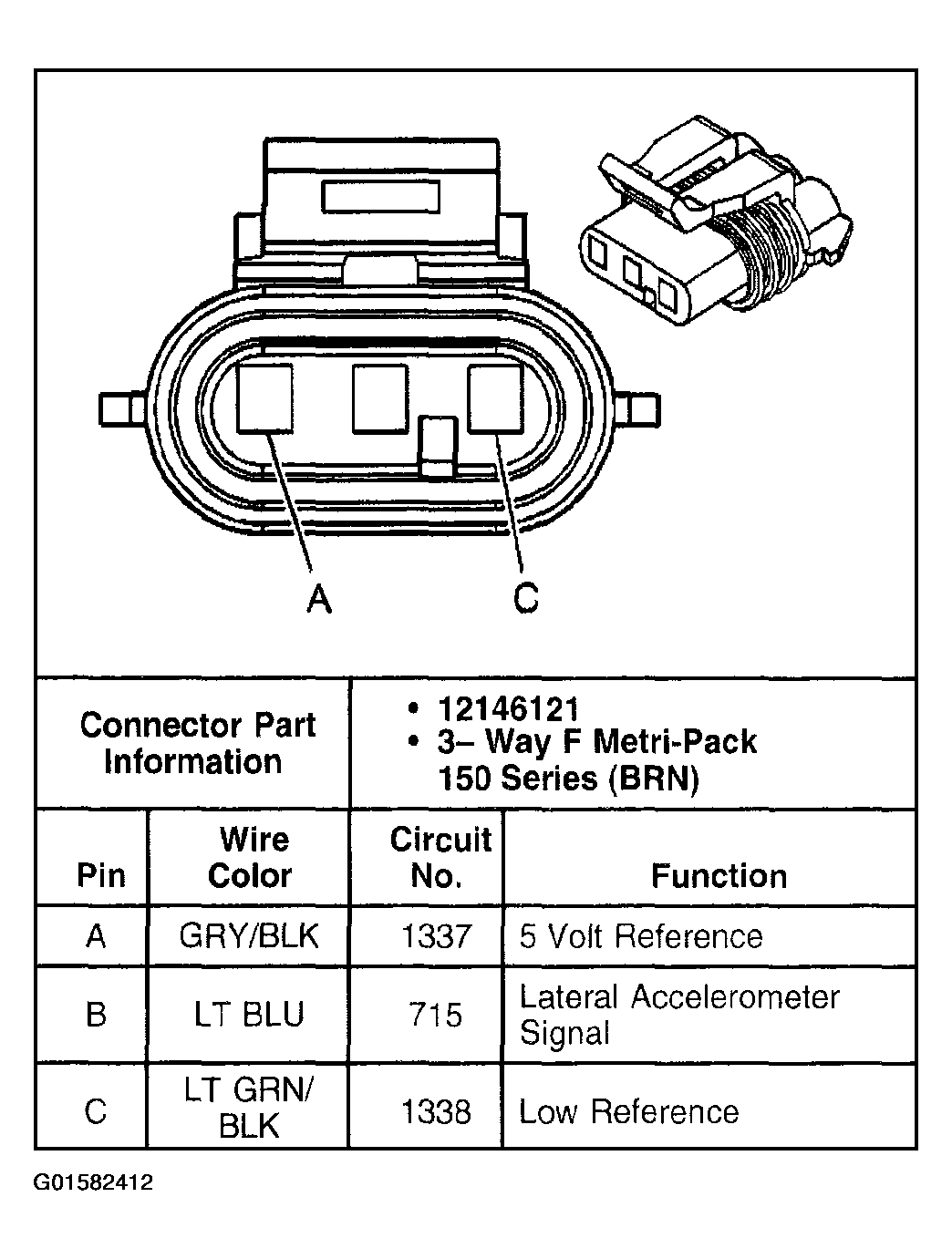

Fig 3: Lateral Accelerometer Sensor (w/JL4)

Courtesy of GENERAL MOTORS CORP.

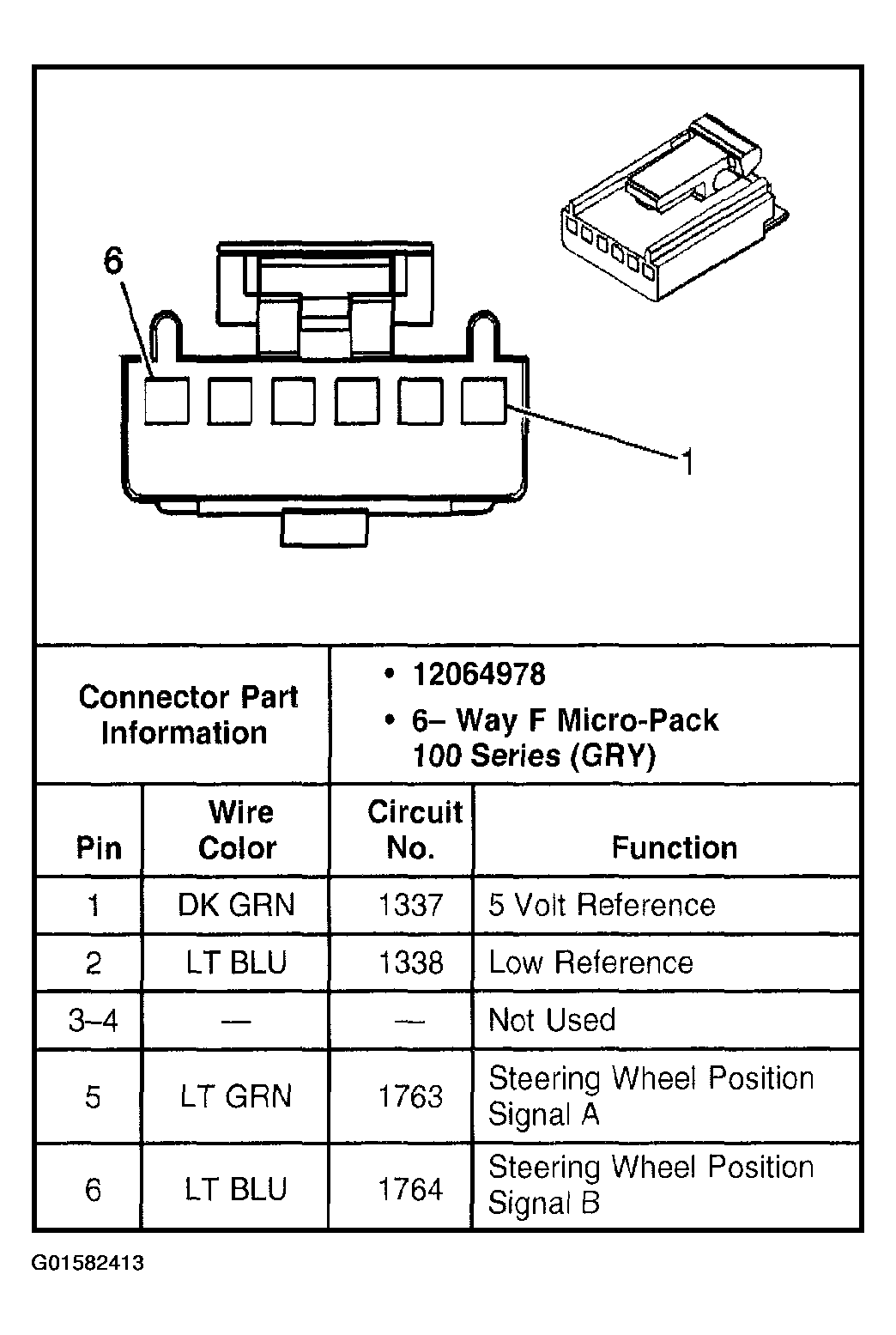

Fig 4: Steering Wheel Position Sensor (w/JL4)

Courtesy of GENERAL MOTORS CORP.

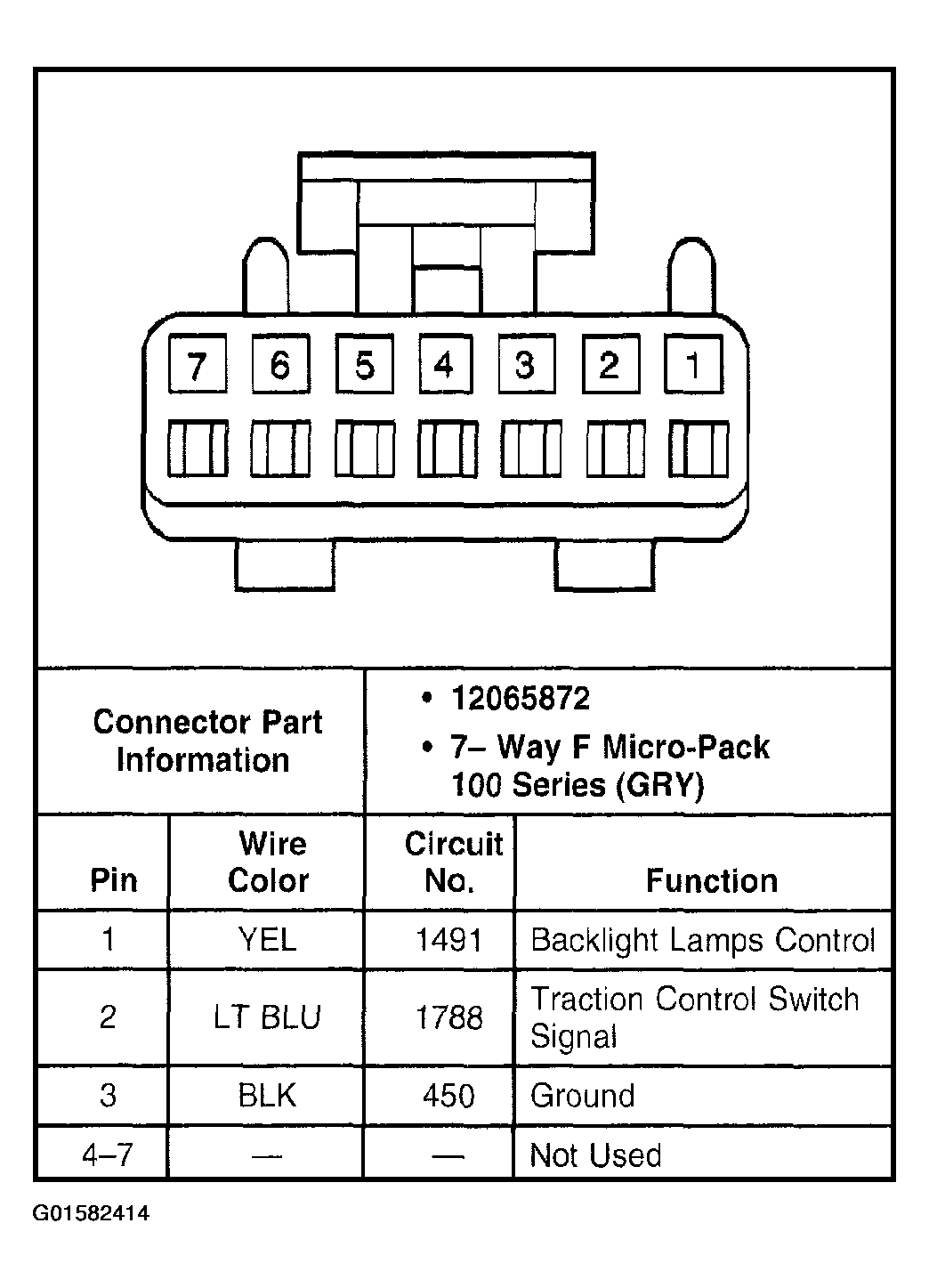

Fig 5: Traction Control Switch (w/NW9)

Courtesy of GENERAL MOTORS CORP.

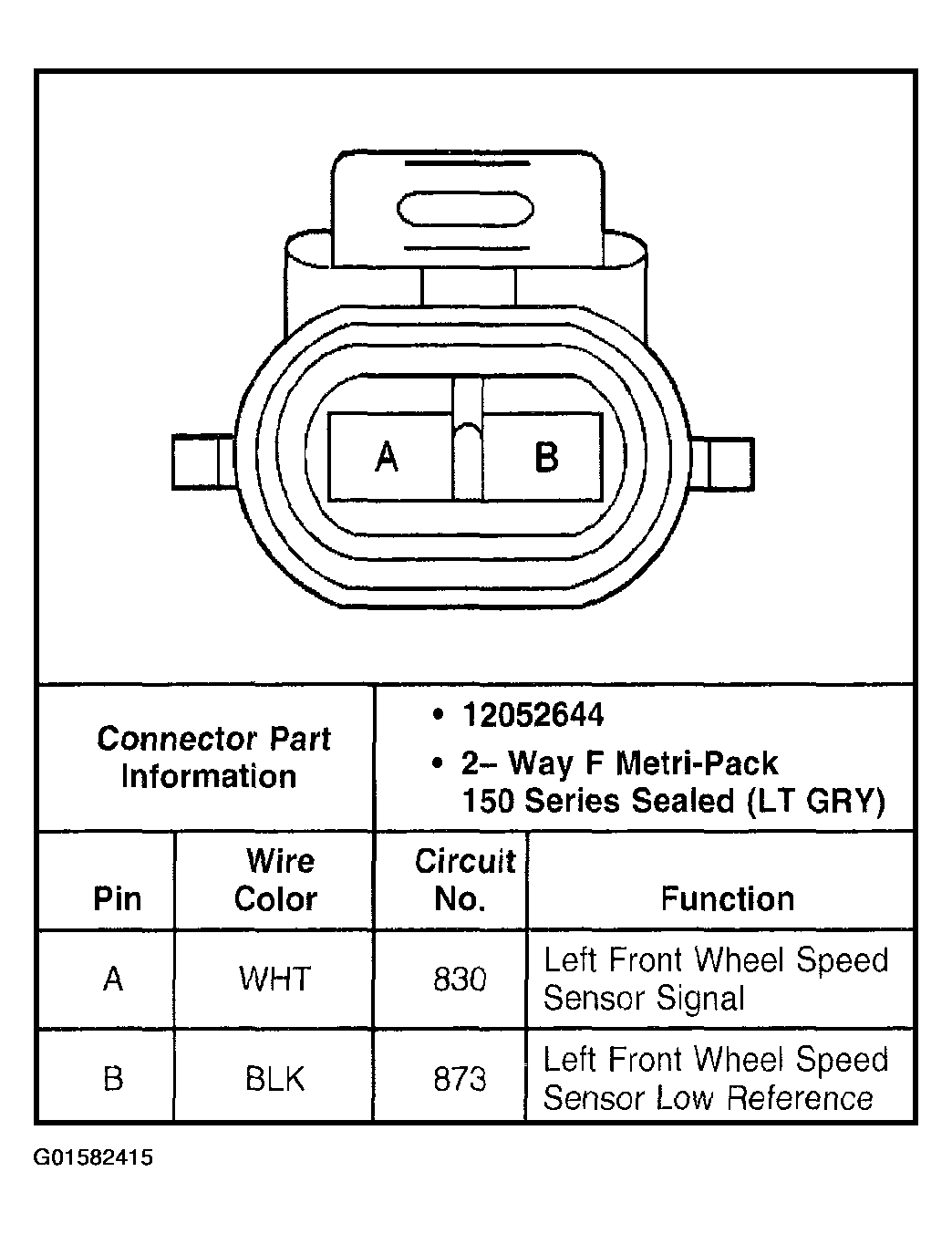

Fig 6: Wheel Speed Sensor (WSS) - LF

Courtesy of GENERAL MOTORS CORP.

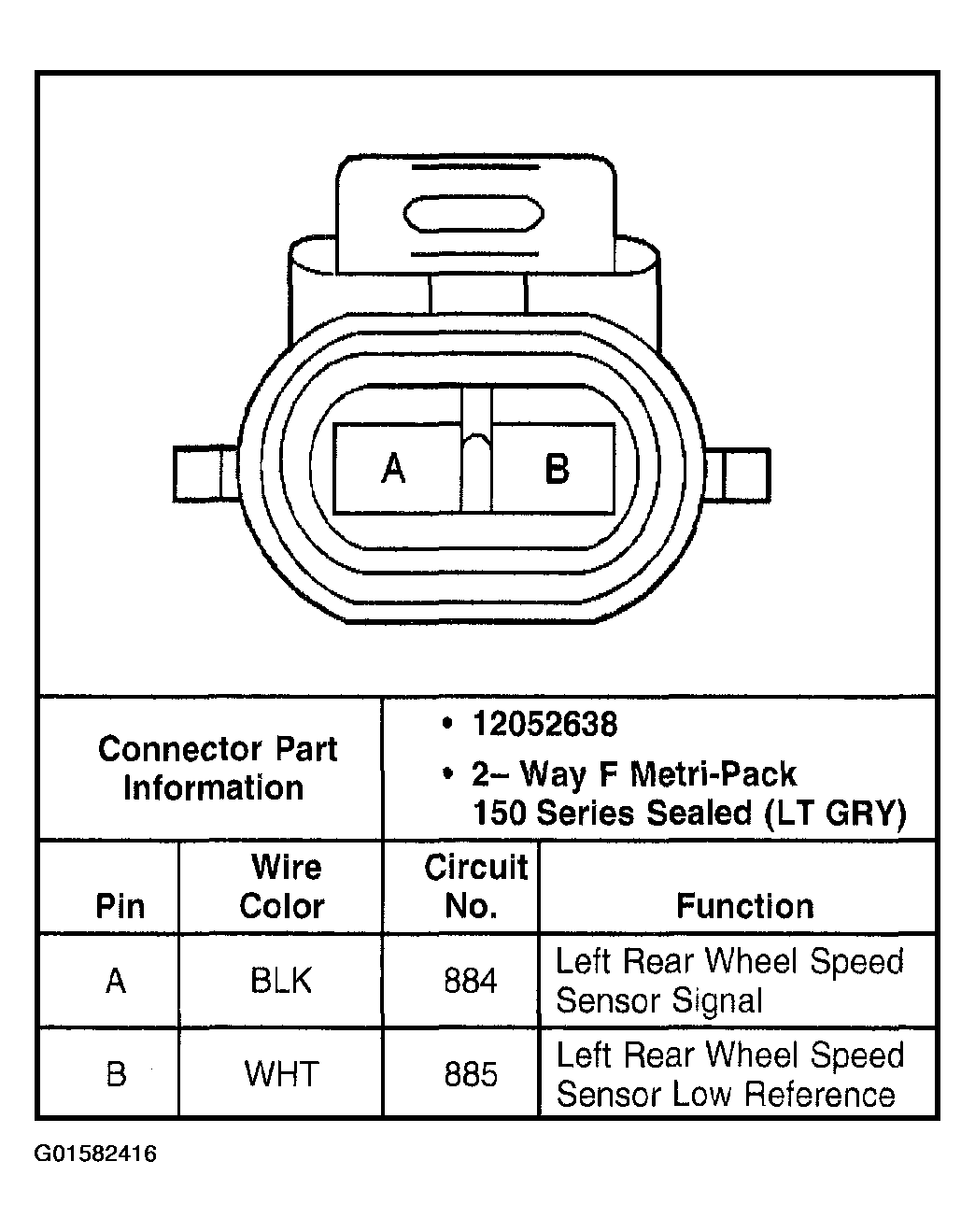

Fig 7: Wheel Speed Sensor (WSS) - LR

Courtesy of GENERAL MOTORS CORP.

Fig 8: Wheel Speed Sensor (WSS) - RF

Courtesy of GENERAL MOTORS CORP.

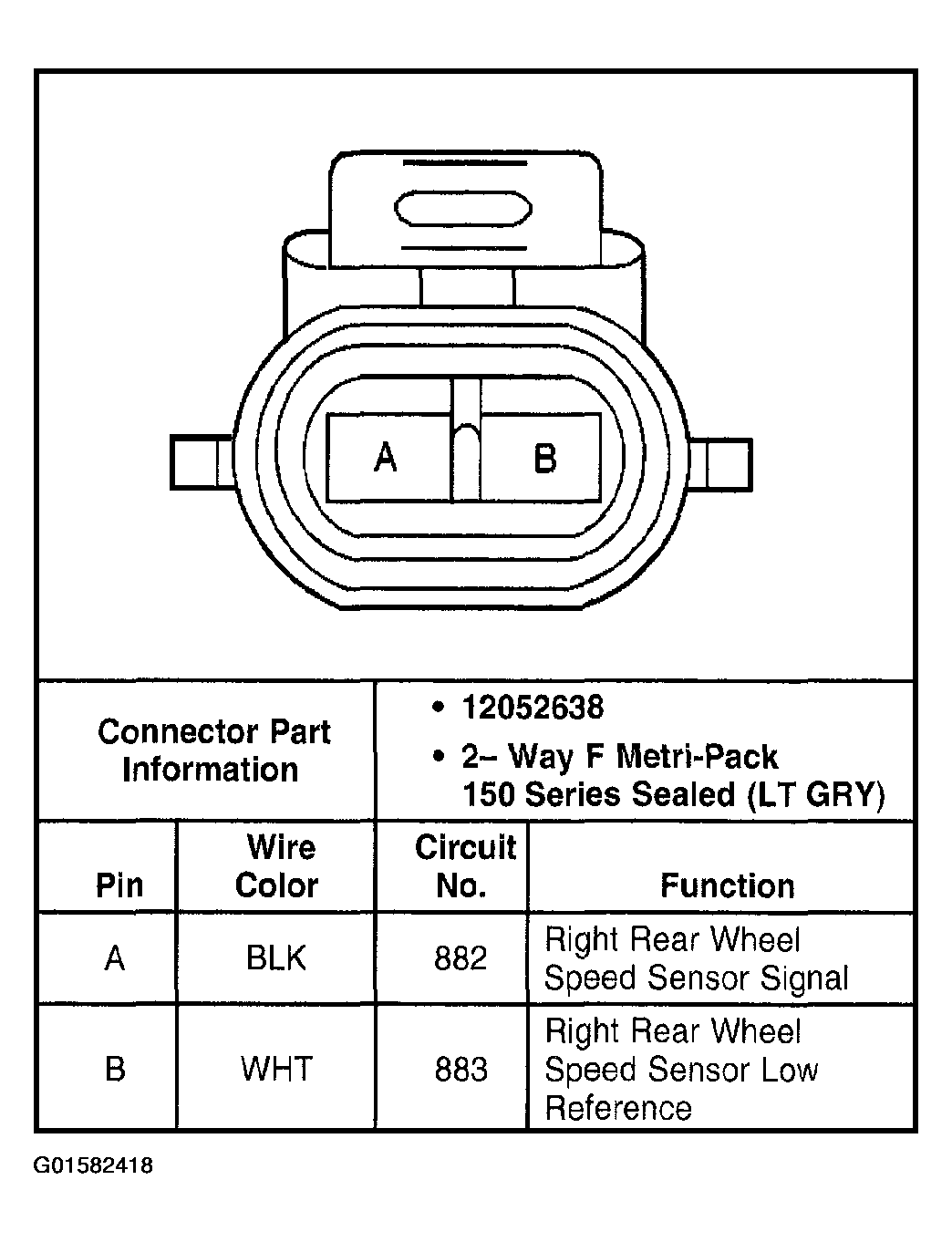

Fig 9: Wheel Speed Sensor (WSS) - RR

Courtesy of GENERAL MOTORS CORP.

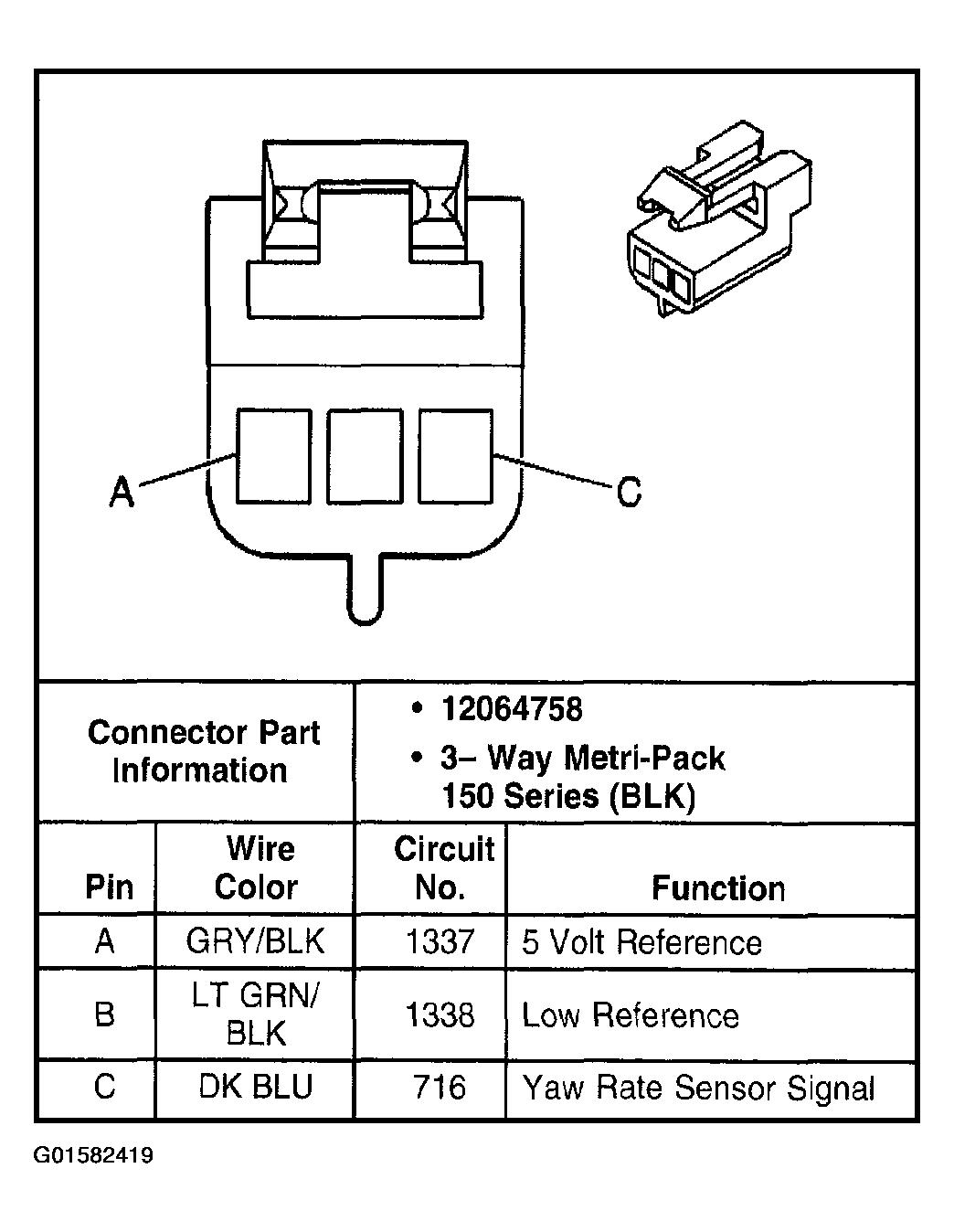

Fig 10: Yaw Rate Sensor (w/JL4)

Courtesy of GENERAL MOTORS CORP.
