Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radio antenna module to the roof beam, ensuring that the alignment tab is properly located.
  2. Install radio module retaining fastener.
    CAUTION: Refer to FASTENER NOTICE .

    Tighten

    Tighten the radio module retaining fasteners to 9 N.m (80 lb in).

  3. Connect the electrical connectors to the radio antenna module.
  4. Install the headliner. Refer to HEADLINER REPLACEMENT (WITH SUNROOF) or HEADLINER REPLACEMENT (WITHOUT SUNROOF) .

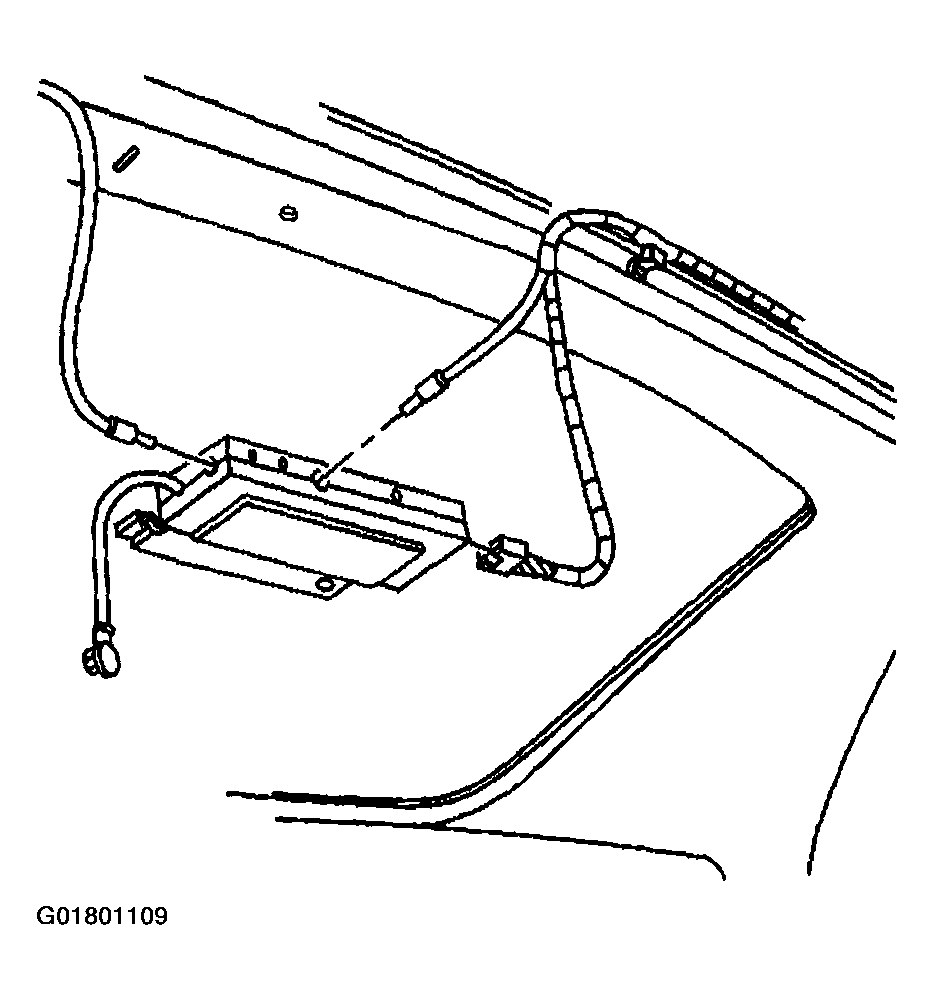

    Fig 1: Installing Antenna Module
    G01801109Courtesy of GENERAL MOTORS CORP.
