Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the CD player into the mounting bracket.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the fasteners in order to secure the CD player to the bracket.

    Tighten

    Tighten the fasteners to 2 N.m (18 lb in).

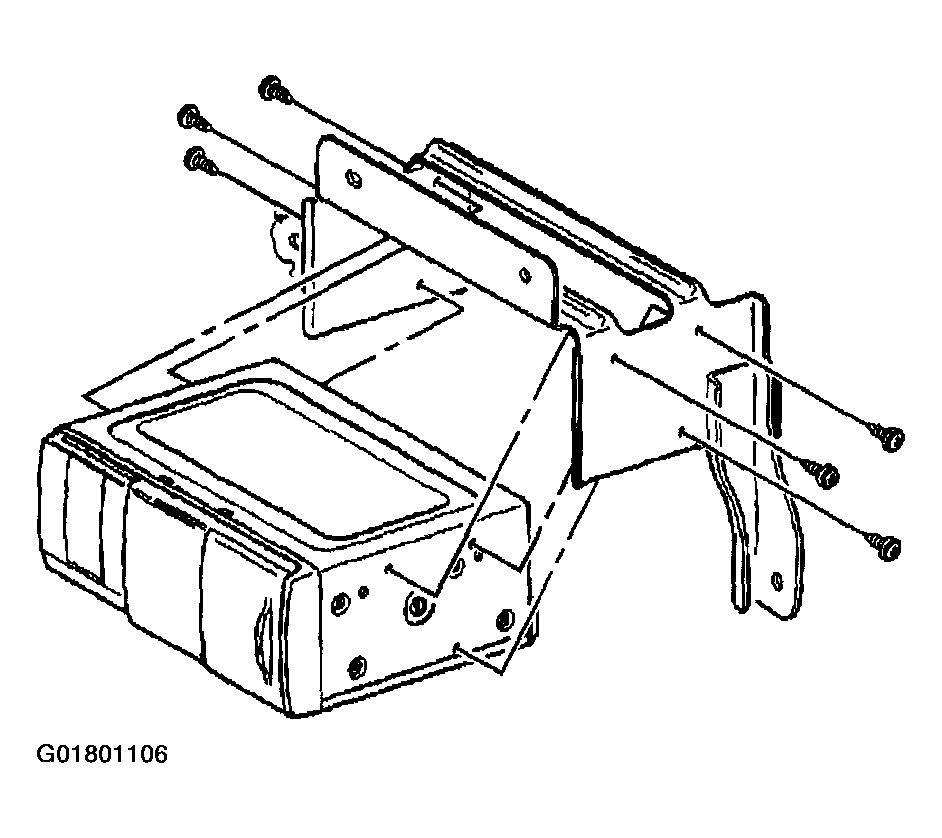

    Fig 1: Installing CD Player To Bracket
    G01801106Courtesy of GENERAL MOTORS CORP.
  3. Position the CD player and bracket into the rear compartment.
  4. Connect the electrical connectors.
  5. Install the fasteners in order to secure the rear compartment CD player and bracket to the vehicle.

    Tighten

    Tighten the rear compartment CD player bracket fasteners to 9 N.m (80 lb in).

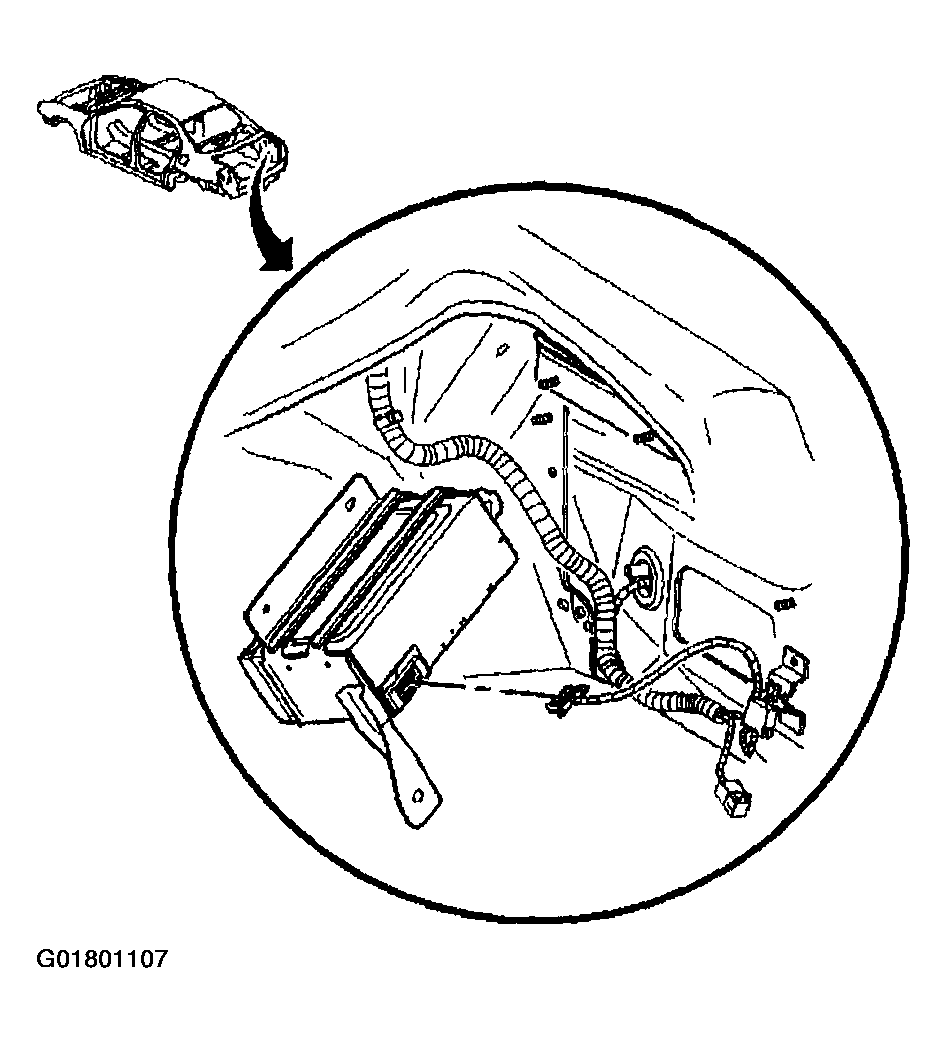

    6. Fig 2: Installing CD Mounting Bracket
    G01801107Courtesy of GENERAL MOTORS CORP.
  6. Install the rear compartment trim. Refer to COMPARTMENT TRIM PANEL REPLACEMENT--REAR .
  7. Close the rear compartment deck lid.
