Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before replacing the Dash Integration Module (DIM), record the personalization settings to transfer to the new module (if they are available).
  2. Remove the right closeout/ insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT .
  3. Remove the DIM from the bracket by releasing the tab behind the module.
  4. Disconnect the electrical connectors (1) from the DIM (2).

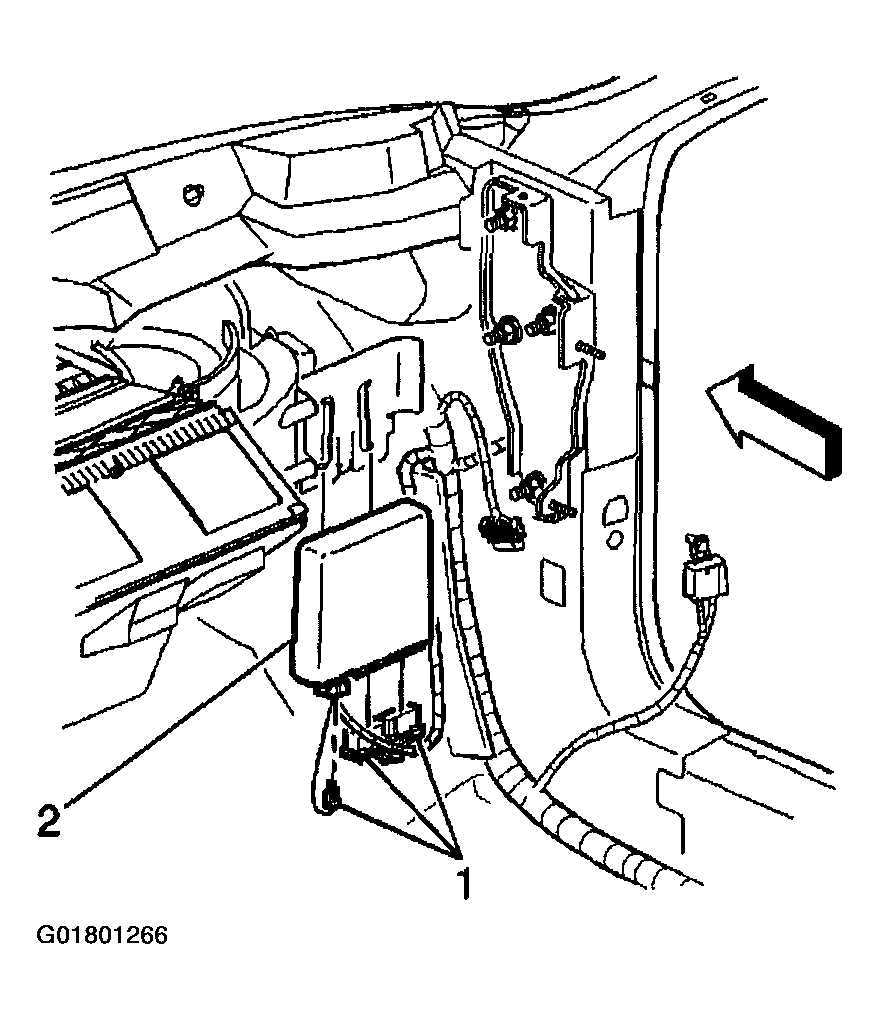

Fig 1: Disconnecting DIM Electrical Connectors
