Radiator Installation Note
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

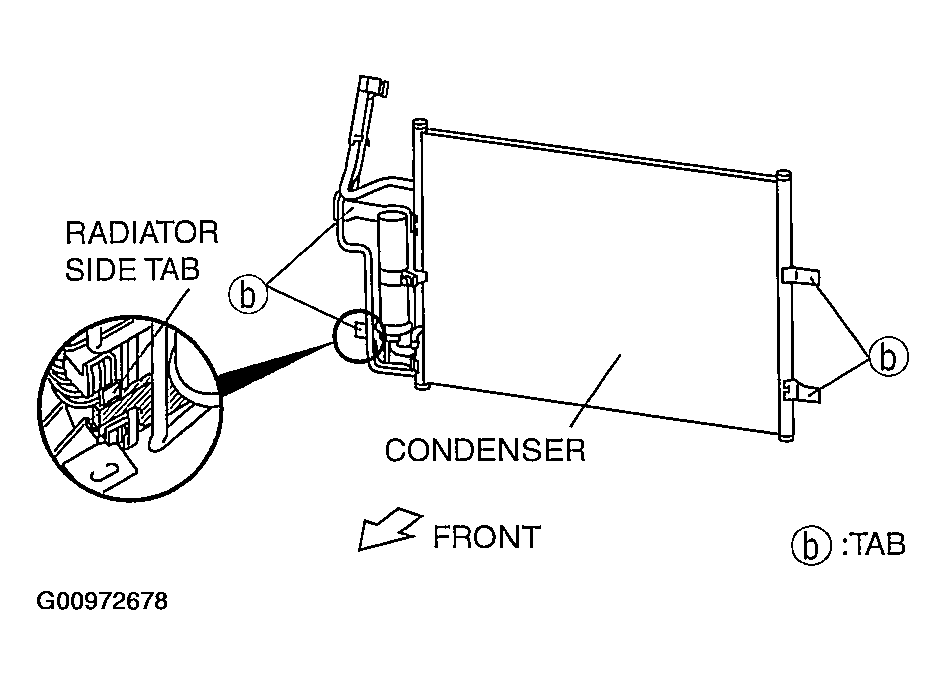

- Install the condenser to the radiator by aligning lower side tab b with the radiator side tab, install upper tab b, then install lower side tab b.
- Install the radiator.
Courtesy of MAZDA MOTORS CORP.
