Sensor Clamp Assembly Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Attach the sensor clamp as shown in the figure.

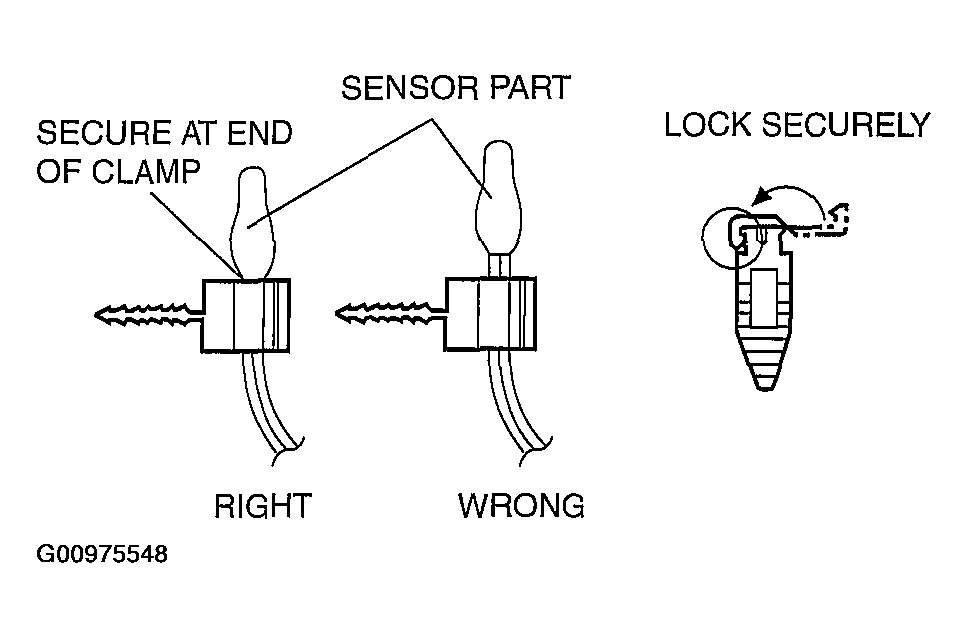

    Fig 1: Attaching Sensor Clamp
    G00975548Courtesy of MAZDA MOTORS CORP.
