Receiver/Drier Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Discharge the refrigerant from the system. See REFRIGERANT RECOVERY . See REFRIGERANT CHARGING .
  3. Remove the under cover.
    CAUTION:
    • If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fitting after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.
  4. Remove the receiver/drier. Do not allow compressor oil to spill.
  5. Install in the reverse order of removal.
  6. Perform the refrigerant system performance test. See REFRIGERANT SYSTEM PERFORMANCE TEST .

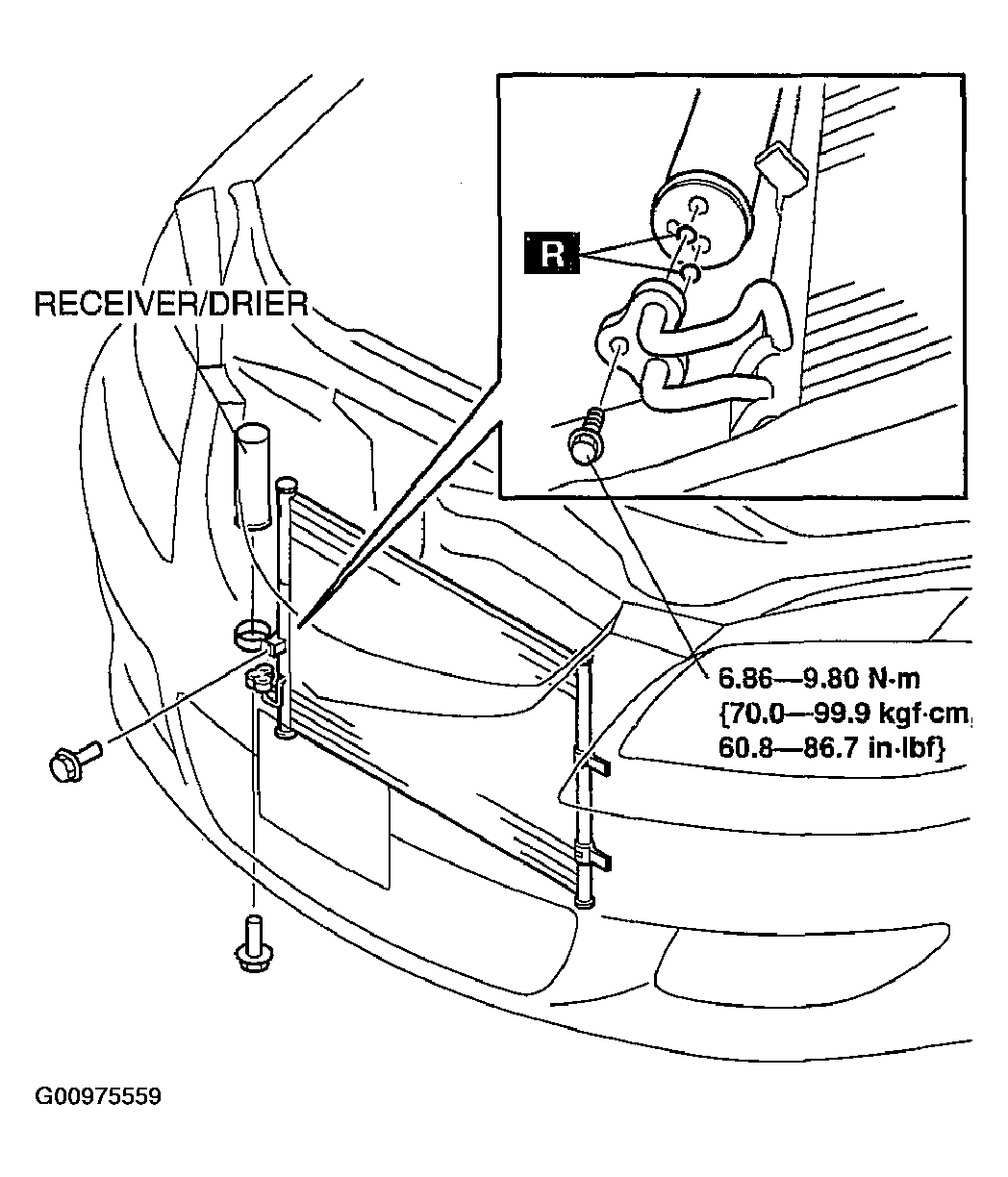

    Fig 1: Receiver/Drier With Torque Specifications
    G00975559Courtesy of MAZDA MOTORS CORP.
