Blower Case Installation Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

If not replacing the blower case, replace the adhesive polyurethane on the fresh-air inlet of the blower case.
CAUTION:
- To adhere new polyurethane properly, be sure to remove the adhesive agent and adhesive polyurethane completely.
NOTE:
- If the blower case is removed, the adhesive polyurethane can be damaged. Damaged adhesive polyurethane could cause abnormal noise or other malfunctions, therefore replace it.

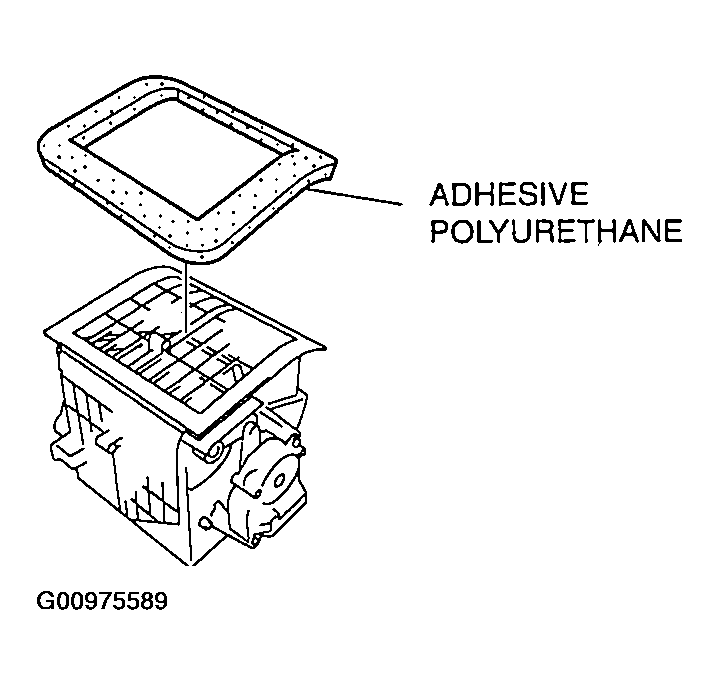

Fig 1: Replacing Adhesive Polyurethane On Fresh-Air Inlet Of Blower Case
Courtesy of MAZDA MOTORS CORP.
Insert the screw into the blower case and install the case to the A/C unit.

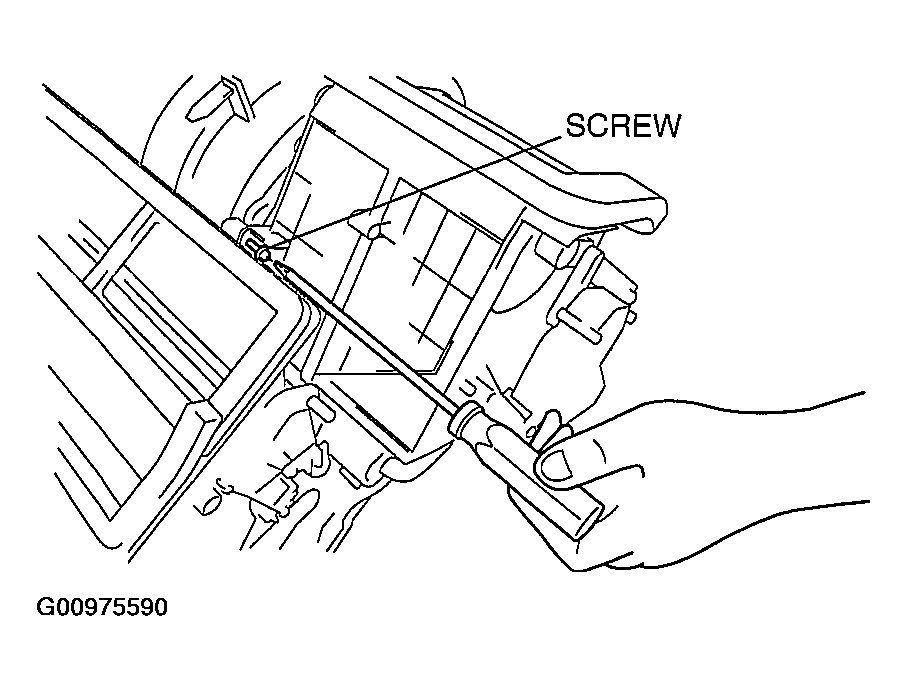

Fig 2: Installing Case To A/C Unit
Courtesy of MAZDA MOTORS CORP.
