SST Installation Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Align the SST (49 B061 015) guide with the sirocco fan clip and insert the SST (49 B061 015) tabs (3 ) into the three set holes on the blower motor.

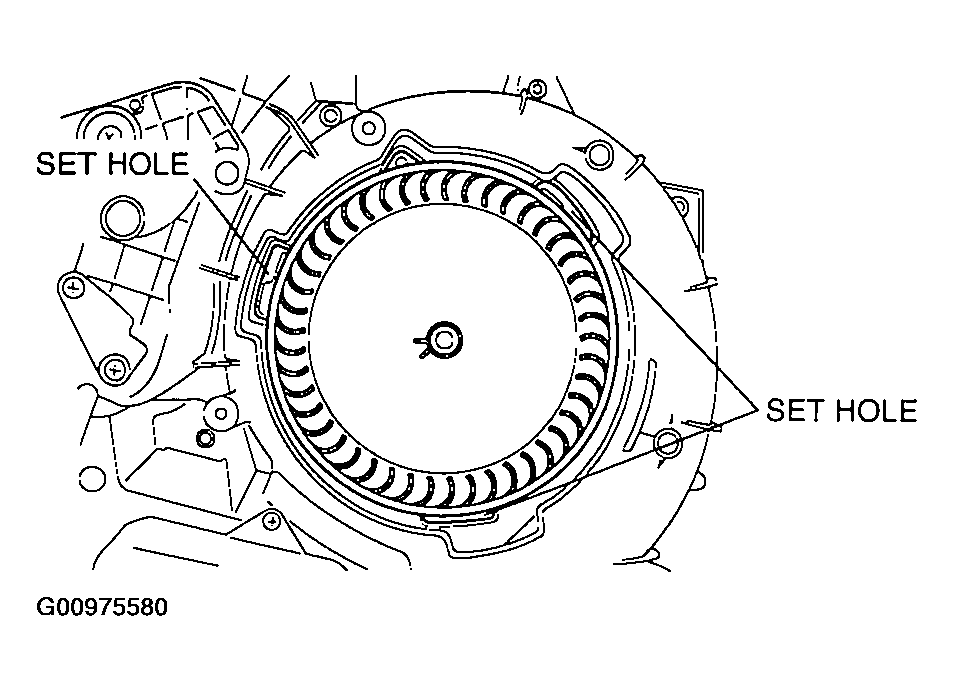

Fig 1: Identifying Set Holes On Blower Motor
Courtesy of MAZDA MOTORS CORP.

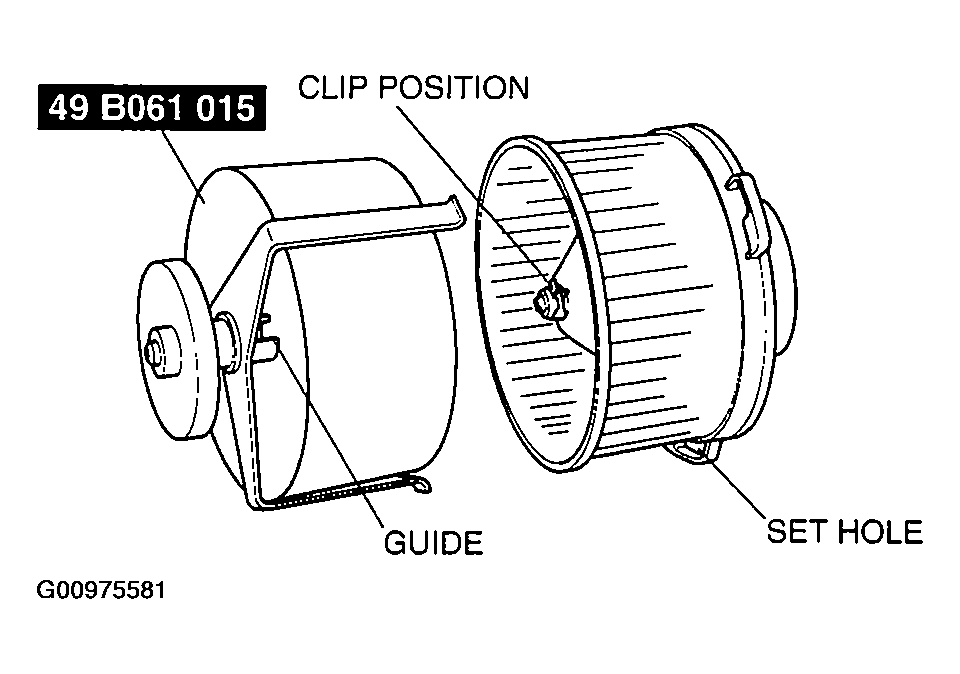

Fig 2: Aligning SST Guide With Sirocco Fan Clip
Courtesy of MAZDA MOTORS CORP.
Rotate the SST (49 B061 015) clockwise to lock the SST and blower motor.

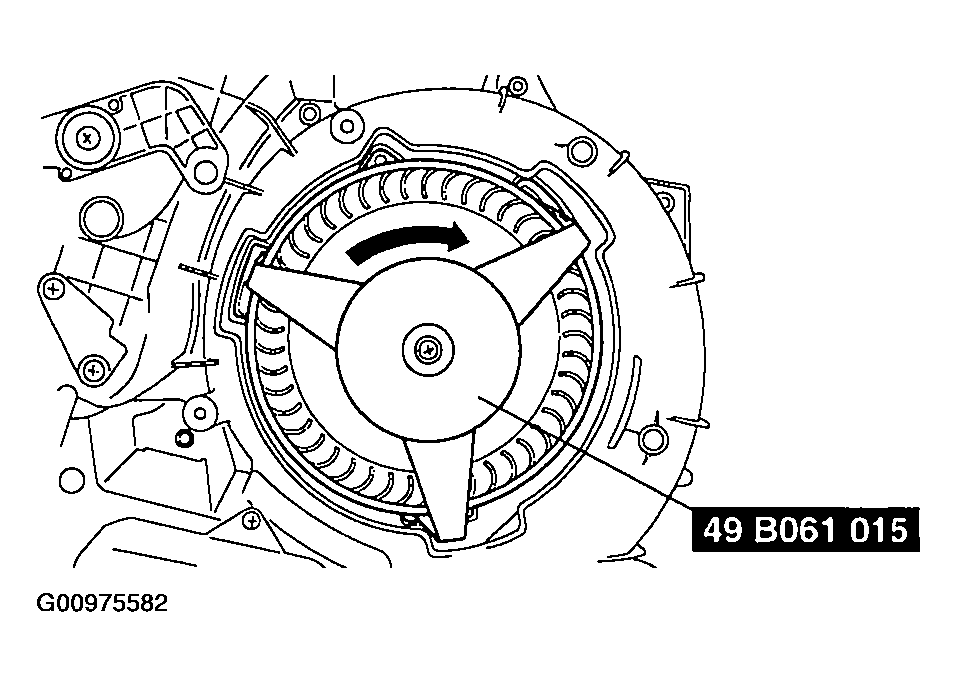

Fig 3: Locking SST & Blower Motor
Courtesy of MAZDA MOTORS CORP.
