Fan Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the climate control unit.
Verify that the continuity between the fan switch terminals is as indicated in the figure.
- If there is any malfunction, replace the fan switch.

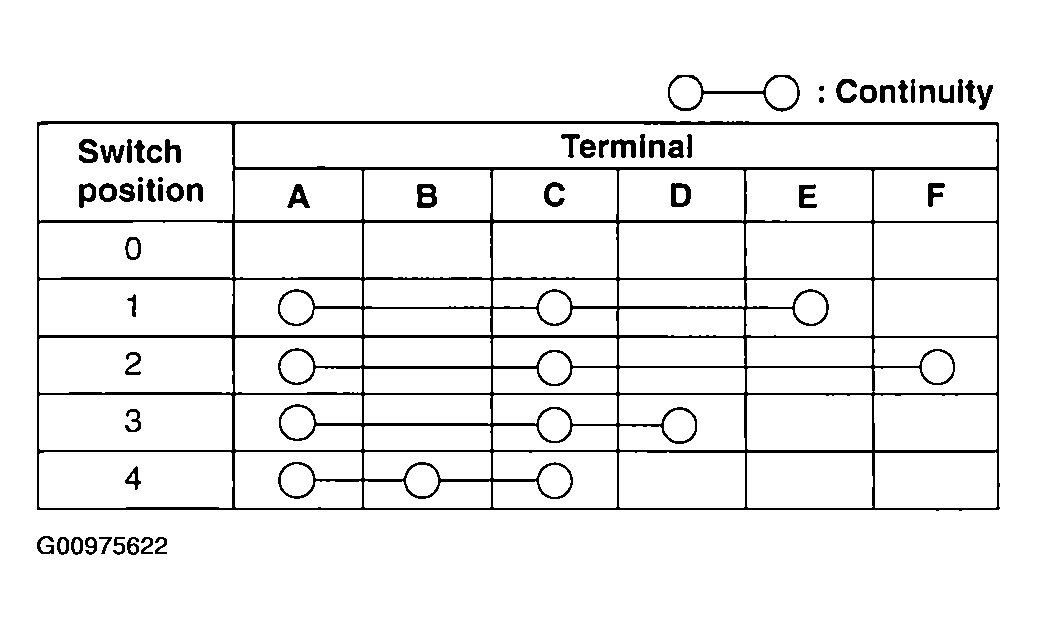

Fig 1: Fan Switch Continuity Check Specifications
Courtesy of MAZDA MOTORS CORP.

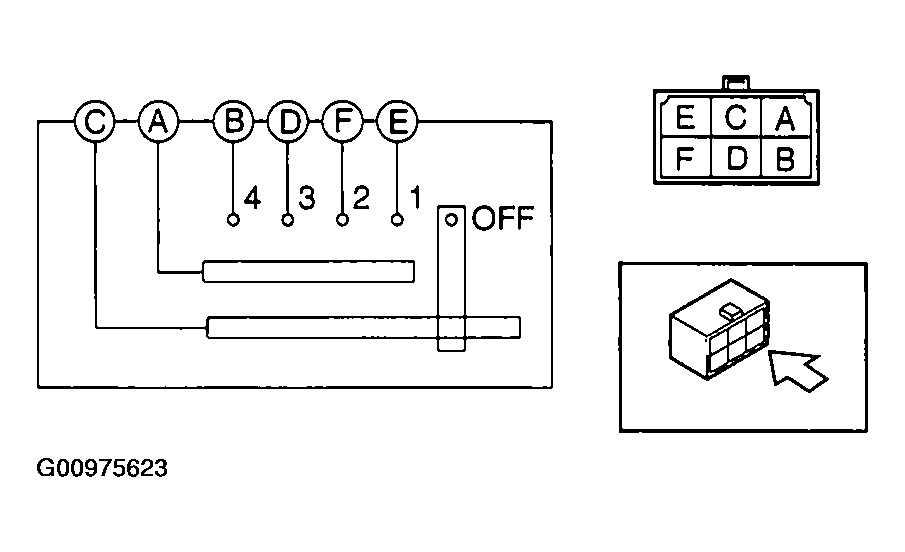

Fig 2: Identifying Fan Switch Terminals
Courtesy of MAZDA MOTORS CORP.
