Resistor Inspection
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

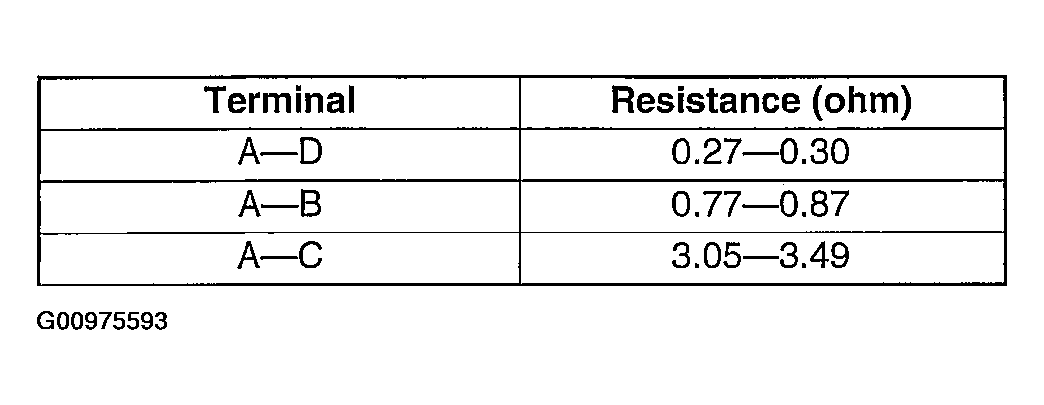

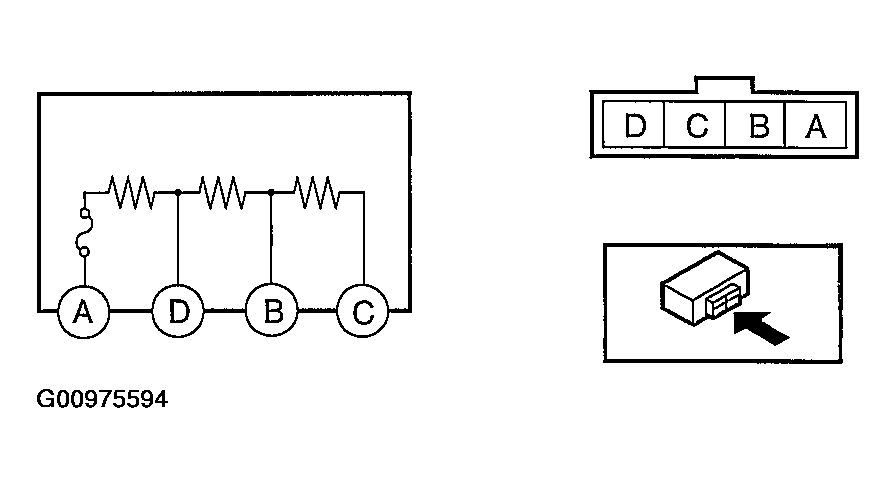

- Verify that the resistance between the resistor terminals is as shown in the figure.
- If there is any malfunction, replace the resistor.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
