Cover Removal Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Pull the cover (upper or lower module) outward, detach clip A from the center panel, and then remove the cover.

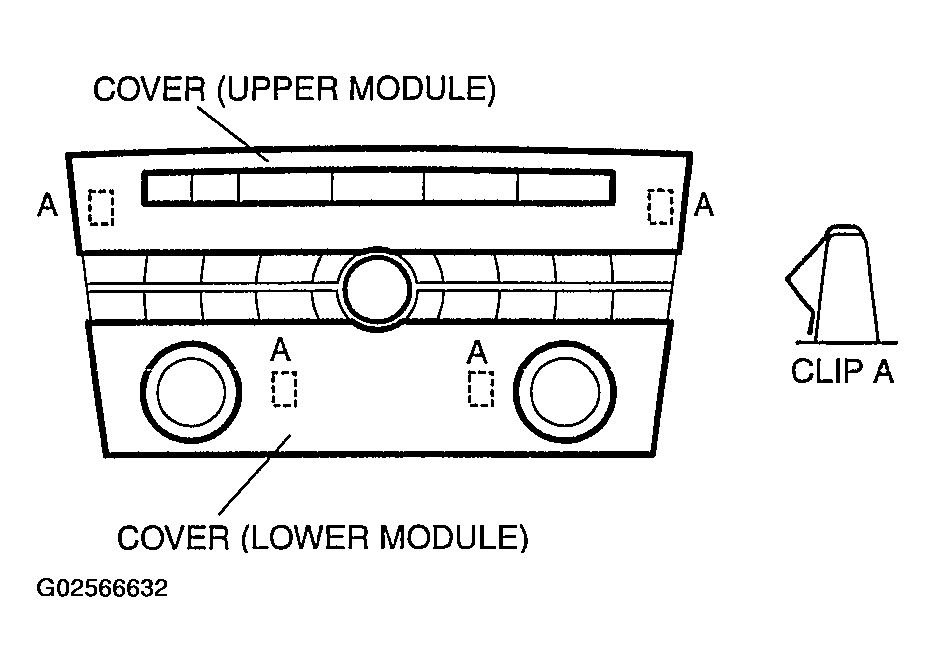

Fig 1: Removing Module Cover
Courtesy of MAZDA MOTORS CORP.
